Multitech MultiVOIP 400 MVP400 Quick Start Manual page 27

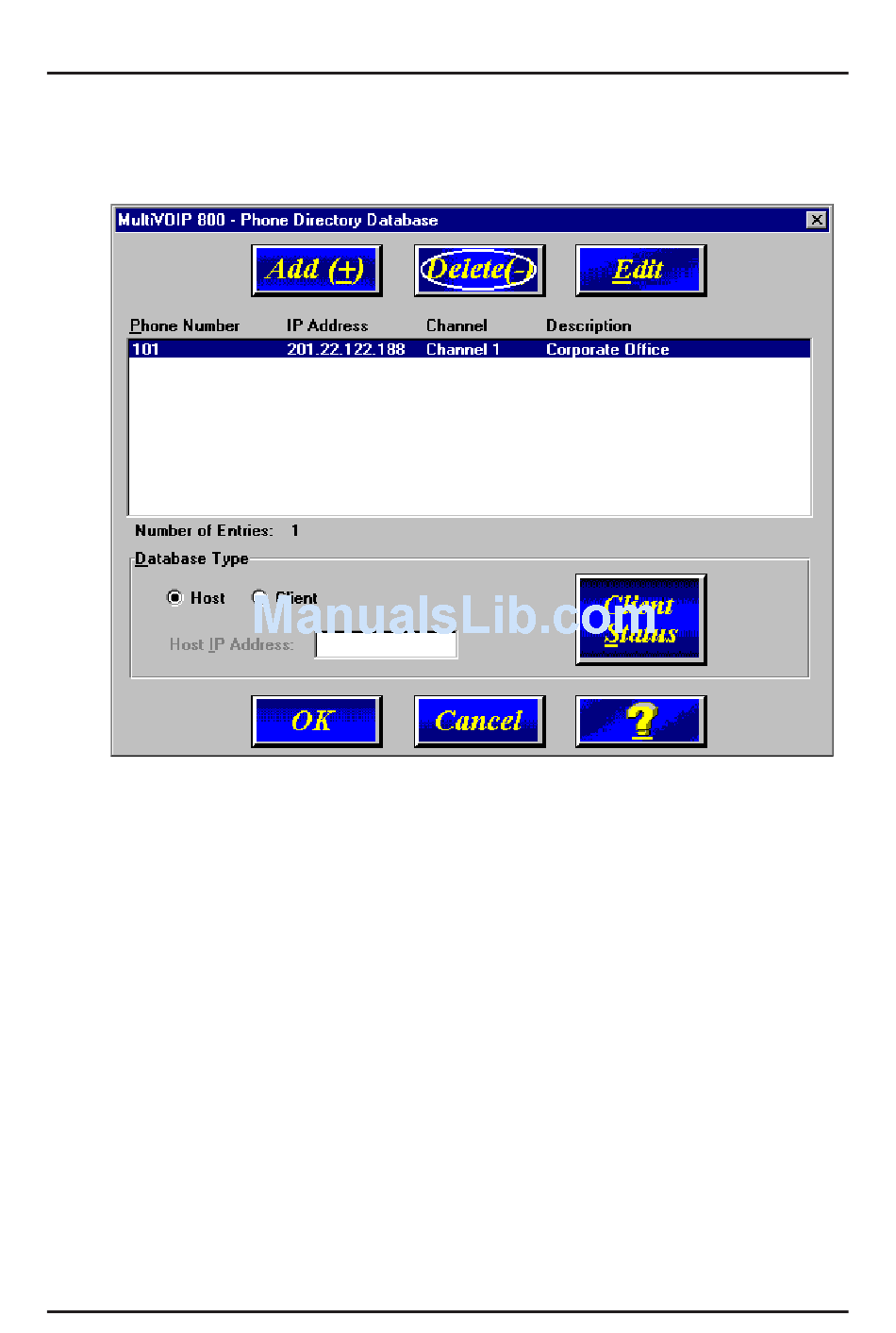

30. Click OK and you are returned to the Phone Directory
Database dialog box, which now includes phone number
101 with its IP address, channel number, and description.
31. Click Add and the Add/Edit Phone Entry dialog box
displays again.
32. Enter the phone number for the remote MultiVOIP in the
Station Information group Phone Number box. For
example, 201.
33. Enter a description for the remote MultiVOIP phone
number for Channel 1 in the Description box.
Note: If the remote MultiVOIP is located behind a proxy
server that uses a dynamically assigned IP address, select
Dynamic (disabling Static IP Address) and leave the IP
Address box blank. The Host MultiVOIP will learn the IP
address when it is contacted by the remote MultiVOIP.
34. Enter the IP address of the remote MultiVOIP in the IP
Address box in the MultiVOIP Identification group. For
example, 202.56.39.100.
Software Installation
27
