MultiVOIP Quick Start Guide
The IP address is your unique LAN IP address, and the
Gateway address is the IP address of the device
connected to the Internet/Intranet.
Click OK when you are finished.

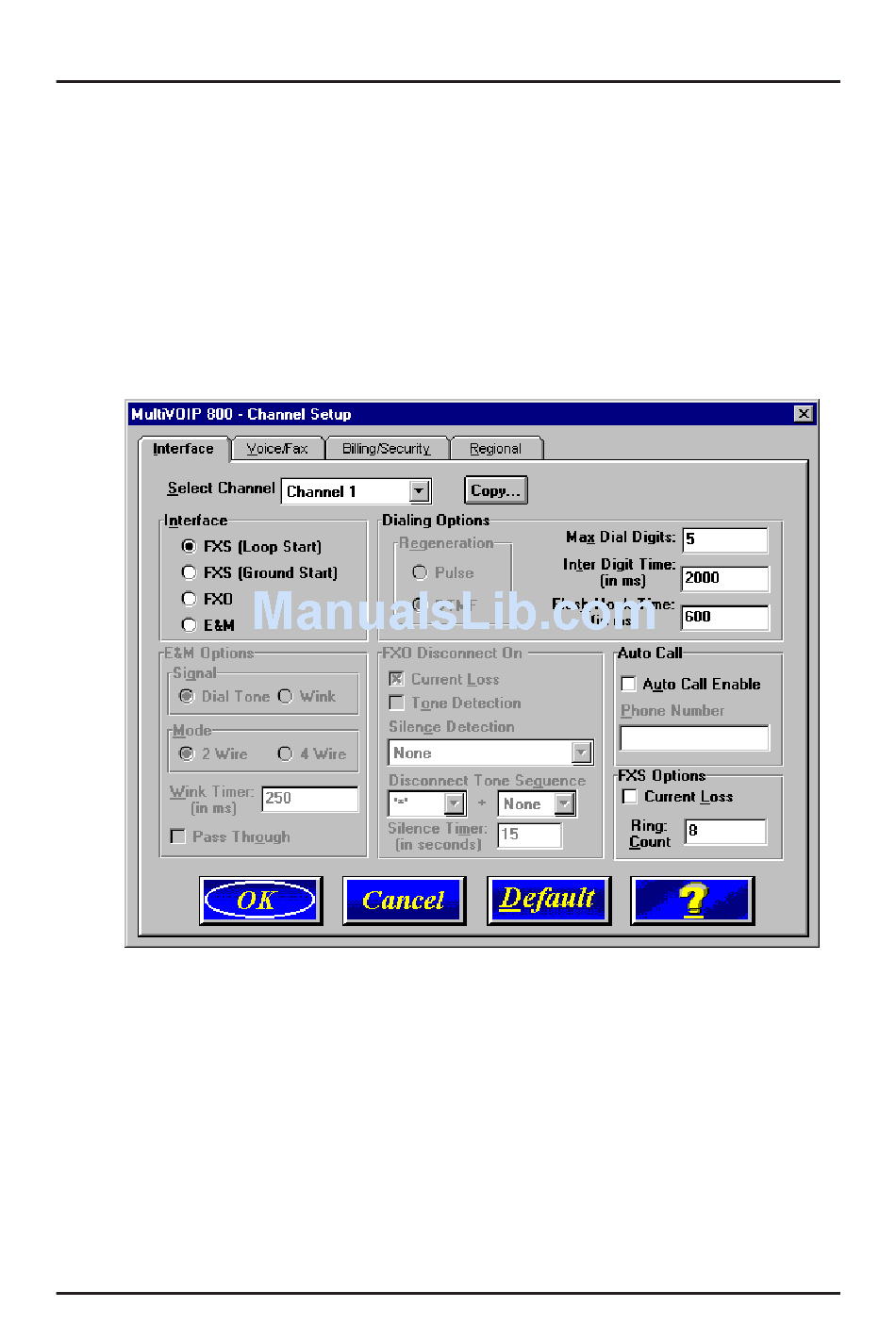

13. The Channel Setup dialog box displays. The Channel
Setup dialog boxes define the channel interface, voice
coder, fax parameters, and regional telephone parameters
for each channel.
Configure each channel for the type of interface you are
connecting to. Channel 1 displays by default in the Select
Channel list. To change the channel number, select the
channel number you want to configure from the Select
Channel list.
14. The Interface group defaults to FXS (Loop Start). Select
the interface option to correspond to the interface type
being connected to the Voice/Fax connector on the back
panel of the MultiVOIP.
18
