Multitech MultiVOIP 400 MVP400 Quick Start Manual page 31

Click Yes.

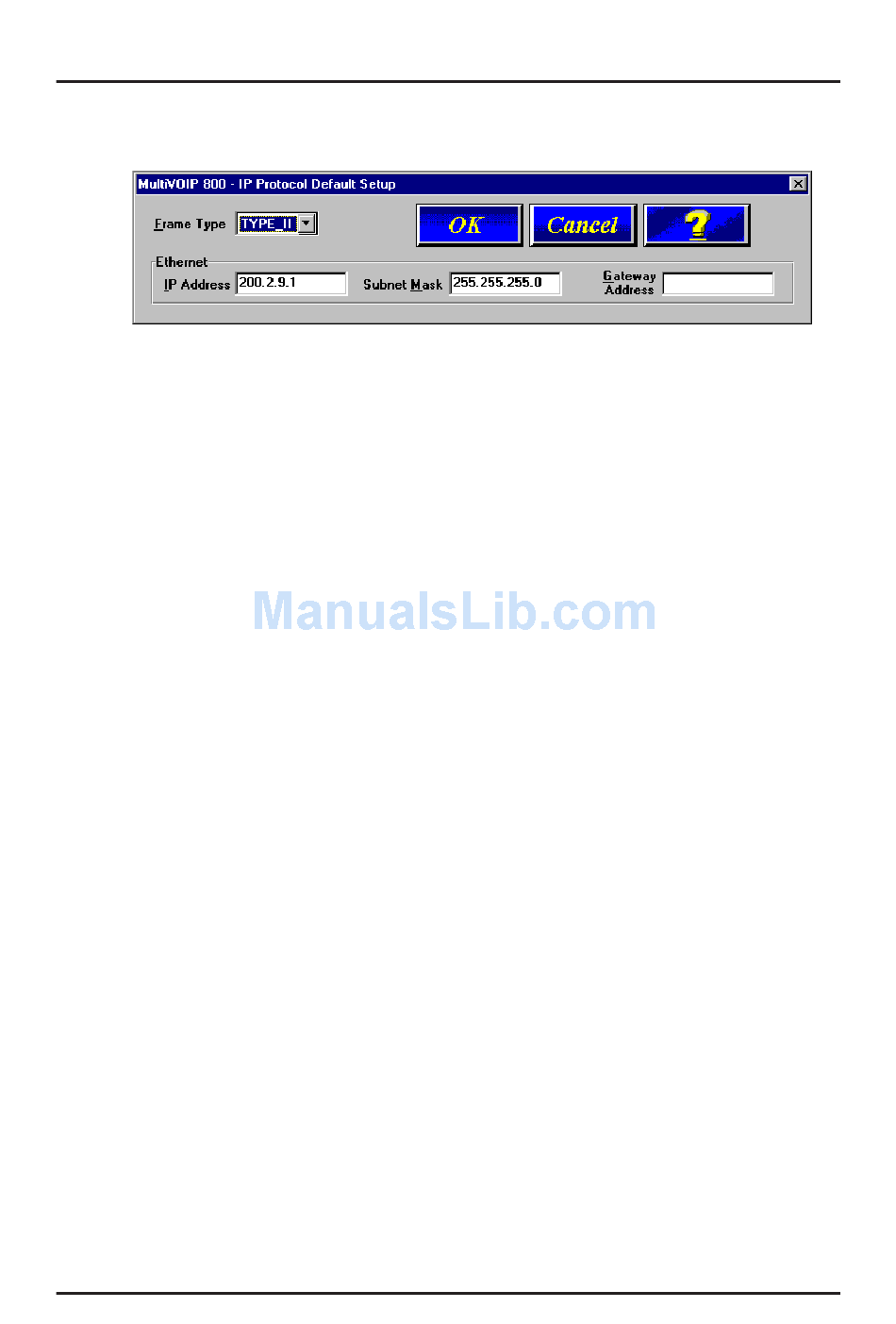

3. The IP Protocol Default Setup dialog box displays.
The default Frame Type is TYPE_II. If this does not match
your IP network, select the Frame Type from the Frame
Type list. The Frame Type choices are TYPE_II and SNAP.
4. In the Ethernet group, enter the IP Address and IP Mask.
In the Gateway Address, enter the gateway IP address
for the client unit.
The IP address is your unique LAN IP address, and the
Gateway address is the IP address of the device
connected to the Internet/Intranet.
Click OK when you are finished.
Software Installation
31
