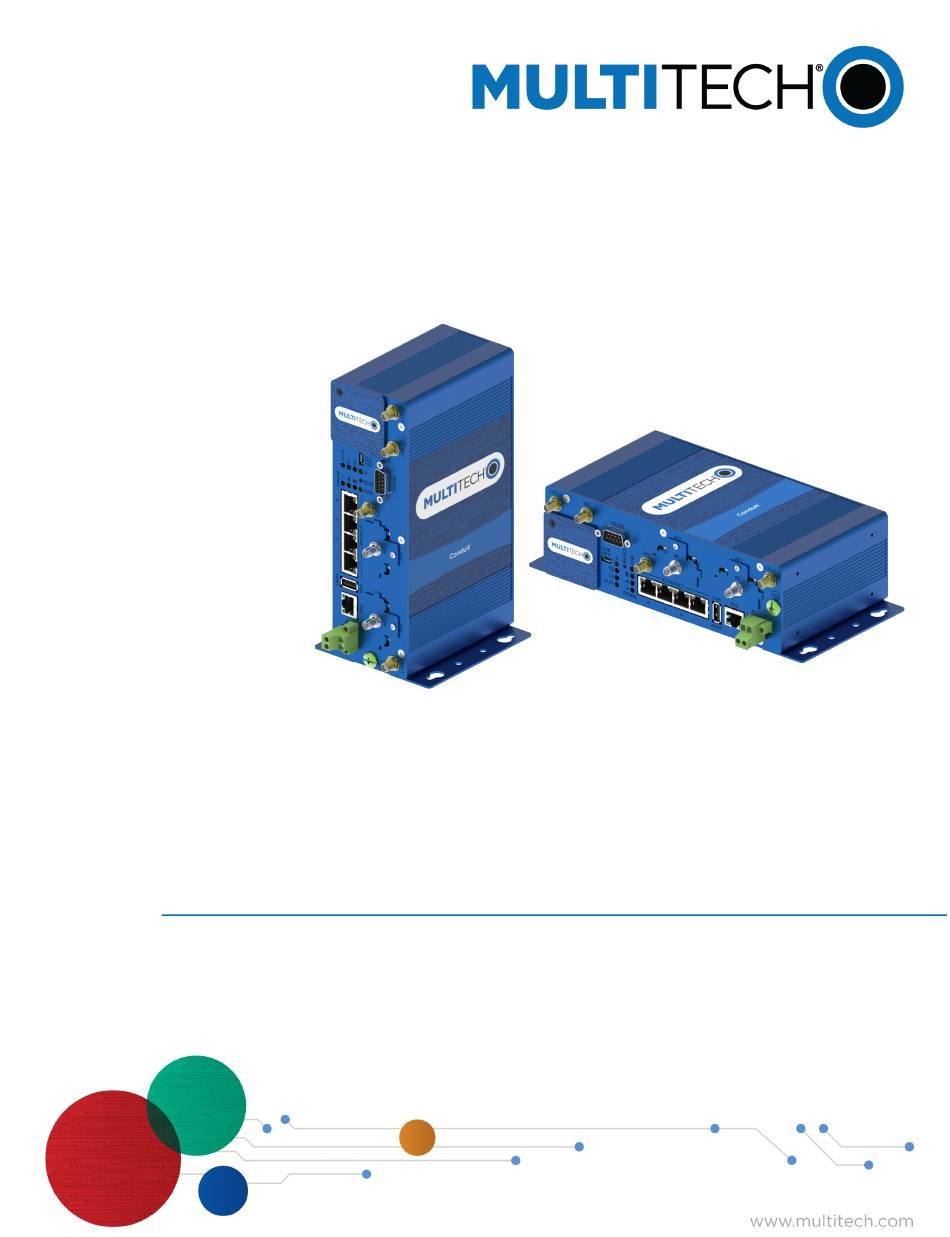

- Page 1 ® Conduit 300 Series IoT Programmable Gateway MTCDT3AC-L4G1/-EN Hardware Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
Antenna Specifications.............................. 19 LoRa Antenna ................................19 LoRa Antenna Specifications ............................ 19 GPS Antenna ................................19 MultiTech Ordering Information..........................20 GPS Antenna Specifications ............................20 Chapter 4 – Setting up and Configuring the Device ....................21 Install and Connect Hardware............................. 21 Installing a Micro SIM Card ............................ - Page 4 CONTENTS Chapter 5 – Regulatory & Safety Information ......................27 47 CFR Part 15 Regulation Class A Devices ......................... 27 FCC Interference Notice .............................. 27 FCC Notice ................................... 27 FCC Grant Information ..............................28 Industry Canada Class A Notice ..........................30 Industry Canada Grant Information..........................
-
Page 5: Chapter 1 - Product Overview
API Developer Guide You can use the Conduit API to manage configurations, poll statistics, and issue commands. Documentation is available on the MultiTech Developer Resources website at: http://www.multitech.net/developer/software/aep/conduit- aep-api/. Quectel AT Commands... -
Page 6: Product Kit Contents
PRODUCT OVERVIEW Product Kit Contents Your Product Kit typically includes the following (varies with model): Device 1 - Conduit 300 (MTCDT3AC) Power Supply 1 - 100-240V 12V-2.0 A power supply and cable with removable blades OR 1 - POE connection (NOTE: POE power source is user-supplied) with 10/100/1000TX speed 1 - NAM blade/plug... -
Page 7: Product Build Options
PRODUCT OVERVIEW Product Build Options Product Description Region MTCDT3AC-EN-A300HE- Ethernet only Programmable Gateway with GNSS, Wi-Fi/BT, and AU, EU, UK, Accessories MTCDT3AC-EN-A300GE- Ethernet only Programmable Gateway with GNSS and Accessories AU, EU, UK, MTCDT3AC-EN-A31UHE- Ethernet only Programmable Gateway 8-channel, 915 MHz , with AU, EU, UK, GNSS, Wi-Fi/BT, and Accessories MTCDT3AC-EN-A31UGE-... -
Page 8: Chapter 2 - Specifications
SPECIFICATIONS Chapter 2 – Specifications MTCDT3AC-L4G1 Specifications Category Description General Performance 3GPP Rel. 11 LTE UMTS/HSPA+ GSM/GPRS/EDGE TCP/IP Functions FTP, SMTP, SSL, TCP, UDP LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 Frequency Bands (MHz) LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 Speed Data Speed LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL) UMTS: DC-HSDPA: Max 42Mbps (DL) - Page 9 SPECIFICATIONS Category Description Connectors 1 USB device port with micro B type connector 4 RJ-45 Ethernet port (1-4) with Gigabit Ethernet 10/100/1000TX speed (Ethernet switch) 1 USB 2.0 Type A Host Port, 500 mA maximum power draw 1 Serial Port (RS-232/422/485) 2 MTAC Accessory Card slots, and if populated with LoRa card(s), 1 or 2 LoRa (RF) Antenna connectors (varies with model) POE (Power Over Ethernet) port -Gigabit Ethernet capable...
-
Page 10: Lora Specifications
SPECIFICATIONS *UL Listed @ 40° C, limited by AC power supply. UL Recognized @ 65° C when used with DC power cable. UL Certification does not apply or extend to use in outdoor applications. Optional power must be UL Listed ITE power supply marked LPS or Class 2 rated with rating between 12-57 VDC minimum of 1A . - Page 11 SPECIFICATIONS Category Description Connectors 1 USB device port with micro Type B connector 4 RJ-45 Ethernet port (1-4) with 10/100/1000TX speed (Ethernet switch) 1 USB 2.0 Type A Host Port, 500 mA maximum power draw 1 Serial Port (RS-232/422/485) 2 MTAC Accessory Card slots, and if populated with LoRa card(s), 1 or 2 LoRa (RF) Antenna connectors (varies with model) POE (Power Over Ethernet) port - Gigabit Ethernet capable DC Power (Terminal Block) connector...
-
Page 12: Lora Specifications
SPECIFICATIONS LoRa Specifications Depending on the model, your device has one or two LoRa radios. If the model number includes A34 or A36, the device has two LoRa radios. Category Description General Standards LoRaWAN 1.0.3 specifications Radio Frequency 915 & 868 MHz ISM Certifications and Compliance EMC and Radio Compliance FCC Part 15A... -
Page 13: Dimensions
SPECIFICATIONS Dimensions ® Conduit 300 Series IoT Programmable Gateway MTCDT3AC-L4G1/-EN Hardware Guide... -
Page 14: Front Panel Connectors
RS-232/RS-422/RS-485 serial connector. AP1, AP2 Slots for MultiTech accessory cards (varies with model). You can install an accessory card in either slot. Both slots can be occupied at one time. For LoRa gateway accessory cards only (varies with model), LoRa antenna connector. -
Page 15: Led Descriptions
SPECIFICATIONS LED Descriptions Front Panel Label Name Description User-defined User-defined. Carrier Detect This LED is on when a cellular data connection is made. Link Status Varies with radio model. STAT Power Status Default condition: LED turns green (solid) when software is fully loaded. Power Solid (constant) green if unit is on indicating that DC power is present. -
Page 16: Power Draw-Mtcdt3Ac-L4G1 W/ Modem, Two Mtac-Lora-H Cards
SPECIFICATIONS Power Draw-MTCDT3AC-L4G1 w/ Modem, Two MTAC-LORA-H Cards Radio Protocol Power Down Callbox Average TX Pulse (Avg) Total Inrush Total Inrush Mode - Connection Measured Amplitude Charge Charge Shutdown -h Idle-No Data Current at Current (mA) Measured in Duration now (mA) (mA) Max Power MilliCoulombs... -
Page 17: Power Draw-Mtcdt3Ac-En W/ No Modem, One Mtac-Lora-H Card
SPECIFICATIONS Power Draw-MTCDT3AC-EN w/ No Modem, one MTAC-LORA-H Card Voltage Power Down Callbox Average Average Total Inrush Total Inrush Mode - Connection Measured Amplitude Charge Charge Shutdown -h Idle-No Data Current at Current (mA) Measured in Duration now (mA) (mA) Max Power MilliCoulombs during... -
Page 18: Chapter 3 - Antenna Information
ANTENNA INFORMATION Chapter 3 – Antenna Information Wieson Antenna Cellular devices were approved with the following antenna: Manufacturer: Wieson Description: LTE GY115HT467-017 Model Number: 11320Y11194A1 MultiTech ordering information: Model Quantity ANLTE2-2HRA ANLTE2-10HRA ANLTE2-50HRA Cellular Antenna Specifications Category Description Frequency Range .069~0.96GHz, 1.71~2.17GHz, 2.3GHz~2.69GHz... -
Page 19: Antenna Specifications
Omni-directional Polarization Linear Connector RP-SMA(M) LoRa Antenna Manufacturer: Pulse Electronics Description: 868-928 MHz RP-SMA Antenna, 8" Model Number: W1063 MultiTech ordering information: Ordering Part Number Quantity AN868-915A-1HRA AN868-915A-10HRA AN868-915A-50HRA LoRa Antenna Specifications Category Description Frequency Range 868-928 MHz Impedance 50 Ohms VSWR <... -
Page 20: Multitech Ordering Information
ANTENNA INFORMATION MultiTech Ordering Information Model Quantity ANGPS-1MM ANGPS-10MM ANGPS-50MM GPS Antenna Specifications Category Description Frequency Range 1575.24 MHz Impedance 50 Ohms VSWR 2.0:1 max Gain 10-30 dBi LNA Current Consumption 40 mA max Noise Figure < 2dB Polarization RHCP Input voltage 3.0V M M 0.2V... -
Page 21: Chapter 4 - Setting Up And Configuring The Device
SETTING UP AND CONFIGURING THE DEVICE Chapter 4 – Setting up and Configuring the Device Install and Connect Hardware To install and cable the device: Disconnect power to the device, if it is connected. Install a Mirco SIM card (3FF). Install a Micro SD card (optional). -
Page 22: Installing A Micro Sd Card
Installing a Micro SD Card You need: Phillips screwdriver Micro SD memory card, user-supplied (see multitech.net for SD card details) To install or replace the Micro SD card: Disconnect power to the device if it is connected. On the front panel, unfasten the screw securing the nameplate and remove it. -
Page 23: Accessory Port (Mcard) Interfaces
Used by all accessory cards. 3.3 VDC 1 Amp supply Used by all accessory cards. For accessory card specifications, regulatory content, and installation information, refer to the appropriate product page: www.multitech.com/brands/multiconnect-mcard. ® Conduit 300 Series IoT Programmable Gateway MTCDT3AC-L4G1/-EN Hardware Guide... -
Page 24: Connecting To The Debug Interface
SETTING UP AND CONFIGURING THE DEVICE Connecting to the Debug Interface You need: Standard USB Micro B cable To connect the debug cable: Disconnect power to the Conduit, if it is connected. On the back of the device housing, locate the USB debug cable connector, labeled SERIAL DEBUG on the far right of the back panel (or if the device is vertical, at the top of the panel). -
Page 25: Resetting The Device
To power up the device: Install the desired MultiTech accessory card or cards into the slots at the back of the device. Refer to the appropriate installation documentation for the accessory card. Note: Some models already have MTAC cards installed. -
Page 26: Din Rail Installation
SETTING UP AND CONFIGURING THE DEVICE DIN Rail Installation The location to mount the DIN rail bracket is on the back panel of the device labeled DIN RAIL BRACKET. You need: Phillips screwdriver Bracket Screws (3) DIN rail mounting bracket DIN rail (user-provided) To install the device on a DIN rail: If connected, disconnect power and all other cables from the device. -
Page 27: Chapter 5 - Regulatory & Safety Information
The MultiTech Conduit is an open embedded development product. Configurations of this product may optionally contain a sub GHz radio technology which MultiTech has certified for compliance with US and Foreign compliance bodies including FCC, R&TTE and others. (e.g. FCC 15.247:2015 & IC RSS-210:2010). -
Page 28: Fcc Grant Information
REGULATORY & SAFETY INFORMATION the radio performance. Accessing or controlling the radio through any means other than the provided binary software will require the user to obtain their own intentional radiator license from the certification body governing their locality, as all pre-certification provided withConduit IP67 Series 200 Base Station. Conduit mDot MTAC-LORA xDot will have been made invalid. - Page 29 REGULATORY & SAFETY INFORMATION Rule Parts Frequency Range Output Watts Frequency Tolerance Emission Designator 782.0 - 782.0 0.4217 0.1 PPM 8M91G7D 782.0 - 782.0 0.2911 0.1 PPM 8M91W7D 779.5 - 784.5 0.4395 0.1 PPM 4M48G7D 779.5 - 784.5 0.309 0.1 PPM 4M49W7D 1860.0 - 1905.0 0.3516...
-
Page 30: Industry Canada Class A Notice
REGULATORY & SAFETY INFORMATION 3, 5, 10, 15, and 20MHz bandwidth modes for LTE Band 2, 4 and 25; and LTE of 1.4 , 3, 5 and 10MHz bandwidth modes for LTE Band 5,12 and 26 (814-824MHz),LTE of 5, 10, 15 and 20MHz bandwidth modes for LTE Band 7, 38 and 41;... -
Page 31: Rf Exposure Results/Résultats D'exposition Humaine Aux Rf
REGULATORY & SAFETY INFORMATION RF Exposure Results/Résultats d’exposition humaine aux RF Type Value/Valeur Compliance Distance/Distance de conformité 5.6 W/m2 200 mm Specificati Issue Frequency Emission Power/Puissance Field Dist. on/Cahiers Number/N Range/Gamme de Designator Strength/I uméro de fréquence /Désignatif ntensité charges la version d’émission de champ... - Page 32 REGULATORY & SAFETY INFORMATION Specificati Issue Frequency Emission Power/Puissance Field Dist. on/Cahiers Number/N Range/Gamme de Designator Strength/I uméro de fréquence /Désignatif ntensité charges la version d’émission de champ RSS132 From/De To/À Min. Max. RSS139 1720.0 1745.0 17M9W7D- 208.0 mW 377.0 mW -- RSS199 1710.7 1754.3...
-
Page 33: Emc, Safety, And Radio Equipment Directive (Red) Compliance
Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be requested at https://www.multitech.com/landing-... -
Page 34: Poe Safety
Power over Ethernet (PoE) Certification does not apply or extend to voltages outside of standard PoE range. Any PoE voltages outside this range have not been evaluated by UL or MULTITECH. The end user supplies the PoE cable. If the cable is to be used outdoors, the cable must be certified for outdoor location. -
Page 35: Avertissement Et Mises En Garde
PoE standard. Toute tension PoE en dehors de la plage indiquée n'a pas été évaluée par UL ou MULTITECH. L'utilisateur final fournit le câble PoE. Ce câble doit être adapté à un emplacement extérieur. Il s'agit d'un appareil 802.3at de type 2. Pour de plus amples renseignements, reportez-vous à la note d'application PoE de Conduit (S000678). -
Page 36: Device Maintenance
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 37: Radio Frequency (Rf) Safety
REGULATORY & SAFETY INFORMATION also meets the European RF exposure requirements of EN 62311. If an alternate antenna is used, consult user documentation for required antenna specifications. Compliance of the device with the FCC, EU and IC rules regarding RF Exposure was established and is given with the maximum antenna gain as specified above for a minimum distance of 20 cm between the devices radiating structures (the antenna) and the body of users. -
Page 38: Interference With Pacemakers And Other Medical Devices
REGULATORY & SAFETY INFORMATION Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). -
Page 39: Chapter 6 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 40: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 41: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 42: Information On Hs/Ts Substances According To Chinese Standards
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.
