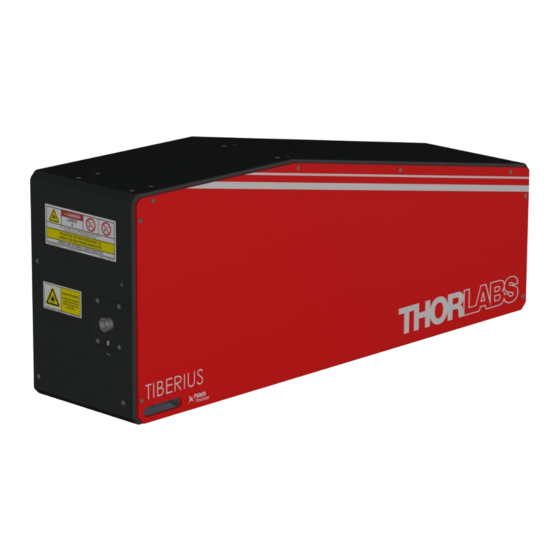

THORLABS TIBERIUS User Manual

Tunable femtosecond ti:sapphire laser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TIBERIUS
Tunable Femtosecond
Ti:Sapphire Laser
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIBERIUS and is the answer not in the manual?

Questions and answers

Related Manuals for THORLABS TIBERIUS

Summary of Contents for THORLABS TIBERIUS

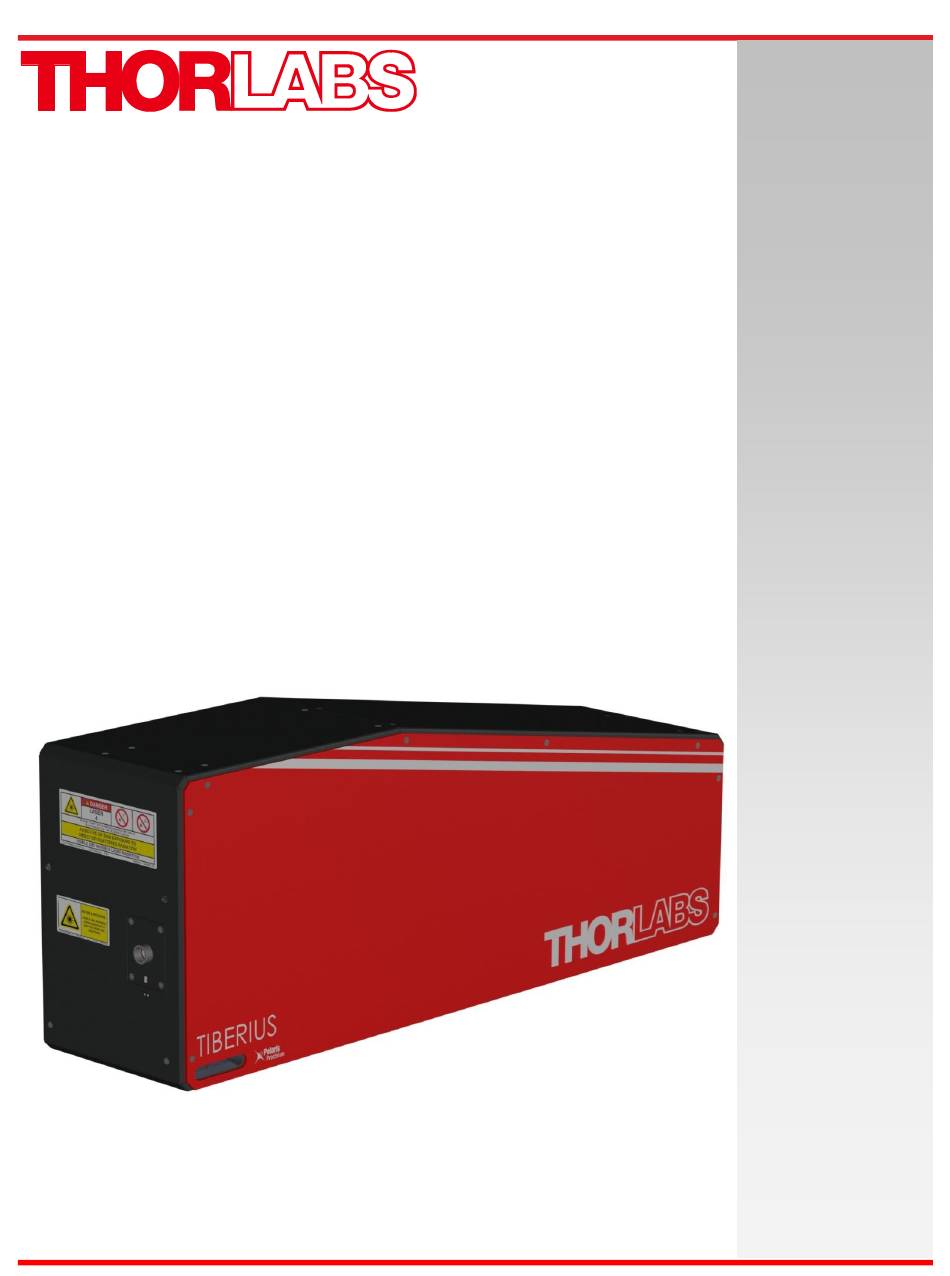

  • Page 1 TIBERIUS Tunable Femtosecond Ti:Sapphire Laser User Guide...

  • Page 3: Table Of Contents

    5.2.1. Direct Connection ........................ 13 5.2.2. Network connect - ETH port ....................19 5.3. Tiberius Web Application (WebUI)................21 5.3.1. Tiberius Web Application User Interface (WebUI ) ............. 21 5.4. Interlocks ........................23 5.5. External RS-232 COM Port ..................24 5.6.
  • Page 4 Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 1: Warning Symbol Definitions 9.2. Electrical Requirements ..................... 33 9.3. Environmental Requirements ..................34 9.4. Physical Dimensions ....................34 Chapter 10 Regulatory ........................35 Thorlabs Worldwide Contacts ..................37 Chapter 11 Page 2 TTN034204-D02...

  • Page 5: Chapter 1 Warning Symbol Definitions

    ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 1: Warning Symbol Definitions Warning Symbol Definitions Chapter 1 Below is a list of warning symbols you may encounter in this manual or on your device Symbol Description Direct Current Alternating Current Both Direct and Alternating Current...

  • Page 6: Chapter 2 Safety

    Chapter 2 2.1. Laser classification Per 21 C.F.R. §1040.10 and IEC 60825-1:2014, the Tiberius is classified as a Class IV or Class 4 laser. The latter form of the classification is used throughout the rest of this manual. 2.2. Laser safety labels Figure 1 Laser safety label per IEC 60825-1:2014 §7.

  • Page 7: Resources

    Chapter 2: Safety Class 4 lasers such as the Tiberius may cause damage to the skin, and also to the eye, even from the viewing of diffuse reflections. These hazards may also apply to indirect or non-specular reflections of the beam, even from apparently matte surfaces.

  • Page 8: Chapter 3 Description

    3.1. Introduction The Tiberius laser is a soft aperture, Kerr-lens mode locked (KLM) Ti:Sapphire laser capable of producing widely tunable, high-power femtosecond laser pulses, designed for industrial and scientific research. The Ti:Sapphire oscillator and the pump laser are fully integrated into a temperature-stabilized, sealed, and purged housing. A patented fast-tuning mechanism (Patent # 9,871,340) allows the Tiberius to achieve an industry-leading tuning speed of up to 4000 nm/s.

  • Page 9: Operating Conditions And Environmental Requirements

    17 °C – 25 °C, and should not change by more than 3 °C over a 24-hour period. 3.3.2. Air Quality and Humidity Some optical components in the Tiberius Laser Head are not hermetically sealed. In particular, the window at the output aperture is directly exposed to the room environment. In addition, small amounts of contamination and moisture can penetrate the sealed the cavity.

  • Page 10: Chapter 4 Installation

    ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 4: Installation Installation Chapter 4 The safety of any system incorporating the equipment is the responsibility of the assembler of the system. The safety information included in this manual should be read and understood before any installation.
  • Page 11 12. Coolant out of Tiberius, Chiller Return (beige connectors) 6. Fast tuning trigger input 13. Purge Air into Tiberius, PACU Supply (white connector) 7. Pump Laser Controller/Tiberius Controller Connection 14. Purge Air out of Tiberius, PACU Return (beige connector) Page 9...

  • Page 12: Disassembly

    6. Loosen the three clamps holding the Tiberius Laser Head to the table. 7. The Tiberius is shipped with an end cap threaded on to the output port of the Tiberius Laser Head. This cap is for protection of the shutter and output window. If the end cap is available and the laser is being stored for an extended time, install it on the output port.

  • Page 13: Installation

    Laser Head, and the RJ45 cable between the Tiberius Controller and the Pump Laser Controller. 5. The Tiberius is shipped with an end cap threaded on to the output port of the Tiberius Laser Head. This cap is for protection of the shutter and output window. If it is installed, remove it now.

  • Page 14: Chapter 5 Setup And Operation

    Before operating the laser, check the coolant lines between the chiller and the Tiberius laser head. Power on the chiller and verify that the coolant is running and that there are no leaks. Then power on the Tiberius Controller and the Pump Laser Controller. In addition, verify the PACU is running at about 2.5 L/min.

  • Page 15: Direct Connection

    You must change the IP address of your host computer’s network interface card to a compatible address in the address space of the Ethernet device you want to connect. For example, The Tiberius controller has a default communication mode for web-setup that uses IP address 172.16.1.1 with a subnet mask of 255.255.0.0. To communicate with the controller, set the host PCs wired Ethernet interface to a similar address like 172.16.1.2...
  • Page 16 ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 5: Setup and Operation 1. On your Windows 10 computer, navigate to the Control Panel and select Settings (selecting the Gear icon after clicking the Start button in the lower left corner of your desktop will also get you to the Settings menu), choose “Network &...
  • Page 17 ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 5: Setup and Operation 3. In the Network and Sharing Center, all your computer’s network adapters will be listed similar to the screen below. 4. Right-click on your wired Ethernet adapter and select Properties to display the network properties list shown below (the Ethernet properties of your adapter are listed with checks leading the properties that apply to it).
  • Page 18 Chapter 5: Setup and Operation 5. The computer’s Ethernet adapter must be set to a unique static IP address in the same address domain as the Tiberius Controller’s address of 172.16.1.1, and with a subnet mask set to 255.255.0.0. 6. In the adapters IPv4 properties screen shown on the above, choose “Use the following IP address:”, then enter IP address 172.16.1.2 into the IP address field as shown.
  • Page 19 7. Connect an Ethernet cable from the Ethernet port of your computer to the PUMP.0 port of the Tiberius controller. On the host computer, load a web browser and type the address 172.16.1.1:7190 into its web address field and press [Enter].
  • Page 20 ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 5: Setup and Operation Once logged in, the Tiberius controller Web browser user interface (WebUI) will open. Refer to section 5.3 for details on using the WebUI. Page 18 TTN034204-D02...

  • Page 21: Network Connect - Eth Port

    LAN using any standard web browser (Chrome, Firefox, etc.) 1. Connect an Ethernet cable from the Ethernet port of your computer to the ETH port of the Tiberius controller. On the network computer, load a web browser and type the address TiberiusXXX:7190 (where XXX is the lasers 3 digit serial number) into its web address field and press [Enter].
  • Page 22 ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 5: Setup and Operation Once logged in, the Tiberius controller Web browser user interface (WebUI) will open. Refer to section 5.3 for details on using the WebUI. Page 20 TTN034204-D02...

  • Page 23: Tiberius Web Application (Webui)

    5.3. Tiberius Web Application (WebUI) The Tiberius laser is controlled with a web application running in a web browser on the host computer. 5.3.1. Tiberius Web Application User Interface (WebUI ) The WebUI consists of the following controls and status indicators: 1.
  • Page 24 ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 5: Setup and Operation 4. Mode Lock Status – Indicates the Mode Locked status of the laser Red indicates that the laser is not mode-locked. Green indicates that the laser is mode-locked. 5. At Target Wavelength Status – Indicates whether the laser is tuned to the target wavelength Red indicates that the laser is not at the target wavelength.

  • Page 25: Interlocks

    Intended for remote termination of laser emission for safety reasons. Opening the interlock circuit creates a fault condition that can only be cleared by closing the circuit and cycling the key (enable circuit) Additional functionality that should not be used with the Tiberius Page 23...

  • Page 26: External Rs-232 Com Port

    Chapter 5: Setup and Operation 5.5. External RS-232 COM Port The Tiberius can be controlled by an external device (e.g. a PC) via an RS-232 connection through the port on the rear of the Tiberius Controller, as shown in Section 4.1. RS-232 Communication Settings...
  • Page 27 Response: (x,y = values within the operating wavelength range) See additional sections of the manual or contact Thorlabs for more details on the sequential fast-tuning feature. STATUS? Returns the laser status. STATUS? Sent: Response: R (mode-locked and at target...
  • Page 28 Response: HH=1300 Returns the pump diode current in amps. Sent: Response: C=32.93 Returns the Tiberius serial number. Sent: Response: SN=IBU-12-XXX Returns the version number of the Tiberius Sent: software. Response: SW=versionNumber FWHM? Returns the measured full width at half Sent: FWHM? maximum of the spectrum.

  • Page 29: Fast Tuning

    (e.g. SEQ=820,940). 3. Apply TTL pulses to the SMA 1 connector on the back of the Tiberius controller (see Section 4.1). The wavelength will change at each falling edge of the pulse. See the timing diagram below.

  • Page 30: Chapter 6 Laser Maintenance

    Also, if the PACU flow rate will not reach 2.5 L/min, it is possible that the fine filter has become saturated. Replacement desiccant filters (Item # PACU-FTR1) and replacement fine filters (Item # PACU-FTR3) are available from Thorlabs’ website. Page 28...

  • Page 31: Chiller

    Under normal conditions, the Tiberius should not lose any coolant. If the level is low, check all of the coolant line connections carefully for leaks.

  • Page 32: Other Maintenance

    ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 6: Laser Maintenance 6.3. Other maintenance No other components of the system are user serviceable. If a problem arises that cannot be resolved using the contact Thorlabs’ technical support Troubleshooting chapter this manual, please (tiberius.service@thorlabs.com).

  • Page 33: Chapter 7 Troubleshooting

    The chiller takes several minutes to stabilize. If it was just turned on, give it a few minutes to stabilize. If the Tiberius emission is enabled, turn it off. Operating the laser without proper cooling can cause severe permanent damage.

  • Page 34: Chapter 8 Remote Support

    Network Connection A reliable connection to the Internet is required for remote support via TeamViewer Host. See connection 5 in §4.1 Connections. The connection is not required for normal operation of the Tiberius. It may be physically disconnected when unneeded.

  • Page 35: Chapter 9 Specifications

    Beam Diameter (1/e 1.5 mm (nominal) < 1.2 at 800 nm Pointing Stability During Tuning < 50 µrad per 100 nm Figure 1 Typical Tuning Curve for the Tiberius Laser 9.2. Electrical Requirements Electrical Requirements Input Voltage 100 - 240 V...

  • Page 36: Environmental Requirements

    17 °C to 25 °C Room Temperature Stability < 3 °C over 24 hours 9.4. Physical Dimensions Each Tiberius includes the Tiberius Laser Head, Tiberius Controller, Pump Laser Controller, chiller, and PACU. Physical Dimensions 29.38" x 7.48" x 11.32" Tiberius Laser Head 38 kg (746.3 mm x 190.0 mm x 287.4 mm)

  • Page 37: Chapter 10 Regulatory

    Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 38 ® Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 10: Regulatory CE Certificates Page 36 TTN034204-D02...

  • Page 39: Chapter 11 Thorlabs Worldwide Contacts

    Tiberius Tunable Femtosecond Ti:Sapphire Laser Chapter 11: Thorlabs Worldwide Contacts Chapter 11 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at ww.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc.
  • Page 40 www.thorlabs.com...
