  • Page 1 Environmental Measurement TSP01 Quick Start 2012...
  • Page 2 Version: Date: 09.08.2012 Copyright © 2012 Thorlabs...

  • Page 3: Table Of Contents

    1.3.2 Software Requirements 2 Installation 2.1 Parts List 2.2 Getting Started 2.3 Installing Software 3 Operating Instruction 3.1 Quick Start 4 Maintenance and Service 4.1 Version Information 5 Appendix 5.1 Technical Data 5.2 Certifications and Compliances 5.3 Thorlabs Worldwide Contacts...

  • Page 4: Foreword

    Paragraphs preceeded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read these advices carefully! © 2012 Thorlabs...

  • Page 5: General Information

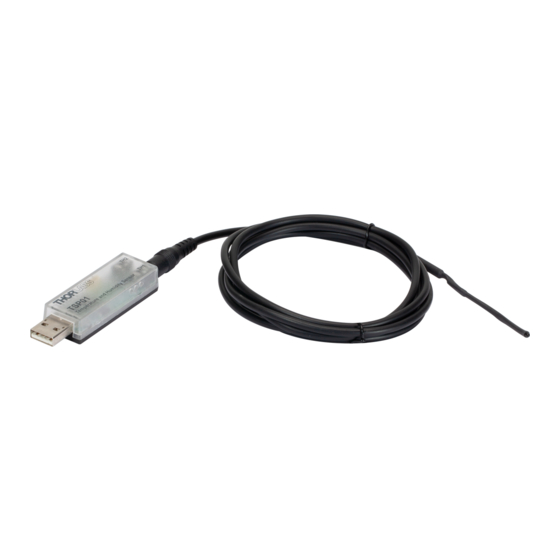

    1 General Information General Information The TSP01 is a device in the size of a USB thumb drive that can be plugged to any free USB port for reading up to three different temperature values and relative humidity. The combined humidity and temperature sensor is embedded into the USB stick, a second NTC temperature sensor is included and can be connected to the housing.

  • Page 6: Installation

    5. Quick Start Instruction Getting Started Attention Please do not connect the TSP01 prior to install software! The probe won't be recognized correctly and will not work as intended. Installing Software Hereinafter, the installation to Windows 7 operating system is explained.
  • Page 7 2 Installation The installer verifies if a NI-VISA is already installed. If not, the installer alerts you about that and requires NI-VISA installation, otherwise it continues with TSP01 application software installation Note Please note that the NI-VISA is mandatory to operate the TSP01.
  • Page 8 TSP01 © 2012 Thorlabs...
  • Page 9 2 Installation Click "I accept..." if you do so, then "Next >" to continue. © 2012 Thorlabs...
  • Page 10 TSP01 Click "Next >" to continue. Click "Finish" to continue. You will be prompted to restart the computer. Click "Restart", leave CD in the drive. After the restart, the TSP01 software installation automatically resumes: © 2012 Thorlabs...
  • Page 11 2 Installation Click "Next >" to continue. Click "I accept..." if you do so, then "Next >" to continue. Click "Next >" to continue. © 2012 Thorlabs...
  • Page 12 TSP01 Click "Install" to continue, then "Next". Click "Finish" to finalize installation. © 2012 Thorlabs...

  • Page 13: Operating Instruction

    3 Operating Instruction Operating Instruction After installation of the software connect the TSP01 to a free USB2.0 port. The operating system recognizes a new device and automatically installs the device drivers. Start the GUI from the desktop icon. At the first connect, you will be prompted to select the preferred unit for temperature display.

  • Page 14: Quick Start

    TSP01 Quick Start The Quick Start gives a short overview on how to use the TSP01 software. Detailed descriptions can be found in the PDF manual - from the Windows Start button select "All Programs, then Thorlabs and further as shown to the left.
  • Page 15 Time: format as selected for "Time Axis Scale" Results: The values from all sensors are displayed. If an external sensor is not enabled or not present, the values show "--.---" Remarks: empty if no error occurred, otherwise an error message will be displayed © 2012 Thorlabs...
  • Page 16 Detailed explanations can be found in the PDF manual and in the online help. Detailed operating instructions please see in the electronic versions of the manual that have been installed to your computer along with the software and drivers. © 2012 Thorlabs...

  • Page 17: Maintenance And Service

    4 Maintenance and Service Maintenance and Service Protect the TSP01 from adverse weather conditions. The TSP01 is not water resistant. Attention To avoid damage to the instrument, do not expose it to spray, liquids or solvents! The unit does not need a regular maintenance by the user. It does not contain any modules and/or components that could be repaired by the user himself.

  • Page 18: Appendix

    Dimensions (W x H x D) 69.5mm x 20.5mm x 12.0mm Weight < 50 g (w/o external sensor) ) non-condensing All technical data are valid at (23 ± 5) °C and (45 ± 15) % rel. humidity (non condensing) © 2012 Thorlabs...

  • Page 19: Certifications And Compliances

    Compliance demonstrated using high-quality shielded interface cables shorter than or equal to 3 meters. Emissions, which exceed the levels required by these standards, may occur when this equipment is connected to a test object. Replaces 73/23/EEC, amended by 93/68/EEC © 2012 Thorlabs...

  • Page 20: Thorlabs Worldwide Contacts

    TSP01 Thorlabs Worldwide Contacts USA, Canada, and South America Thorlabs, Inc. 56 Sparta Avenue Newton, NJ 07860 Tel: 973-579-7227 Fax: 973-300-3600 www.thorlabs.com www.thorlabs.us (West Coast) Email: sales@thorlabs.com Support: techsupport@thorlabs.com Europe UK and Ireland Thorlabs GmbH Thorlabs Ltd. Hans-Böckler-Str. 6 1 Saint Thomas Place, Ely...
  • Page 21 Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 22 TSP01 Warranty Thorlabs warrants material and production of the TSP01 for a period of 24 months starting with the date of shipment. During this warranty period Thorlabs will see to defaults by repair or by exchange if these are entitled to warranty.
  • Page 23 User Manual. Should you require further information on this product, or encounter specific problems that are not discussed in sufficient detail in the User Manual, please contact your local Thorlabs dealer or system installer.
