INSTALLATION, CONT'D: SHELVING ASSEMBLY COMPONENTS

8. Shelving Assembly Components
 Check that shelving is in proper position before
placing product in case
 Shelves may be adjusted vertically, horizontally
or entirely removed from merchandiser.
Nylon
Retainer
Clip (Typ.)
Shelf Top - For Placing
Product (Typ.)
Bracket With Notches
To Adjust (Typ.)
LED Light (Typ.)


Tag Molding (Typ.)
8

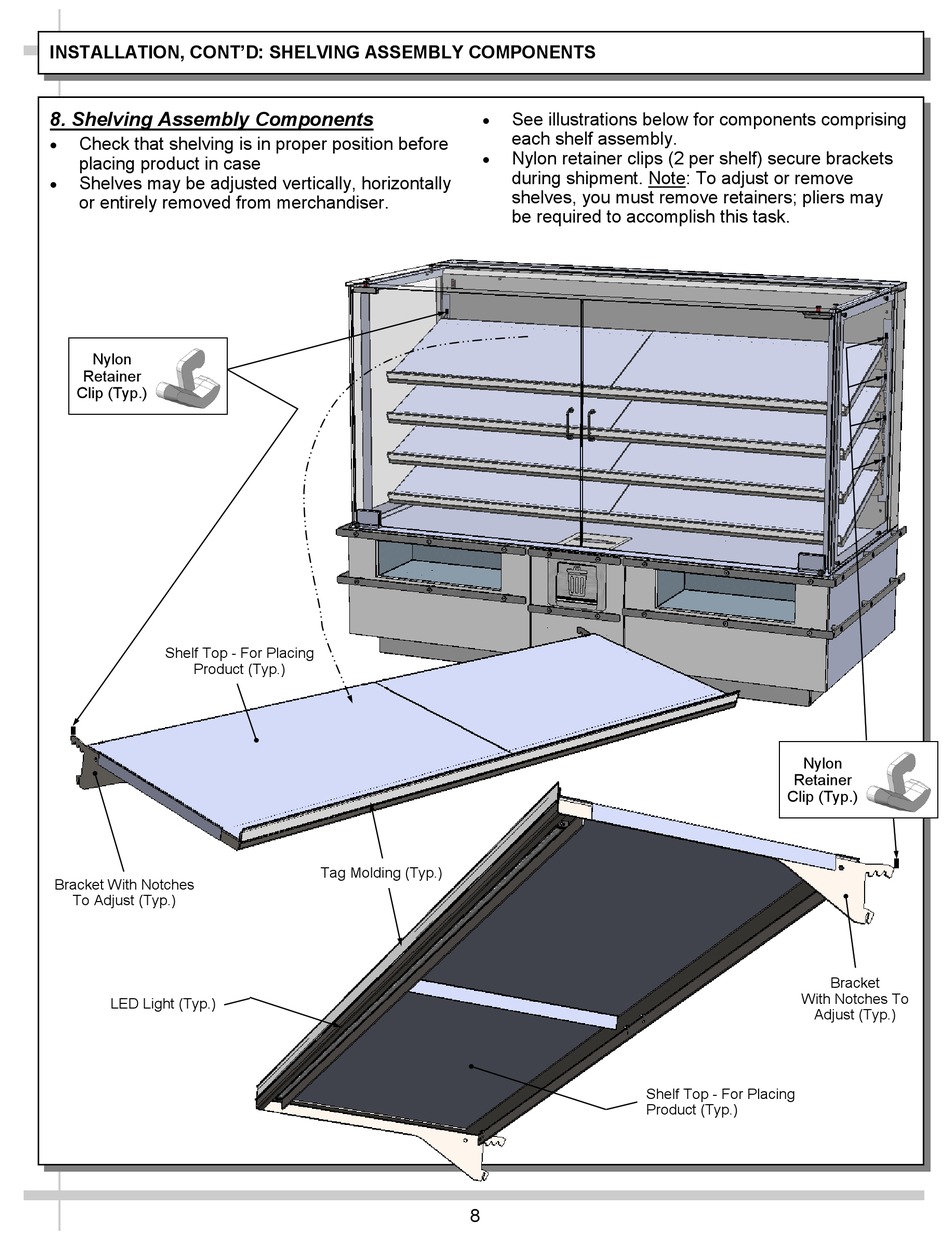

See illustrations below for components comprising
each shelf assembly.
Nylon retainer clips (2 per shelf) secure brackets
during shipment. Note: To adjust or remove
shelves, you must remove retainers; pliers may
be required to accomplish this task.
Shelf Top - For Placing
Product (Typ.)
Nylon
Retainer
Clip (Typ.)
Bracket
With Notches To
Adjust (Typ.)
