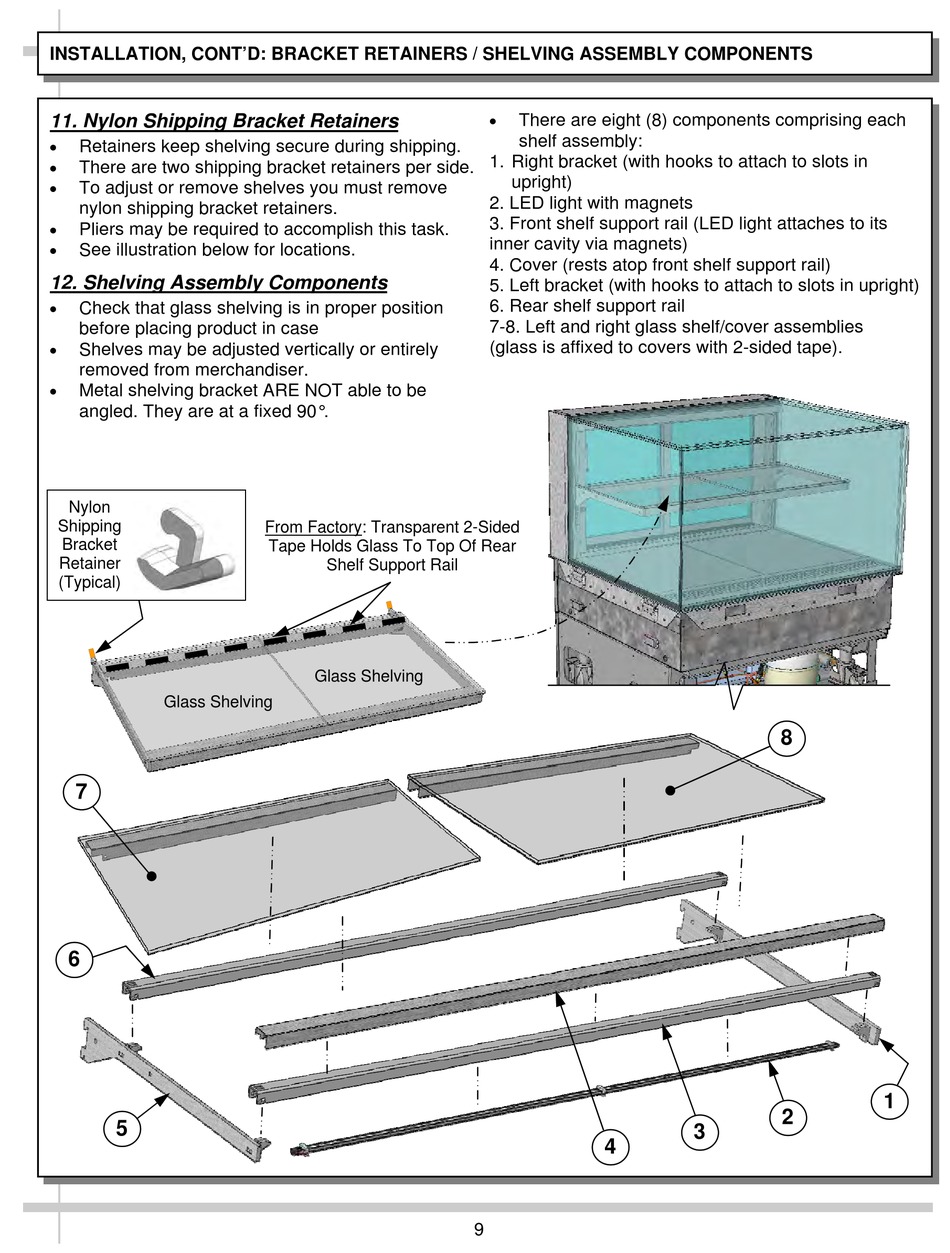

INSTALLATION, CONT'D: BRACKET RETAINERS / SHELVING ASSEMBLY COMPONENTS

11. Nylon Shipping Bracket Retainers

Retainers keep shelving secure during shipping.

There are two shipping bracket retainers per side.

To adjust or remove shelves you must remove
nylon shipping bracket retainers.

Pliers may be required to accomplish this task.

See illustration below for locations.
12. Shelving Assembly Components

Check that glass shelving is in proper position
before placing product in case

Shelves may be adjusted vertically or entirely
removed from merchandiser.

Metal shelving bracket ARE NOT able to be
angled. They are at a fixed 90°.
Nylon
Shipping
Bracket
Retainer
(Typical)
Glass Shelving
7
6
5
From Factory: Transparent 2-Sided
Tape Holds Glass To Top Of Rear
Shelf Support Rail
Glass Shelving

There are eight (8) components comprising each
shelf assembly:
1. Right bracket (with hooks to attach to slots in
upright)
2. LED light with magnets
3. Front shelf support rail (LED light attaches to its
inner cavity via magnets)
4. Cover (rests atop front shelf support rail)
5. Left bracket (with hooks to attach to slots in upright)
6. Rear shelf support rail
7-8. Left and right glass shelf/cover assemblies
(glass is affixed to covers with 2-sided tape).
4
9
8
2
3
1
