CASE DESIGN: TOP SIDE VIEW OF AMBIENT, SELF-SERVICE MERCHANDISERS

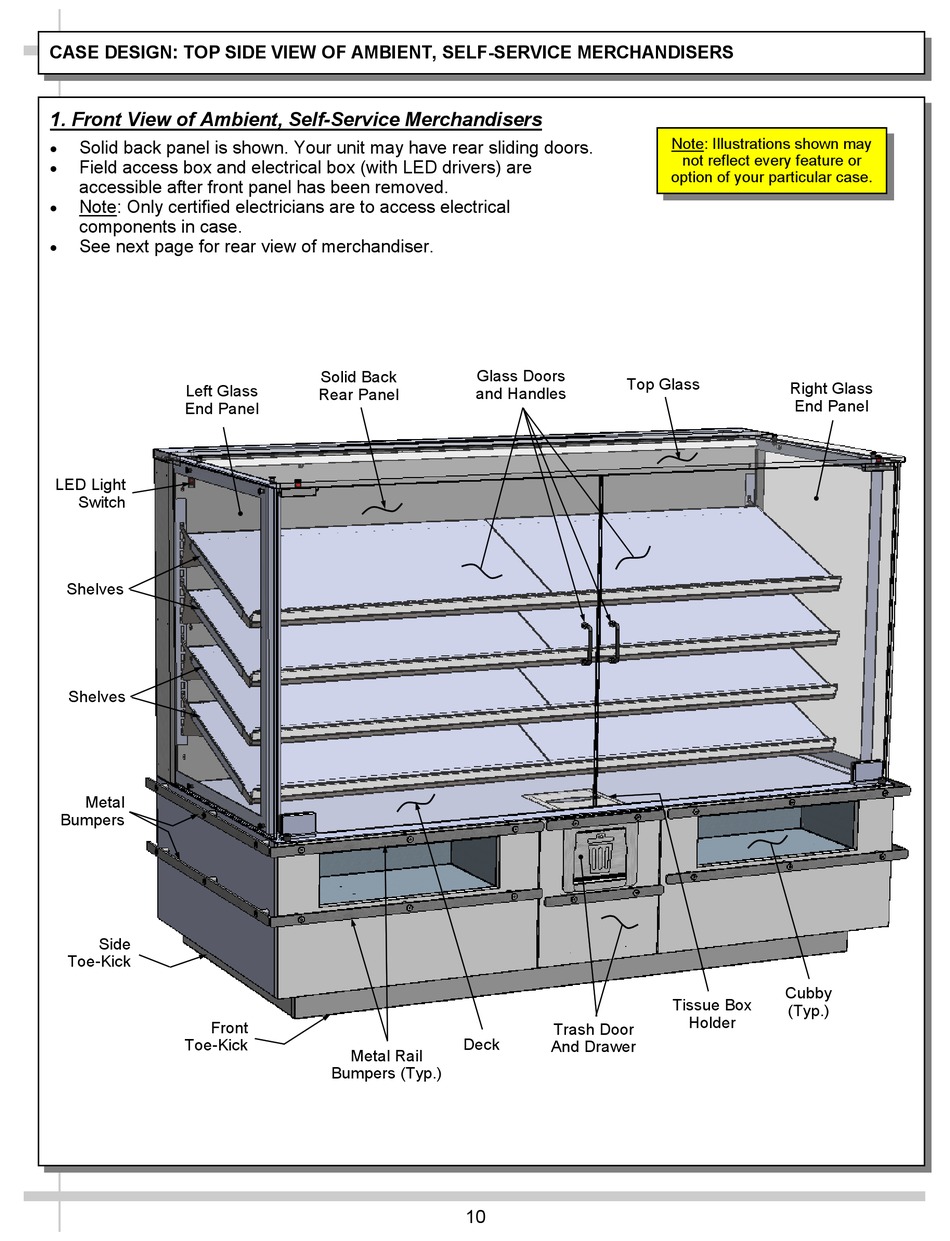

1. Front View of Ambient, Self-Service Merchandisers
 Solid back panel is shown. Your unit may have rear sliding doors.
 Field access box and electrical box (with LED drivers) are
accessible after front panel has been removed.
 Note: Only certified electricians are to access electrical
components in case.
 See next page for rear view of merchandiser.
Left Glass
End Panel
LED Light
Switch
Shelves
Shelves
Metal
Bumpers
Side
Toe-Kick
Front
Toe-Kick
Glass Doors
Solid Back
and Handles
Rear Panel
Deck
Metal Rail
Bumpers (Typ.)
10
Note: Illustrations shown may
not reflect every feature or
option of your particular case.
Top Glass
Tissue Box
Holder
Trash Door
And Drawer
Right Glass
End Panel
Cubby
(Typ.)
