OPERATION

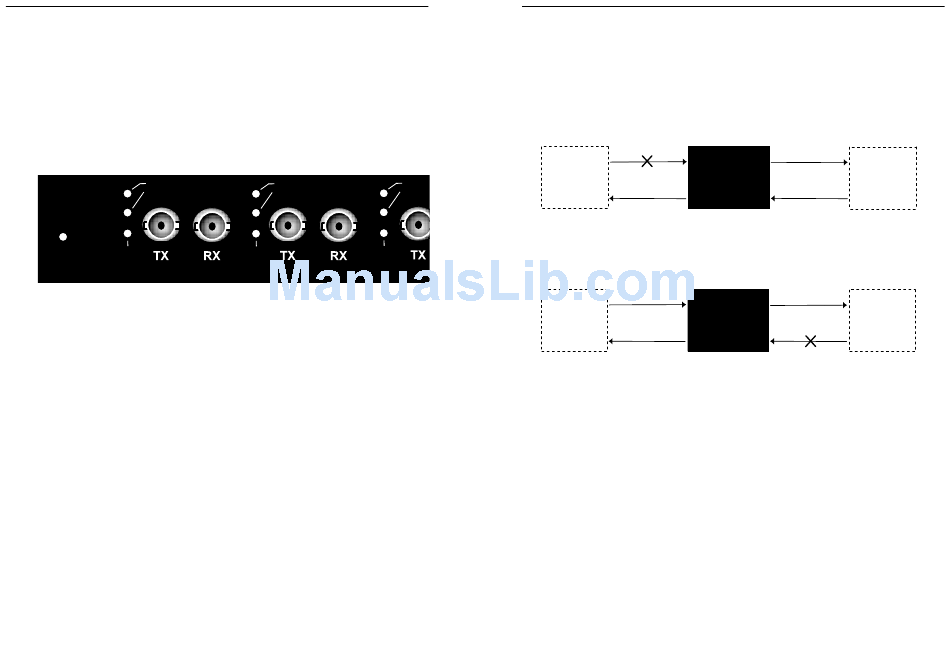

Use the status LEDs to monitor multi-port media converter operation in the
network.
NOTE: Each 100BASE-TX/ 100BASE-FX media converter port is identified by
a number located just above the fiber connector(s) for that 100BASE-TX
/100BASE-FX port connection. The LEDs that apply to each 100BASE-TX or
100BASE-FX port connector(s) are located, when facing the multi-port media
converter, at the left of the connector(s) for that 100BASE-TX or 100BASE-FX
port connection.
TP LINK
FBR LINK
POWER
ACT
T(WISTED) P(AIR) LINK
F(I)B(E)R LINK
ACTIVITY
POWER
1 TP LINK 2
FBR LINK
ACT
Steady green LED indicates good link on
copper.
100BASE-TX
Steady green LED indicates good link on
fiber.
100BASE-FX
green 100BASE-TX
Flashing LED indicates
OR 100BASE-FX activity.
Steady green LED indicates connection to
external AC power.
Using LinkAlert™
The E-TX-FX-xx00 series multi-port media converter LinkAlert™ feature allows
each media converter port to pass 100BASE-TX-side link faults over the port link
to the 100BASE-FX side and to pass 100BASE-FX-side link faults over the port
link to the 100BASE-TX side.
If the port does not detect a good link on the 100BASE-TX side, the port disables
all transmission (including active-idle) on the 100BASE-FX side.
100BASE-TX
TP LINK
FBR LINK
If the port does not detect a good link on the 100BASE-FX side, the port disables
ACT
all transmission (including active-idle) on the 100BASE-TX side.
100BASE-TX
Media Converter
Device Port
Media Converter
Device Port
Idle
Idle
100BASE-FX
Device
100BASE-FX
Device
