Transition Networks E-TBT-FRL-FD-01 Installation Manual

Troubleshooting:
1. Is the power LED on the media converter lit?
NO
• Refer to the previous section, "Power Supply Requirements" to verify the proper
voltage and hertz. Is the power adapter the proper type of voltage and hertz for
your AC outlet?
• Is the power adapter properly inserted into the media converter and outlet?
• Call the TE Technical Support at (800) 260-1312.
YES
• Proceed to step 2.
2. Are both the fiber Link LED and 10BaseT Link LED lit?
NO
• Check fiber and/or UTP cables for proper connection and pin assignment. Refer to
"RJ-45 Pin Specifications" in this guide to verify that the proper twisted pair cable
(straight through or crossover) is being used.
• If correct, call TE Technical Support at (800) 260-1312.
YES
• Call the TE Technical Support at (800) 260-1312.
Technical Support:
For more information about this product or other Transition Engineering products, call
your local Transition Engineering distributor.
Direct numbers are listed below:
TE Main Phone Numbers:
TE Technical Support Number:
TE Fax Number:
FCC Regulations:
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own cost.
Canadian Regulations:
Note: This digital apparatus does not exceed the Class A limits for radio noise for digital
apparatus set out on the radio interference regulations of the Canadian Department of
Communications.
Trademarks:
Ethernet is a registered trademark of the Xerox Corporation, Inc.
Transition Engineering is a trademark of Transition Engineering, Inc.
Media Converter Specifications:
Standards:
Fiber Connection:
Fiber Optic Cable Maximum Distance:
Fiber Optic Cable Recommended:
Optional:
Twisted Pair Specifications:
Twisted Pair Maximum Distance:
Power Supply:
Environment:
Warranty:
Monitoring the Media Converter's LEDs:
Main Indicator
Power:
Fiber Optic & FDE TP (twisted pair) Ports
TP (Twisted Pair) Link:
Fiber Link:
Fiber XMIT (TX):
Fiber RECV (RX):
(800) 325-2725 or (612) 941-7600
(800) 260-1312
(612) 941-2322
Rev 11/94
P/N 7353.A
Ethernet IEEE 802.3 FDE TP (twisted pair)
to 10BaseFL (FOIRL)
ST type connectors (SMA type available
upon request)
2,000 meters (6,600 feet)
62.5 / 125 µm multimode fiber
100 / 140 µm multimode fiber
85 / 125 µm multimode fiber
50 / 125 µm multimode fiber
22, 24, or 26 gauge cable, type 3 or
better
100 meters (330 feet)
External AC/DC Class 2 wall mount unit, reg.
9 VDC at 0.5 A.
0–50 degrees C, 5%–90% humidity
non-condensing, 0–10,000 foot altitude
Two years
Lit green LED indicates normal operation
Lit green LED indicates the unit is receiving
Link pulses from a compliant device
Lit green LED indicates the unit is receiving
Link pulses from a compliant device
Flashing or lit green LED indicates packet(s)
are being transmitted
Flashing or lit green LED indicates packet(s)
are being received
7090 Shady Oak Road
Eden Prairie, MN 55344 USA
Full Duplex Ethernet (FDE)
Fiber Optic (10BaseFL) to TP (Twisted Pa
Media Converter Installation Guide
P/N E-TBT-FRL-FD-01

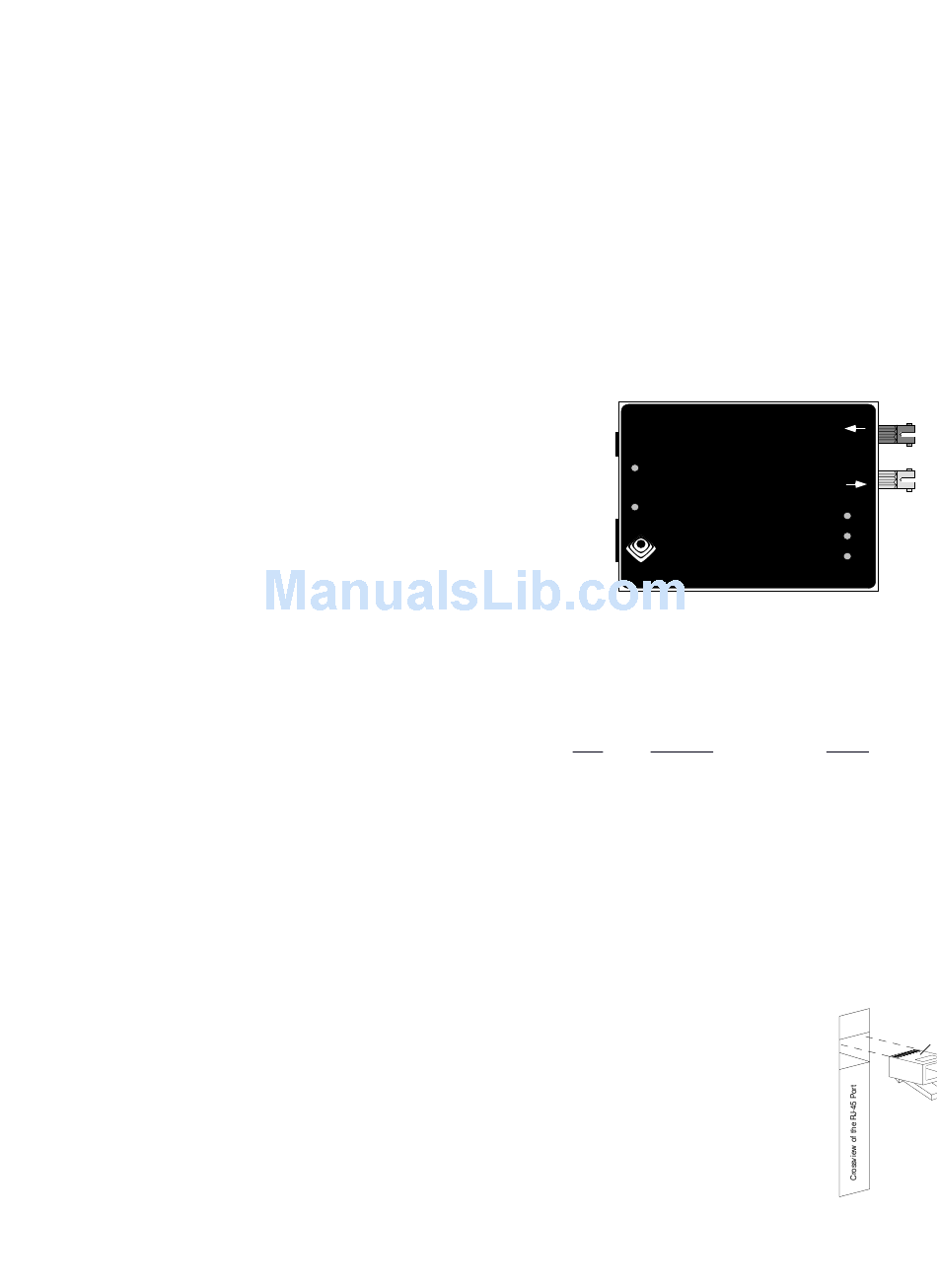

About the Media Converter:
The Transition Engineering, P/N E-TBT-FRL-FD-01, is an Ethernet Media Converter th
provides conversion from fiber optic cable (10BaseFL) to TP (twisted pair) for Full-D
Ethernet (FDE) links. The Media Converter has an RJ-45 connection and two Receive
Transmit ST type fiber optic connectors. The twisted pair side allows a device to be
located up to 100 meters (185 feet) away. The fiber optic ST connections extend the
transmission distance up to 2000 meters (6,600 feet). An SMA type fiber connection
also available, Transition Engineering P/N E-TBT-FRL-FD-01(SMA).
E-TBT-FRL-FD-01
10BaseT to FL
Full Duplex Ethernet
Power
Media Converter
Link
TRANSITION
E N G I N E E R I N G , I N C .
7090 Shady Oak Road
Eden Prairie, MN 55344
Measurements: 3.55" x 2.80" x 0.800 " (90 mm x 71 mm x 20 mm)
Power Supply Requirements:
Connect the power supply cable to the Media Converter before connecting to the o
Replace power supply with only the equivalent input rating (refer to the table below
output rating (regulated 9VDC at 0.5 A).
TE PN Requirement
3345 240 volts, 50 hertz
3503 230 volts, 50 hertz
3504 120 volts, 60 hertz
3509 100 volts, 50–60 hertz
3512 240 volts, 50 hertz
RJ-45 Pin Specifications:
straight through
Individual wires that make up a
shown below. Each pair has designated pin connections on an RJ-45 modular conn
There are only two active pairs in a FDE TP (twisted pair) network, pins 1 & 2 and
Use only dedicated wire pairs (such as blue/white, white/blue, orange/white,
white/orange, etc.).
Hub to
RJ-45 Male
1 [RX +] - - - - - - - - - - - - - - - - - [TX +]
2 [RX -] - - - - - - - - - - - - - - - - - - [TX -]
3 [TX +] - - - - - - - - - - - - - - - - - -[RX +]
6 [TX -] - - - - - - - - - - - - - - - - - - [RX -]
crossover cable
The following are the pins for a
cascade from a FDE TP (twisted pair) Terminal to a
Media Converter.
Fiber to TP Adapter to
RJ-45 Male
1 [TX +] - - - - - - - - - - - - - - - - - -[RX +]
2 [TX -] - - - - - - - - - - - - - - - - - - [RX -]
3 [RX +] - - - - - - - - - - - - - - - - - [TX +]
6 [RX -] - - - - - - - - - - - - - - - - - - [TX -]
RX
TX
RX
Link
TX
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
twisted pair modular cable a
Fiber to TP Adapter
RJ-45 Male
1
2
3
6
1
to
Crossview of th
UTP Cable Con
Transceiver or
Terminal Port
RJ-45 Male
3
6
1
2
8 To
