User's Guide
E-TBT-FRL-NLP-01
E-TBT-FRL-N-01
PCI Ethernet Media Converter
• Copper to Fiber
• 10Base-T to 10Base-FL
E-TBT-FRL-NLP-01
Transition Networks E-TBT-FRL-NLP-01 series
and E-TBT-FRL-N-01 series media converters
connect 10Base-T copper to 10Base-FL fiber.
These PCI (Peripheral Component Interconnect)
powered media converters are designed to
install directly inside a PC workstation or file
server and mount on any slot on a standard PCI.
No additional power supply is needed since the
power is drawn directly from the PCI slot.Two
LEDs integrated into the RJ-45 10Base-T port
allow for network monitoring.

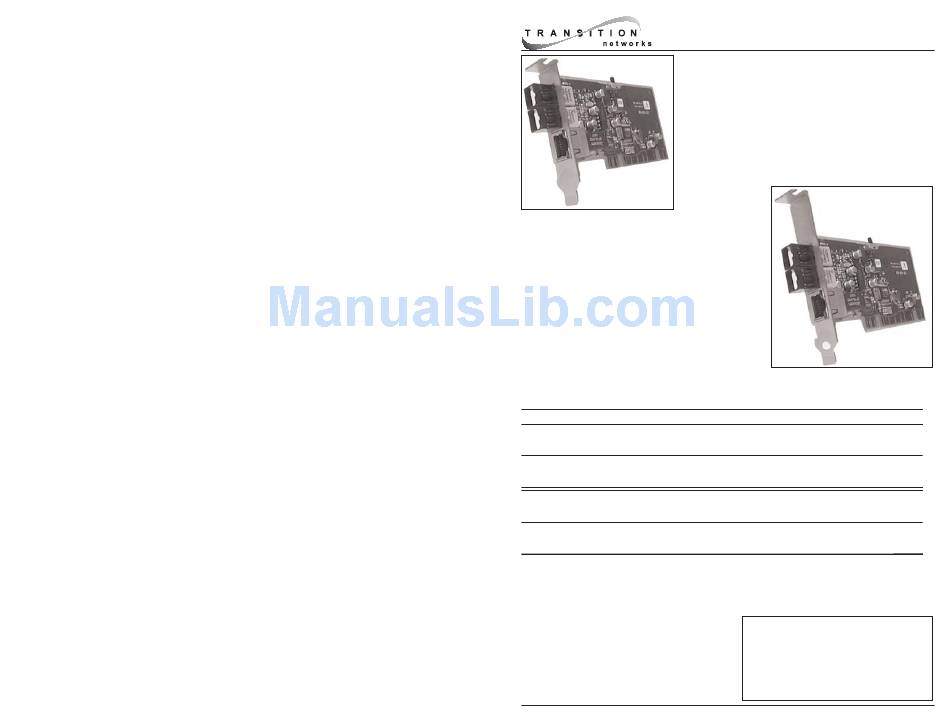

The E-TBT-FRL-NLP-01 PCI media converter (above) is 3.15" (80mm) wide.
The E-TBT-FRL-N-01 PCI media converter (right) is 4.76" (121mm) wide.
Part Number
Port One - Copper
E-TBT-FRL-NLP-01
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-NLP-01 (SC)
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-N-01
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-N-01 (SC)
RJ-45, 10Base-T
100 m (328 ft)*
* Typical maximum cable distance.
physical characteristics of the network installation.
The information in this user's guide is
subject to change.For the most up-to-date
information, see the user's guide on-line
at: www.transition.com.
E-TBT-FRL-N-01
Port Two - Fiber-Optic
ST, 850 nm multimode
10Base-FL, 2 km (1.2 miles)*
SC, 850 nm multimode
10Base-FL, 2 km (1.2 miles)*
ST, 850 nm multimode
10Base-FL, 2 km (1.2 miles)*
SC, 850 nm multimode
10Base-FL, 2 km (1.2 miles)*
Actual distance is dependent upon the
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . .6
Compliance Information . . . . . . . .8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-TBT-FRL-N-01(SC) and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks E-TBT-FRL-N-01(SC)

Summary of Contents for Transition Networks E-TBT-FRL-N-01(SC)

  • Page 1 E-TBT-FRL-N-01 series media converters connect 10Base-T copper to 10Base-FL fiber. These PCI (Peripheral Component Interconnect) powered media converters are designed to install directly inside a PC workstation or file server and mount on any slot on a standard PCI.

  • Page 2: Installation

    E-TBT-FRL-NLP-01 / E-TBT-FRL-N-01 Installation Set the Link Pass-Through Switch The Link Pass-Through switch is located on the edge of the printed circuit board and can be easily enabled or disabled without the use of tools. The Link Pass-Through feature allows the media converter to monitor both the fiber and copper RX (receive) ports for loss of signal.In the event of a loss of an RX signal (1), the media converter will automatically disable the TX (transmit) signal (2), thus, “passing through”...

  • Page 3: Operation

    E-TBT-FRL-NLP-01 / E-TBT-FRL-N-01 Operation LED Indicators Use the status LEDs to monitor the media converter operation in the network. Flashing = The media converter is connected to external power. = The 10Base-FL (fiber) link has been established. Flashing = The media converter is connected to external power. = The 10Base-T (copper) link has been established.

  • Page 4: Troubleshooting

    952-941-2322 Declaration of Conformity Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: E-TBT-FRL-NLP-01 & E-TBT-FRL-N-01 Media Converters Part Number: E-TBT-FRL-NLP-01, E-TBT-FRL-NLP-01(SC), E-TBT-FRL-N-01, E-TBT-FRL-N-01(SC) Regulation: EMC Directive 89/336/EEC Purpose:To declare that the E-TBT-FRL-NLP-01 and E-TBT-FRL-N-01 to which this declaration refers is in conformity with the following standards.

  • Page 5: Compliance Information

    Compliance Information UL Listed, C-UL Listed CISPR22/EN55022 Class A CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful...
