Transition Networks E-TBT-FRL-05(L) User Manual

Stand-alone media converter ethernet copper to fiber 10base-t to 10base-fl
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Standard Temperature Models:
The following models are designed for standard temperature environments ranging
from 0°C to 50°C (32°F to 122°F).
Part Number
Port One - Copper Port Two - Duplex Fiber-Optic
E-TBT-FRL-05
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-05(L)
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-05(LH)
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-05(MT)
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-05(SC)
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-05(SM)
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-05(XC)
RJ-45, 10Base-T
100 m (328 ft)*
E-TBT-FRL-05(LW)
RJ-45, 10Base-T
100 m (328 ft)*
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.

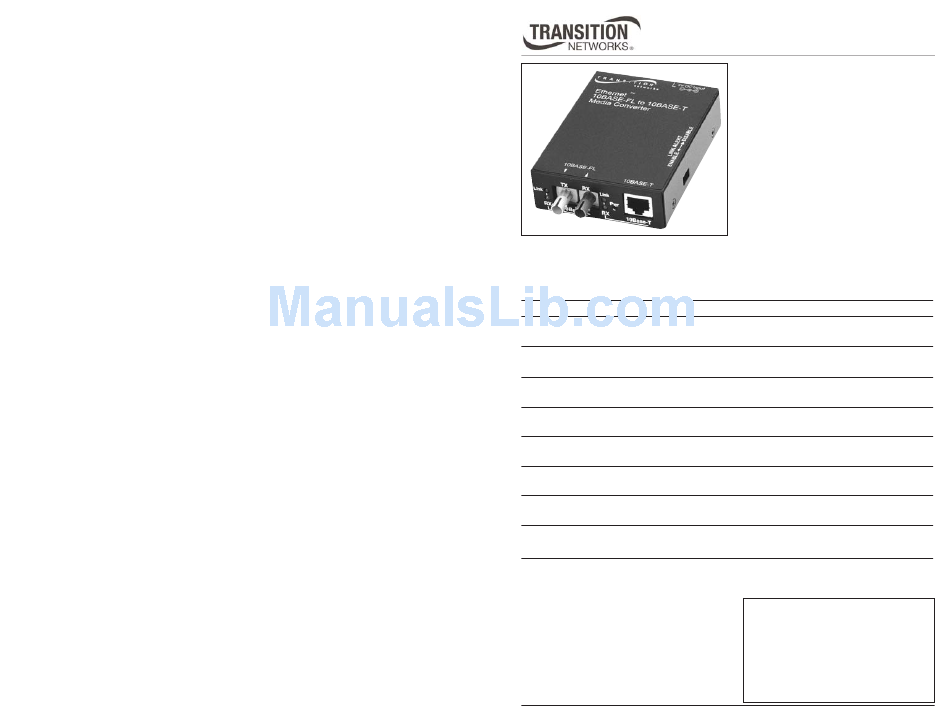

User's Guide
E-TBT-FRL-05
Stand-Alone Media Converter
• Ethernet
• Copper to Fiber
• 10Base-T to 10Base-FL

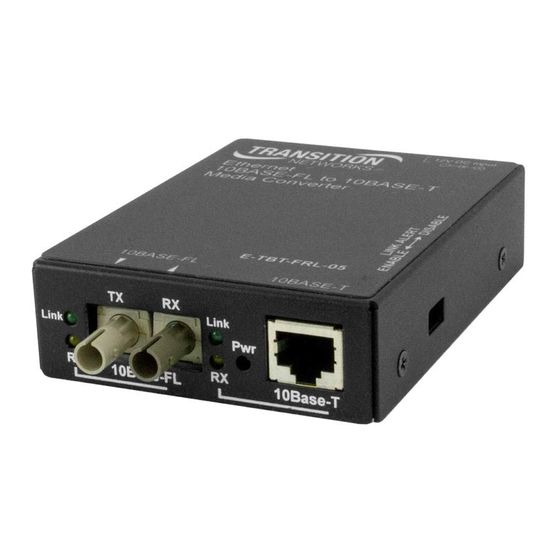

Transition Networks E-TBT-FRL-05
series Ethernet 10Base-T to 10Base-FL
media converters connect 10 Mb/s
twisted-pair copper cable to 10 Mb/s
fiber-optic cable.
ST, 10Base-FL, 850 nm multimode
2 km (1.2 miles)*
ST, 10Base-FL, 1300 nm multimode
5 km (3.1 miles)*
ST, 10Base-FL, 1310 nm singlemode
40 km (24.9 miles)*
MT-RJ , 10Base-FL, 850 nm multimode
2 km (1.2 miles)*
SC , 10Base-FL, 850 nm multimode
2 km (1.2 miles)*
ST , 10Base-FL, 1310 nm singlemode
20 km (12.4 miles)*
SC, 10Base-FL, 1310 nm singlemode
20 km (12.4 miles)*
SC, 10Base-FL, 1550 nm singlemode
80km (49.7 miles)*
Installation . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .5
Technical Specifications . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-TBT-FRL-05(L) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks E-TBT-FRL-05(L)

Summary of Contents for Transition Networks E-TBT-FRL-05(L)

  • Page 1 • Copper to Fiber • 10Base-T to 10Base-FL Transition Networks E-TBT-FRL-05 series Ethernet 10Base-T to 10Base-FL media converters connect 10 Mb/s twisted-pair copper cable to 10 Mb/s fiber-optic cable. Standard Temperature Models: The following models are designed for standard temperature environments ranging from 0°C to 50°C (32°F to 122°F).

  • Page 2: Installation

    Note: The enable/disable switch allows the LinkAlert feature to be disabled. LinkAlert may interfere with the Auto-Negotiation feature of other devices in networks where there are two media converters installed in series. AutoCross™ Feature The AutoCross feature detects and configures the twisted-pair copper port on the E-TBT-FRL-05 media converter to the correct straight-through (MDI) or crossover (MDI-X) configuration.

  • Page 3: Install The Copper Cable

    E-TBT-FRL-05 Installation -- Continued Install the Copper Cable Locate or build 10Base-T compliant copper cables with male, RJ-45 connectors installed at both ends. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the E-TBT-FRL-05 media converter. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (switch, workstation, etc.).

  • Page 4: Technical Specifications

    E-TBT-FRL-05 Technical Specifications Standards IEEE 802.3™ Data Rate 10 Mb/s Case Dimensions 3.9" x 3.0" x 1.0" (99mm x 76mm x 25mm) Shipping Weight 6 oz. (181 g) Power Supply E-TBT-FRL-05, E-TBT-FRL-05(SC), E-TBT-FRL-05(SM), DC Output E-TBT-FRL-05(L), E-TBT-FRL-05(MT), E-TBT-FRL-05(LH), E-TBT-FRL-05(XC), E-TBT-FRL-05(LW): 12VDC, 0.5 A (minimum) E-TBT-FRL-05(HT), E-TBT-FRL-05(SCHT), E-TBT-FRL-05(SMHT), E-TBT-FRL-05(XCHT),...

  • Page 5: Fiber Cable

    E-TBT-FRL-05 Cable Specifications -- Continued The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: <10-9 Singlemode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm Standard Temperature Models: 0°C to 50°C (32°F to 122°F) E-TBT-FRL-05 850 nm multimode Fiber Optic Transmitter Power:...

  • Page 6: Troubleshooting

    E-TBT-FRL-05 Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the power LED on the media converter illuminated? • Is the power adapter the proper voltage and frequency for AC outlet? Refer to “Power Supply”...

  • Page 7: Compliance Information

    Compliance Information UL Listed; C-UL Listed (Canada) CISPR22/EN55022 Class A + EN55024; CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This manual is also suitable for:

E-tbt-frl-05(lw)E-tbt-frl-05(lh)E-tbt-frl-05(mt)E-tbt-frl-05(sc)E-tbt-frl-05(sm)E-tbt-frl-05(xc) ... Show all
