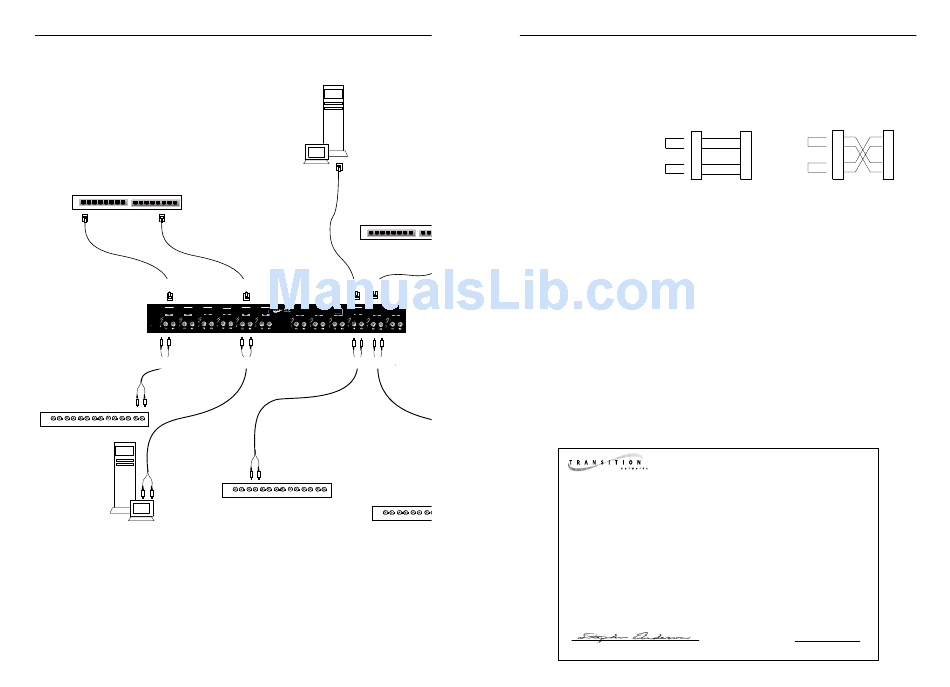

E-TX-FX-XX00 IN THE NETWORK
Switch
Half-Duplex
Full-Duplex
TP LINK 1 TP LINK 2 TP LINK 3
FBR LINK FBR LINK FBR LINK
POWER
ACT ACT ACT ACT
Half-Duplex
Hub
Server
Each media converter port in the multi-port media converter operates
independently over one isolated twisted-pair copper/fiber-optic cable
link. The media converter port receives and transmits network signals in
either full-duplex or half-duplex, depending upon the network devices
to which the media converter port is attached.
NOTE: In Telco option (not shown), the 50-pin Telco connector
concentrates up to 12 UTP connections onto one connector. This
concentration of UTP ports is then broken out for connection to fiber.
Server
Full-Duplex Half-Duplex
TP LINK 4 TP LINK 5 TP LINK 6 TP LINK 7 TP LINK 8 TP LINK 9 TP LINK 10 TP LINK 11 TP LINK 12
FBR LINK FBR LINK FBR LINK FBR LINK FBR LINK
FBR LINK FBR LINK FBR LINK FBR LINK
ACT ACT ACT ACT ACT ACT ACT ACT
Full-Duplex Full-Duplex Half-Duplex
Hub
RJ-45 CONNECTOR
Twisted pair connection requires two active pairs configured as straight
through and/or crossover. The two active pairs in an Ethernet™ network are
pins 1 & 2 and pins 3 & 6. Use only dedicated wire pairs (such as blue/white
& white/blue, orange/white & white/orange) for the active pins.
NOTE: The multi-port media converter AutoCross™ feature allows either straight-
through or crossover twisted-pair copper cable to be used when connecting to
10BASE-T devices. AutoCross™ determines the characteristics of cable
H
connections to the media converter port and then automatically configures the
port to link up.

TECHNICAL SPECIFICATIONS

Standards
Case Dimensions
Environment
Power
Warranty
Name of Mfg:
H
Model:
Part Number(s):
Regulation:
Purpose: To declare that the E-TX-FX-0600, E-TX-FX-1200 or E-TEL-1200 to
which this declaration refers is in conformity with the following standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IE C 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
Straight Through
1 1
Twisted Pair #1 Twisted Pair #1
2 2
3 3
Twisted Pair #2 Twisted Pair #2
6
6
IEEE 802.3 1998 Edition
19.0" x 8.5" x 1.5" (483 mm x 216 mm x 38 mm)
Temperature: 0-50°C (32° to 122° F )
Humidity 10-95%, non condensing
Altitude 0-10,000 feet
100-240 VAC, 50/60 Hz., 1 Amp (maximum)
Lifetime
DECLARATION OF CONFORMITY
Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
E-TX-FX-xx00, E-TEL-xx00 Series Multi-Port Media Converter
E-TX-FX-0600, E-TX-FX-0600(SC), E-TX-FX-0600(SM), E-TX-FX-0600(LH),
E-TX-FX-0600(MT), E-TX-FX-1200, E-TX-FX-1200(SC), E-TX-FX-1200(SM),
E-TX-FX-1200(LH), E-TX-FX-1200(MT), E-TEL-1200, E-TEL-1200(SC),
E-TEL1200(SM), E-TEL-1200(LH), E-TEL-1200(MT)
EMC Directive 89/336/EEC
_September 3, 1999_____
Date
Crossover
1 1
2 2
3 3
6
6
