Transition Networks E-TBT-FRL-N-02 User Manual

Part Number Port One - Copper
10Base-T
RJ-45
E-TBT-FRL-N-02
100 m (328 ft)*
RJ-45
E-TBT-FRL-N-02 (SC)
100 m (328 ft)*
E-TBT-FRL-N-02 (MT) RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
User's Guide
E-TBT-FRL-N-02

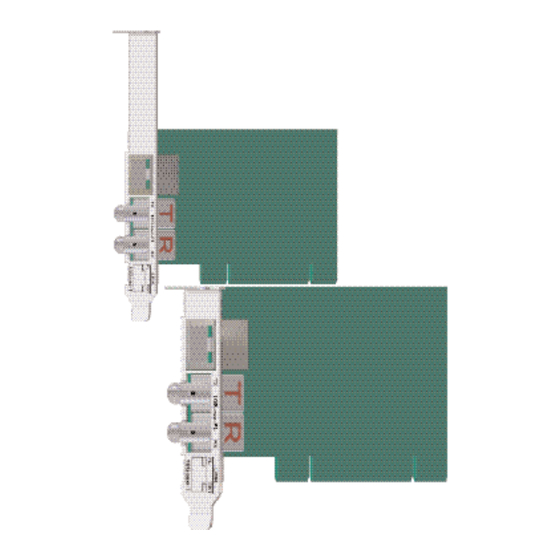

PCI Media Converter
• Ethernet
• Copper to Fiber
• 10Base-T to 10Base-FL
Transition Networks E-TBT-FRL-N-02 series
media converters are 10Base-T/10Base-FL
devices that connect 10Base-T copper to 10Base-
FL fiber. The E-TBT-FRL-N-02 is PCI
(Peripheral Component Interconnect) powered;
designed to install directly in a PC workstation or
file server, and insert into any slot on a standard
PCI. No additional power supply is needed since
each PCI slot has power.
Port Two - Fiber-Optic
10Base-FL
ST, 850 nm multimode
2 km (1.2 miles)*
SC, 850 nm multimode
2 km (1.2 miles)*
MT-RJ, 850 nm multimode
2 km (1.2 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . .7
Compliance Information . . . . . . . .8
