Installation

Set the Jumper
• The jumper is located on the circuit board.
• Use small needle-nose pliers to set the jumper.
Hardware The media converter settings such as
AutoCross and Link Pass-Through cannot be
changed.
Software The media converter settings are determined
by the most-recently saved, on-board
microprocessor settings.

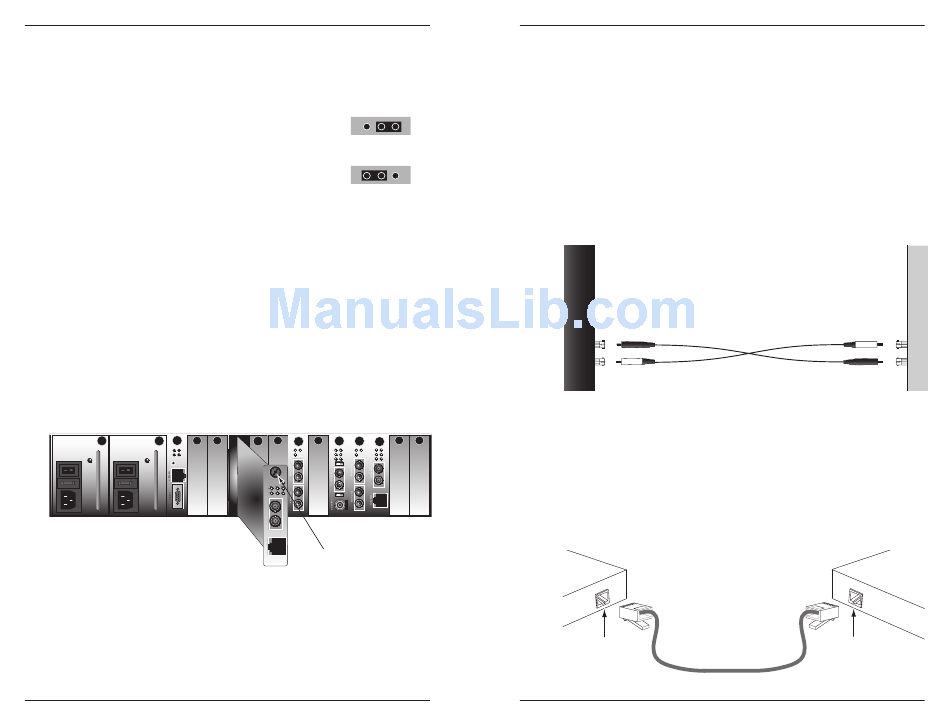

Install the Slide-In-Module

CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing the media converter. Failure to observe this
caution could result in damage to, and subsequent failure of, the media
converter.
To install the CSETF10xx-205 media converter slide-in-module:
1. Locate an empty installation slot on the PointSystem™ chassis.
2. Carefully slide the slide-in-module into the installation slot, aligning the
module with the installation guides.
3. Ensure that the module is firmly seated inside the chassis.
4. Push in and rotate the attached panel fastener screw clockwise to secure
the module to the chassis front.
TX PWR
RX LNK
R
E
S
E
T
INIT
TERM
CPSMM120
2
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
S
Hardware Mode
S
Software Mode
PWR PWR PWR
PWR
LKS LKS LA LKS SPD PWR
LNK
LKM LKM RXF LKM FRX FLNK
RXC COL CRX CLNK
TX TX TX
Link Alert
E D
TX
PWR
RX RX RX
ACT 100 10 RX
TX
TX TX
SX
TX
0 50½
RX RX RX
CFMFF100 CFMFF100 CETCF100 CFMFF100 CFETF100
panel fastener screw
Installation

Installing the Cable

Fiber
1. Locate or build 10/100Base-SX compliant fiber cable with male, two-
stranded TX to RX connectors installed at both ends.
H
2. Connect the fiber cables to the CSETF10xx-205 media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
H
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
RX
TX
Copper
1. Locate or build 10/100Base-TX compliant copper cables with male, RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the CSETF10xx-205 media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (switch, workstation, etc.).
RJ-45 port
on the media
converter
