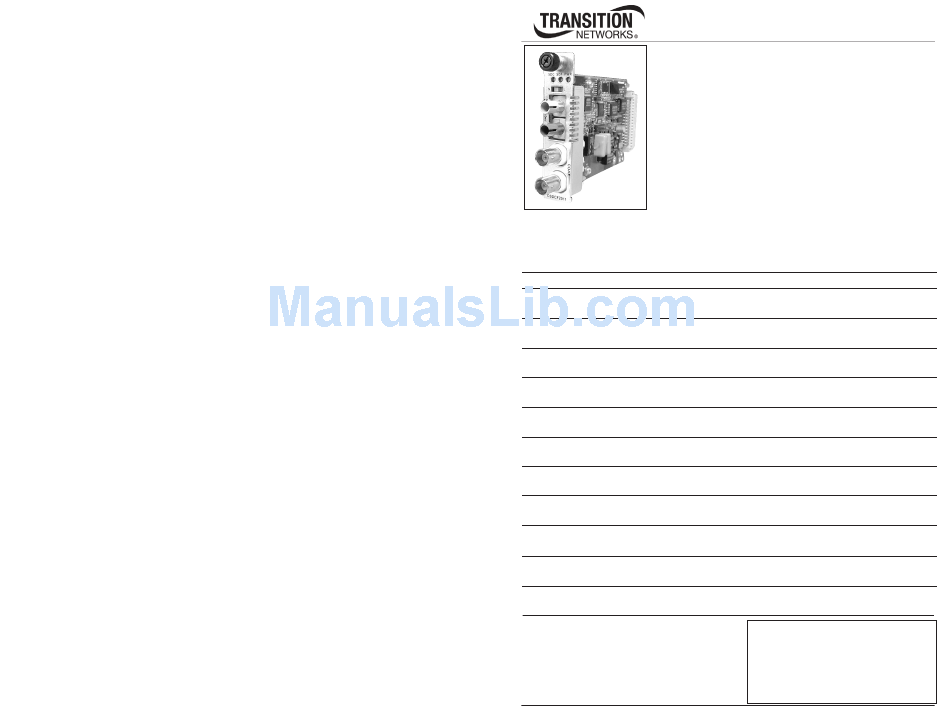

User's Guide
CSDTF30xx-11x
Slide-in-Module Device
•
E1 with Remote Management
•
Coax (BNC) to Fiber
Transition Networks CSDTF30xx-11x series Device,
designed to be installed into the Transition Networks
PointSystem™ chassis, encodes and decodes E1 coax copper
signals over fiber optic cable to extend the distance and
transmission reliability of high-speed E1 data traffic. The
CSDTF30xx-11x is framing independent (as ESF vs. D4)
and supports all common line codes (e.g., AMI, B8ZS,
HDB3). The CSDTF30xx-11x is designed to be installed in pairs. For example, install
one CSDTF3011-115 as the local Device and another CSDTF3011-115 as the remote
Device.
Part Number
Port One - Copper
75 ohm BNC coax
CSDTF3011-115
100 m (328 ft.)*
75 ohm BNC coax
CSDTF3012-115
100 m (328 ft.)*
CSDTF3013-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3014-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3015-115
75 ohm BNC coax
100 m (328 ft.)*
75 ohm BNC coax
CSDTF3016-115
100 m (328 ft.)*
75 ohm BNC coax
CSDTF3017-115
100 m (328 ft.)*
CSDTF3018-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3022-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3025-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3027-115
75 ohm BNC coax
100 m (328 ft.)*
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network.
Port Two - Duplex Fiber-Optic
ST, 850 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
8 km (4.8 miles)*
SC, 850 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
MT-RJ, 1310 nm single mode
20 km (12.4 miles)*
ST, 1300 nm multimode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . . . . .9
Compliance Information . . . . . . . . .12
Advertisement
Table of Contents
Related Manuals for Transition Networks CSDTF3011-115
Summary of Contents for Transition Networks CSDTF3011-115
- Page 1 CSDTF30xx-11x is framing independent (as ESF vs. D4) and supports all common line codes (e.g., AMI, B8ZS, HDB3). The CSDTF30xx-11x is designed to be installed in pairs. For example, install one CSDTF3011-115 as the local Device and another CSDTF3011-115 as the remote Device. Part Number...
-
Page 2: Installation
CSDTF30xx-11x Part Number Port One - Copper Port 2 - Simplex Fiber Optic CSDTF3029-115 75 ohm BNC coax SC, 1310 mn (TX)/1550 nm (RX) 100 m (328 ft.)* single mode, 20 km (12.4 miles)* 75 ohm BNC coax SC, 1550 mn (TX)/1310 nm (RX) CSDTF3029-116 100 m (328 ft.)* single mode, 20 km (12.4 miles)*... -
Page 3: Install The Copper Cable
CSDTF30xx-11x Installation -- Continued Set the Loop-Back Switch Hardware Mode: The loop-back switch is located on the front panel of the Device and is used for installation and network debugging procedures. To set the switch, use a small flat-blade screwdriver or a similar device (see the drawing to the right). -
Page 4: Operation
The CSDTF30xx-11x chassis Device can remotely manage the SSDTF30xx-11x, the stand-alone version of the Device, or another CSDTF30xx-11x. For example, a local CSDTF3011-115 Device (that is installed in a managed Transition Networks PointSystem™ chassis) is connected, via fiber, to a remote SSDTF3011-115 Device. An... -
Page 5: Technical Specifications
0 to 10,000 feet Lifetime Declaration of Conformity Transition Networks 10900 Red Circle Drive, Minnetonka MN 55343 U.S.A. CSDTF30xx-11x Series Device CSDTF3011-115, CSDTF3012-115, CSDTF3013-115, CSDTF3014-115, CSDTF3015-115, CSDTF3016-115, CSDTF3017-115, CSDTF3018-115, CSDTF3022-115, CSDTF3025-115, CSDTF3027-115, CSDTF3029-115, CSDTF3029-116, CSDTF3029-117, CSDTF3029-118 EMC Directive 89/336/EEC July 2008... -
Page 6: Troubleshooting
CSDTF30xx-11x Troubleshooting Is the PWR (Power) LED illuminated? • Ensure the Device is inserted properly into the chassis.` • Ensure the power cord is properly installed in the chassis and in the grounded outlet. • Ensure the grounded outlet provides power. •... -
Page 7: Compliance Information
Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
