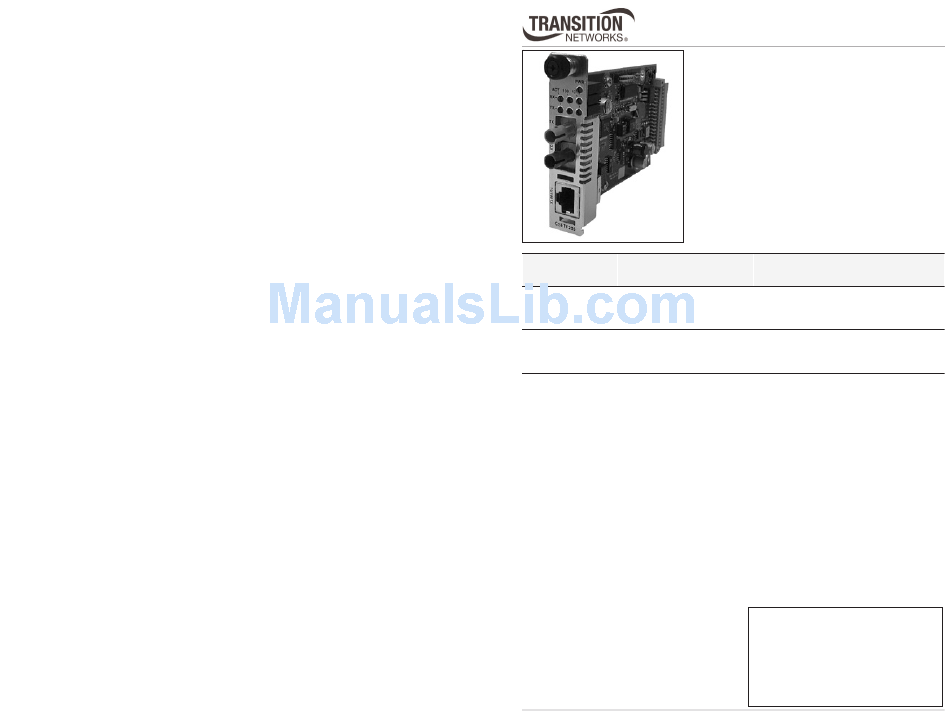

User's Guide
CSETF10xx-205
Slide-in-Module Media Converter
• Ethernet and Fast Ethernet
• 10/100Base-TX to 10/100Base-SX
Transition Networks CSETF10xx-205 series
Ethernet and Fast Ethernet media converters
connect 10/100Base-TX twisted-pair copper cable
to 10/100Base-SX fiber-optic cable. The
CSETF10xx-205 is also designed to be installed in
a Transition Networks PointSystem™ chassis.
Part Number
Port One - Copper
10/100Base-TX
CSETF1011-205
RJ-45
80 m (262 ft)*
CSETF1013-205
RJ-45
80 m (262 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
The stand alone version of this media converter is SSETF10xx-205. For more
information, see the SSETF10xx-205 user's guide on-line at: www.transition.com.
Port Two - Fiber-Optic
10/100Base-SX
ST, 850 nm multimode
2 km (1.2 mi.)* @ 10 Mb/s
60 m (197ft.)* @ 100 Mb/s
SC, 850 nm multimode
2 km (1.2 mi.)* @ 10 Mb/s
60 m (197 ft.)* @ 100 Mb/s
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12
Advertisement
Table of Contents
Related Manuals for Transition Networks CSETF1011-205
Summary of Contents for Transition Networks CSETF1011-205
-
Page 1: Table Of Contents
Transition Networks PointSystem™ chassis. Part Number Port One - Copper Port Two - Fiber-Optic 10/100Base-TX 10/100Base-SX CSETF1011-205 RJ-45 ST, 850 nm multimode 80 m (262 ft)* 2 km (1.2 mi.)* @ 10 Mb/s 60 m (197ft.)* @ 100 Mb/s... -
Page 2: Installation
CSETF10xx-205 Installation Set the Jumper • The jumper is located on the circuit board. • Use small needle-nose pliers to set the jumper. Hardware The media converter settings such as AutoCross and Link Pass-Through cannot be changed. Software The media converter settings are determined by the most-recently saved, on-board microprocessor settings. -
Page 3: Operation
CSETF10xx-205 Installation -- Continued Power the Media Converter The CSETF10xx-205 slide-in-module is powered through the Transition Networks PointSystem™ chassis. Operation Status LEDs Use the status LEDs to monitor the CSETF10xx-205 media converter operation in the network. Power On = Connection to the external AC or DC power. -
Page 4: Copper Cable
62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm Wavelength: 850 nm multimode Attenuation: <3.75 dB/km @ 850 nm CSETF1011-205 (100 Mb/s) Fiber Transmitter Power: min: -19.0 dBm Fiber Receiver Sensitivity: min: -24.0 dBm Link Budget: 5.0 dB CSETF1011-205 (10 Mb/s) Fiber Transmitter Power: min: -19.0 dBm... -
Page 5: Technical Specifications
CSETF10xx-205 Technical Specifications For use with Transition Networks Model CSETF10xx-205 or equivalent. Standards: IEEE 802.3™ Data Rate: 10 Mb/s, 100 Mb/s Dimensions: 3.4" x 0.87" x 5" (86 mm x 22 mm x 182 mm) Weight: 3 oz (91 g) (approximately) Power Consumption: 3.6 watts MTBF... -
Page 6: Contact Us
6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: CSETF10xx-205 Series Media Converters Part Number(s): CSETF1011-205, CSETF1013-205 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CSETF10xx-205 t o which this declaration refers is in conformity with the following standards. -
Page 7: Compliance Information
Compliance Information CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
