User's Guide
CSDTF30xx-11x
Slide-in-Module Media Converter
•
E1 with Remote Management
•
Coax (BNC) to Fiber

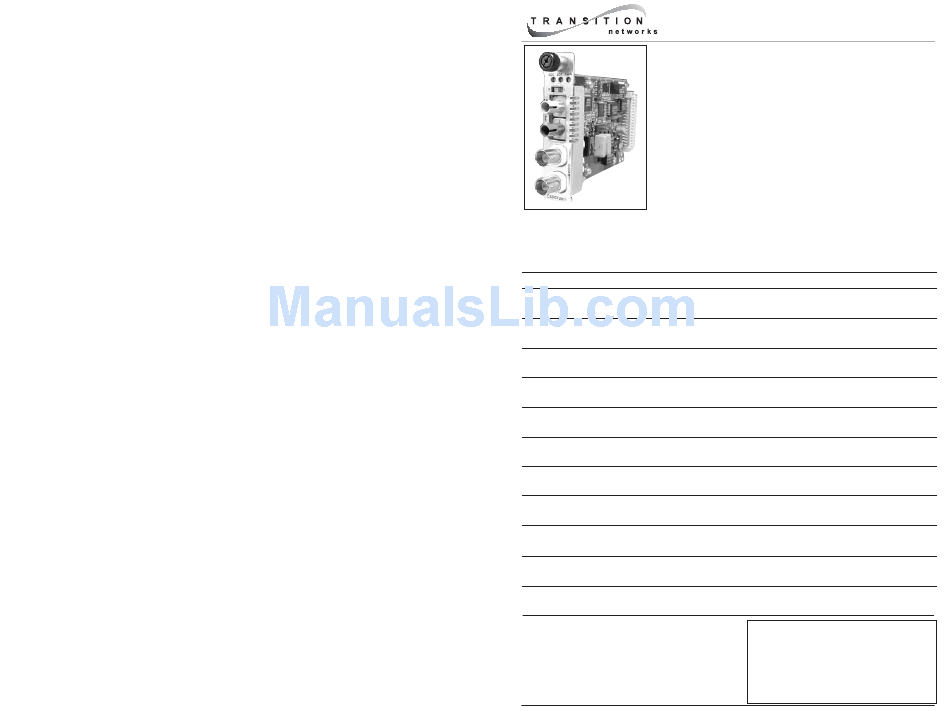

Transition Networks CSDTF30xx-11x series media
converter, designed to be installed into the Transition
Networks PointSystem™ chassis, encodes and decodes
E1 coax copper signals over fiber optic cable to extend
the distance and transmission reliability of high-speed E1
data traffic. The CSDTF30xx-11x is framing independent
(as ESF vs. D4) and supports all common line codes (e.g., AMI, B8ZS, HDB3).
The CSDTF30xx-11x is designed to be installed in pairs. For example, install one
CSDTF3011-115 as the local media converter and another CSDTF3011-115 as the
remote media converter.
Part Number
Port One - Copper
CSDTF3011-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3012-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3013-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3014-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3015-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3016-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3017-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3018-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3022-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3025-115
75 ohm BNC coax
100 m (328 ft.)*
CSDTF3027-115
75 ohm BNC coax
100 m (328 ft.)*
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network.
Port Two - Duplex Fiber-Optic
ST, 850 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
8 km (4.8 miles)*
SC, 850 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
MT-RJ, 1310 nm single mode
20 km (12.4 miles)*
ST, 1300 nm multimode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Compliance Information . . . . . . .12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CSDTF30xx-11x
Summary of Contents for Transition Networks CSDTF30xx-11x
- Page 1 The CSDTF30xx-11x is framing independent (as ESF vs. D4) and supports all common line codes (e.g., AMI, B8ZS, HDB3). The CSDTF30xx-11x is designed to be installed in pairs. For example, install one CSDTF3011-115 as the local media converter and another CSDTF3011-115 as the remote media converter.
-
Page 2: Installation
CSDTF30xx-11x Installation Part Number Port One - Copper Port 2 - Simplex Fiber Optic -- Continued CSDTF3029-115 75 ohm BNC coax SC, 1310 mn (TX)/1550 nm (RX) CAUTION: Wear a grounding device and observe electrostatic discharge 100 m (328 ft.)* single mode, 20 km (12.4 miles)*... - Page 3 CETCF100 CFMFF100 CFETF100 Panel Fastener Screw Power the Media Converter The CSDTF30xx-11x slide-in-module media converter is powered through the PointSystem™ chassis. 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
-
Page 4: Operation
See the SNMP section (below) for a list of commands that CSDTF3013-115 850 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm can be used to monitor and manage the CSDTF30xx-11x CSDTF115 Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm and SSDTF30xx-11x converters. -
Page 5: Technical Specifications
EMC Directive 89/336/EEC CAUTION: Visible and invisible laser radiation when open. Do not stare Purpose: To declare that the CSDTF30xx-11x to which this declaration refers is into the beam or view directly with optical instruments. in conformity with the following standards. -
Page 6: Troubleshooting
CSDTF30xx-11x Troubleshooting Is Data Transfer Failing? Is the PWR (Power) LED illuminated? • Verify the local copper connection by starting a local copper loop- back (hardware mode: set the loop-back switch on the local media • Ensure the media converter is inserted properly into the chassis.` converter to “CL”, software mode: enter the local copper loop-back... -
Page 7: Compliance Information
All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2002-2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
