CMEFG10xx-1xx / SMEFG10xx-1xx
Operation
-- Continued
Fiber status LEDs
The status LEDs for the 1000Base-SX-LX fiber connection (FD and LACT) as
well as the LED for the power (PWR) are located next to the fiber port.
PWR ON Connection to external AC power.
LACT ON A link has been established for the fiber connection.
FLASHING The fiber connection is transmitting/receiving data.
FD ON Full-duplex mode for the fiber connection.
OFF Half-duplex mode for the fiber connection.

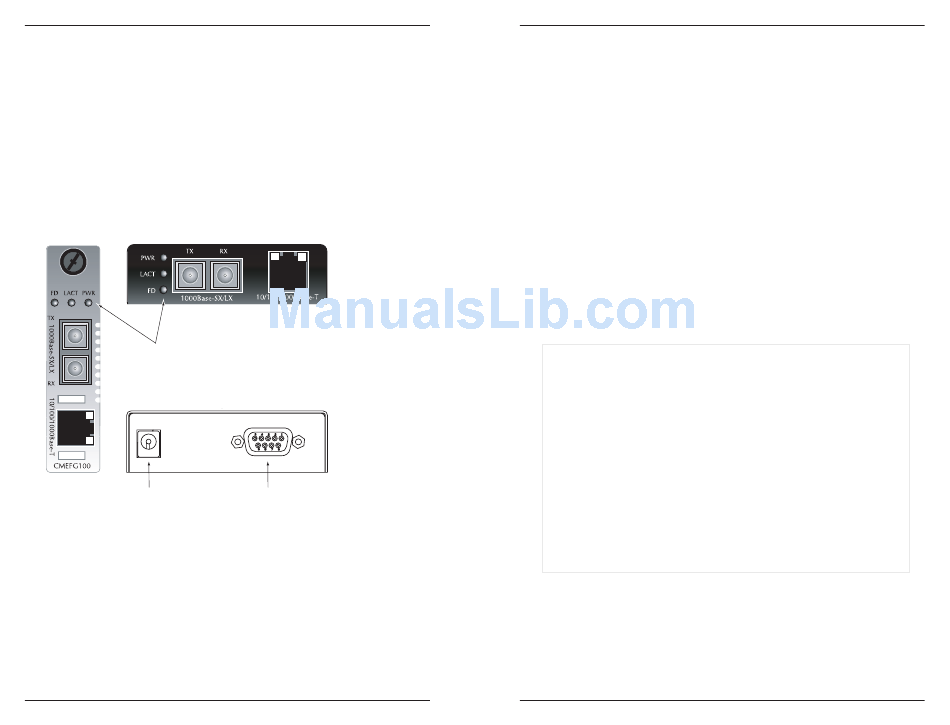

CMEFG10xx-1xx SMEFG10xx-1xx
Power & Fiber LEDs
SMEFG10xx-1xx (back panel)
Power Port
DB-9 port on the SMEFG10xx-1xx
The SMEFG10xx-1xx stand-alone media converter is equipped with an
RS-232 DB-9 port. This port is included to allow the user to quickly configure
network settings on the remote SMEFG10xx-1xx converter.
8
24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
DB-9 Port
Operation
-- Continued
DB-9 port on the SMEFG10xx-1xx
To configure the network settings:
1. Connect the SMEFG10xx-1xx DB-9 port to a terminal or terminal
emulator using a null modem RS-232 DB-9 serial port cable.
2. Using methods appropriate to the attached terminal, verify that the serial
port parameters of the attached terminal match those of the SMEFG10xx-
1xx. If necessary, modify the port parameter values for the attached
terminal. The default serial port parameter values for the media converter
are:
bits per second 38400
stop bits 1
data bits 8
parity NONE
3. Power up the media converter.
4. Press the [enter]/[return] key (or enter the password) to bring up a
command-line prompt on the attached terminal or terminal emulator.
The following will appear on the screen after a successful login:
Login successful
Uptime (D:H:M:S) 00:00:22:06
Group string: <empty>
Commands:
n - Display firmware revision and serial number
b - Display port statistics (link state, speed,
duplex)
d - Display fiber DMI statistics
l - Display learned address database
gXXXXXXXX - Change group string (Maximum of 64
characters)
pXXXXXXXX - Change password (Maximum of 8 characters)
f - Restore device to factory defaults
r - Reset device
s - Disable serial port
<return> - Refresh screen
q - Logout
%
Use the commands listed above to configure the desired network settings on
the remote SMEFG10xx-1xx media converter.
Note: Please note that the "group string" feature does not function when
configuring network settings via the DB-9 port. For additional
information on this feature, contact Transition Networks Technical
Support.
