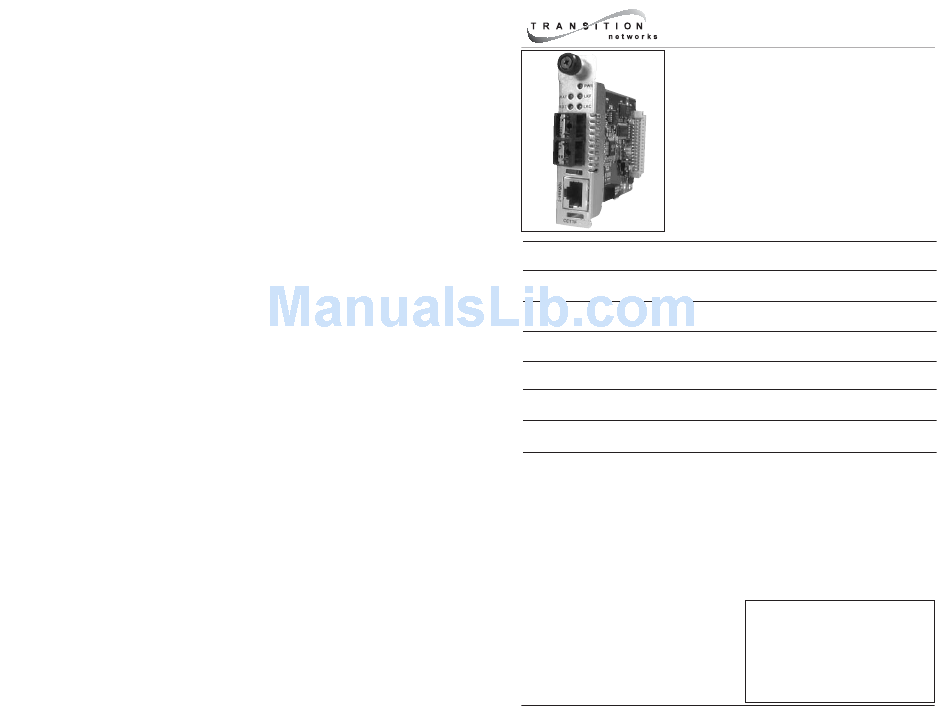

User's Guide
CETTF10xx-200
Slide-in-Module Media Converter
• Ethernet
• Copper to Fiber
• 10Base-T to 10Base-FL
Transition Networks CETTF10xx-200 series Ethernet
10Base-T to 10Base-FL media converters (designed
to be installed in a PointSystem™ chassis) connect
10Base-T twisted-pair copper cable to multimode or
single mode 10Base-FL fiber-optic cable.
Part Number
Port One - Copper
10Base-T
CETTF1011-200 RJ-45
100 m (328 m)*
CETTF1012-200 RJ-45
100 m (328 m)*
CETTF1013-200 RJ-45
100 m (328 m)*
CETTF1014-200 RJ-45
100 m (328 m)*
CETTF1022-200 RJ-45
100 m (328 m)*
CETTF1027-200 RJ-45
100 m (328 m)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
Port Two - Fiber-Optic
10Base-FL
ST, 850 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
20 km (12.4 miles)*
SC, 850 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
ST, 1310 nm single mode
40 km (24.9 miles)*
ST, 1300 nm multimode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CETTF10XX-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CETTF10XX-200

Summary of Contents for Transition Networks CETTF10XX-200

  • Page 1 Slide-in-Module Media Converter • Ethernet • Copper to Fiber • 10Base-T to 10Base-FL Transition Networks CETTF10xx-200 series Ethernet 10Base-T to 10Base-FL media converters (designed to be installed in a PointSystem™ chassis) connect 10Base-T twisted-pair copper cable to multimode or single mode 10Base-FL fiber-optic cable.

  • Page 2: Installation

    Installation Install the Slide-in-Module CAUTION: Wear a grounding device and observe electrostatic discharge precautions when installing the CETTF10xx-200 slide-in-module media converter. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. To install the CETTF10xx-200 slide-in-module media converter.

  • Page 3: Operation

    Locate or build IEEE 803.2 compliant 10Base-FL fiber cable with male, ™ two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the CETTF10xx-200 media converter as described: • Connect the male TX cable connector to the female TX port.

  • Page 4: Product Features

    ™ The AutoCross feature detects and configures the twisted-pair copper port on the CETTF10xx-200 media converter to the correct straight-through (MDI) or crossover (MDI-X) configuration. This feature allows either MDI or MDI-X cable to connect the media converter to devices such as hubs, transceivers, or network interface cards (NICs).

  • Page 5: Copper Cable

    *Manufacturer’s rated ambient temperature: Tmra range for this media converter depends on the physical characteristics and the installation configuration of the Crossover Cable Transition Networks PointSystem™ chassis in which this media converter will be installed. The information contained in this user’s guide is subject to change. For the most up-to-date version, see the user’s guide on line at: www.transition.com.

  • Page 6: Troubleshooting

    CETTF1022-200, CETTF1027-200 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CETTF10xx-200 to which this declaration refers is in conformity with the following standards. CISPR 22 :1993; EN 55022:1994+A1:1995+A2:1997; EN 55024:1998 Class A & B; FCC Part 15 Subpart B; EN 61000-3-2:1995; EN61000-3-3:1995 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

  • Page 7: Compliance Information

    All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2000, 2001, 2004, 2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
