8.3

Adjusting the drawbar height

Pos : 77.21 /BA/Ers tinbetriebnahme/Groß pac kenpressen/Einstell ung der Anhängehöhe 4x4 @ 108 \mod_1334732430989_78.doc x @ 970024 @ @ 1

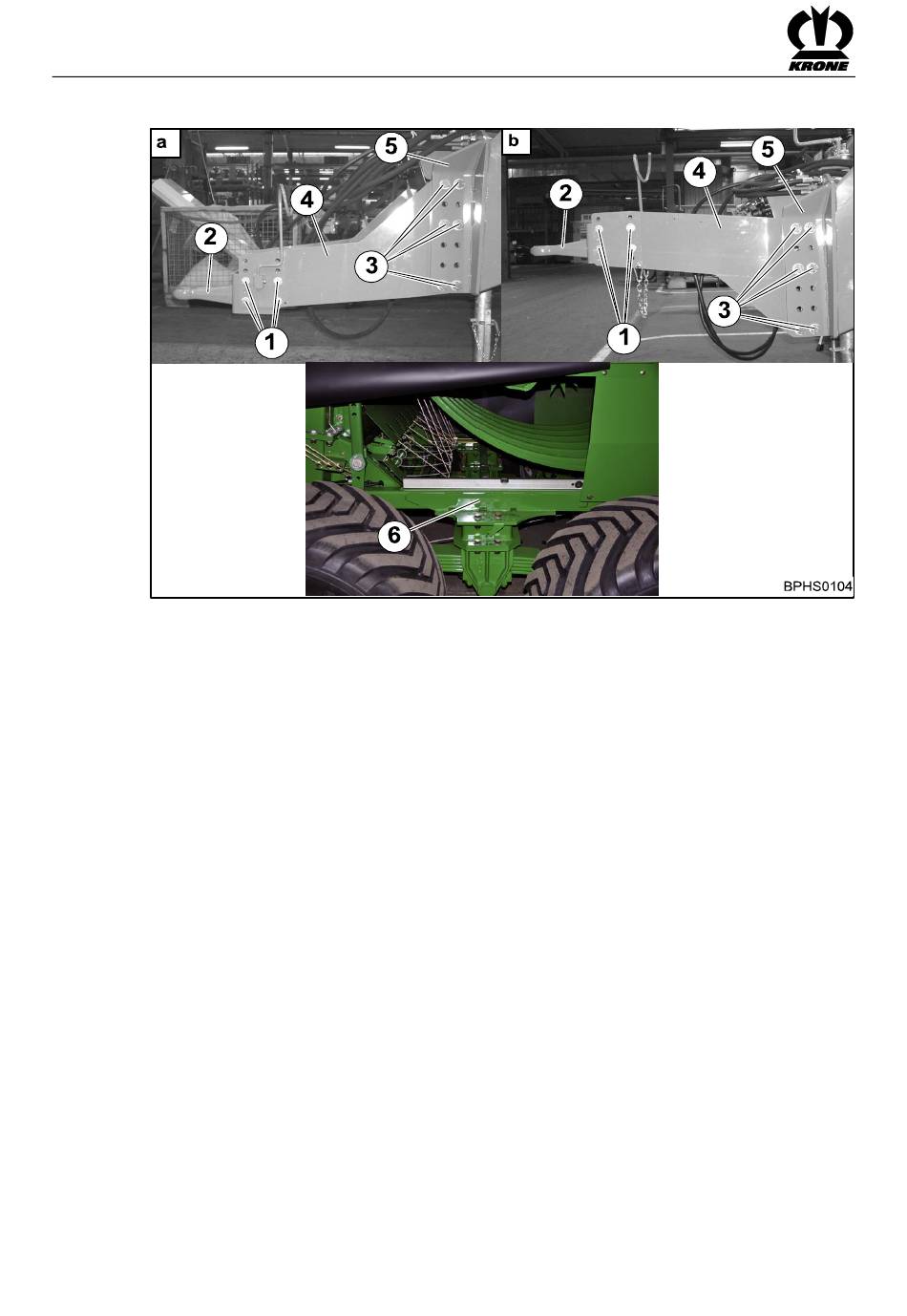

Fig. 46
Always adjust the hitching device of the machine to the tractor used. Always couple the
machine horizontally to ensure that the pick-up collects the crop evenly. The cross-member is
used as a reference edge to align the machine (6).
Before making the setting:
• Place the machine on the parking support
• Secure the machine against the possibility of rolling back.
• Uncouple the machine from the tractor
• Using a spirit level, align the machine horizontally
Setting the towing ring:
• Unscrew the screws (1)
• Adjust the height of the towing ring (2) to the height of the tractor hitch
• Fit and tighten the screws (1)
