Installation; Set The Dip Switches; Copper And Fiber Ports - Transition Networks CBFTF1011-140 User Manual

CBFTF10xx-14x
Part Number Copper - four (4) ports
10Base-T/100Base-TX
CBFTF1029-140 RJ-45
100 m (328 ft)*
CBFTF1029-141 RJ-45
100 m (328 ft)*
CBFTF1029-142 RJ-45
100 m (328 ft)*
CBFTF1029-143 RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network. (TX) = transmit (RX) = receive
** CBFTF1029-140 and CBFTF1029-141 are intended to be installed in the same
network where one is the local converter and the other is the remote.
*** CBFTF1029-142 and CBFTF1029-143 are intended to be installed in the same
network where one is the local converter and the other is the remote.
The stand alone version of this media converter is SBFTF10xx-14x. For more
information, see the SBFTF10xx-14x user's guide on-line at: www.transition.com.

Installation

Copper and Fiber Ports

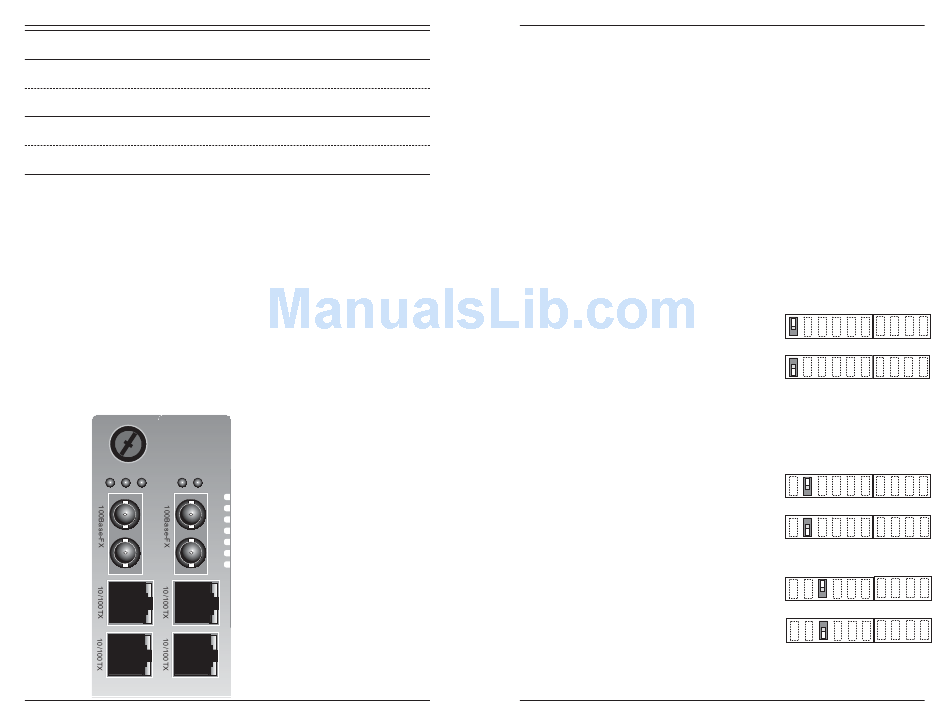

The figure below illustrates the locations of the four (4) twisted-pair copper ports
and the two (2) fiber ports.
FD LACT PWR FD LACT
Fiber Port 1
(F1)
Twisted-Pair
Port 1 (TP1)
Twisted-Pair
Port 2 (TP2)
CBFTF140
2
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Fiber-Optic - two (2) ports
Single Fiber
SC, 1310 mn (TX)/1550 nm (RX)
single mode, 20 km (12.4 miles
SC, 1550 mn (TX)/1310 nm (RX)
single mode, 20 km (12.4 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
single mode, 40 km (24.8 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
single mode, 40 km (24.8 miles)*
Fiber Port 2
(F2)
Twisted-Pair
Port 3 (TP3)
Twisted-Pair
Port 4 (TP4)
Installation
-- Continued

Set the Dip Switches

The dip switches are located on the side of the media converter. Use a small,
flat blade screwdriver or a similar device to set each dip switch.
"SW1" switches 1 - 6
Dip switches 1, 2, and 3 apply only to twisted-pair copper port 1 (TP1).
Dip switch 4 applies to fiber port 1 (F1).
Dip switch 5 applies to all twisted-pair copper ports (TP1, TP2, TP3, TP4).
Dip switch 6 applies to both fiber ports (F1, F2).
"Config. Switches" 1 - 4
Dip switches 1, 2, 3, and 4 apply only to twisted-pair copper port 2 (TP2).
NOTE: Switches 1, 2, and 3 apply only to twisted-pair copper port 1 (TP1).
1. Twisted-Pair Auto-Negotiation
UP (Enabled) - The media converter "advertises"
ALL rate and mode capabilities to the network:
• 100Mb/s full-duplex • 100Mb/s half-duplex,
• 10Mb/s full-duplex • 10Mb/s half-duplex.
DOWN (Disabled) - The bridging media converter
does not "advertise" the rate and mode
capabilities to the network. Switches 2 and 3 are
then used to set the twisted-pair rate and mode.
2. Twisted-Pair Rate
UP (100Base-TX) - Sets the twisted-pair rate to
100Base-TX.
DOWN (10Base-T) - Sets the twisted-pair rate to
10Base-T.
3. Twisted-Pair Mode
UP (Full-Duplex) - The twisted-pair cable
distances are constrained by the cable
requirements (see pages 1 and 2).
DOWN (Half-Duplex): - The twisted-pair cable
distances are constrained by the 512-Bit Rule (see
page 9).
