Transition Networks CCSF30XX-100 User Manual

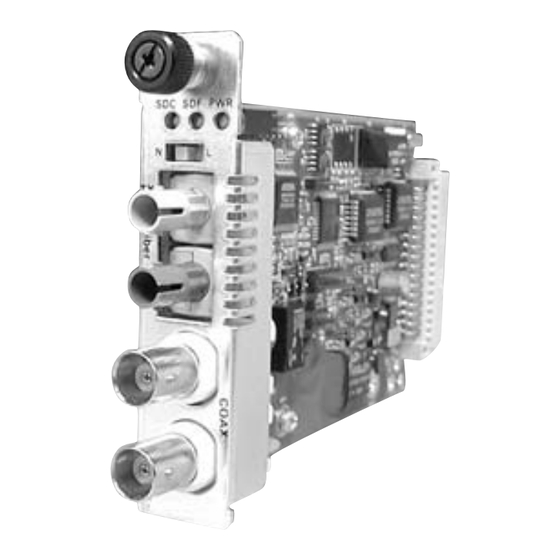

Slide-in-module media converter, ds3 or t3 / e3, coax (bnc) to fiber
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

User's Guide
CCSCF30xx-10x
Slide-in-Module Media Converter
•
•
Transition Networks CCSCF30xx-10x series media
converters encode and decode DS3 or E3 coax
copper signals over fiber optic cable to extend the
distance and transmission reliability of high-speed
DS3 or E3 data traffic. The CCSCF30xx-10x,
which is designed to be installed in a Transition
Networks PointSystem™ chassis, also connects
remote locations via T3/E3 cable.
Part Number
Port One - Copper
CCSCF3011-100
75 ohm coax (BNC)
CCSCF3013-100
75 ohm coax (BNC)
CCSCF3014-100
75 ohm coax (BNC)
CCSCF3015-100
75 ohm coax (BNC)
CCSCF3016-100
75 ohm coax (BNC)
CCSCF3017-100
75 ohm coax (BNC)
CCSCF3018-100
75 ohm coax (BNC)
CCSCF3019-100
75 ohm coax (BNC)
CCSCF3029-100 ** 75 ohm coax (BNC)
NOTE: The SCSCF30xx-10x model is the stand-alone version of the media
converter.
For more information, see the SCSCF30xx-10x user's guide on-line at
www.transition.com.
*Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network.
DS3 or T3 / E3
Coax (BNC) to Fiber
Port Two - Duplex Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
LC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm (TX)/1550 nm (RX)
single mode, 20 km (12.4 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Compliance Information . . . . . . .12
