„ Smart device operation
Auto configuration and auto area learn can be executed from the setting app.

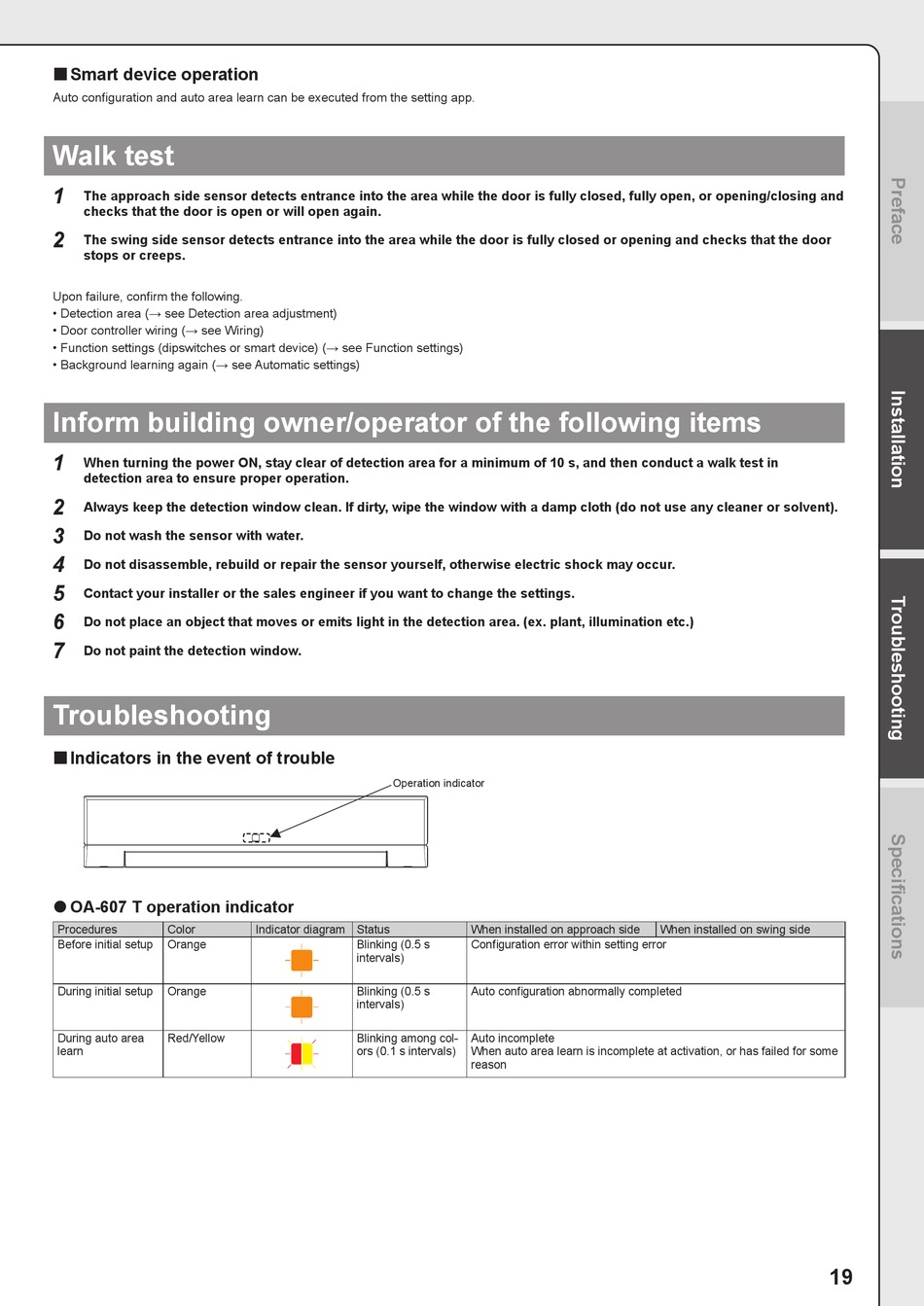

Walk test

1
The approach side sensor detects entrance into the area while the door is fully closed, fully open, or opening/closing and
checks that the door is open or will open again.
2
The swing side sensor detects entrance into the area while the door is fully closed or opening and checks that the door
stops or creeps.
Upon failure, confirm the following.
• Detection area (→ see Detection area adjustment)
• Door controller wiring (→ see Wiring)
• Function settings (dipswitches or smart device) (→ see Function settings)
• Background learning again (→ see Automatic settings)

Inform building owner/operator of the following items

1
When turning the power ON, stay clear of detection area for a minimum of 10 s, and then conduct a walk test in
detection area to ensure proper operation.
2
Always keep the detection window clean. If dirty, wipe the window with a damp cloth (do not use any cleaner or solvent).
3
Do not wash the sensor with water.
4
Do not disassemble, rebuild or repair the sensor yourself, otherwise electric shock may occur.
5
Contact your installer or the sales engineer if you want to change the settings.
6
Do not place an object that moves or emits light in the detection area. (ex. plant, illumination etc.)
7
Do not paint the detection window.

Troubleshooting

„ Indicators in the event of trouble
z OA-607 T operation indicator
Procedures
Color
Before initial setup
Orange
During initial setup
Orange
During auto area
Red/Yellow
learn
Operation indicator
Indicator diagram Status
Blinking (0.5 s
intervals)
Blinking (0.5 s
intervals)
Blinking among col-
ors (0.1 s intervals)
When installed on approach side
Configuration error within setting error
Auto configuration abnormally completed
Auto incomplete
When auto area learn is incomplete at activation, or has failed for some
reason
When installed on swing side
19
