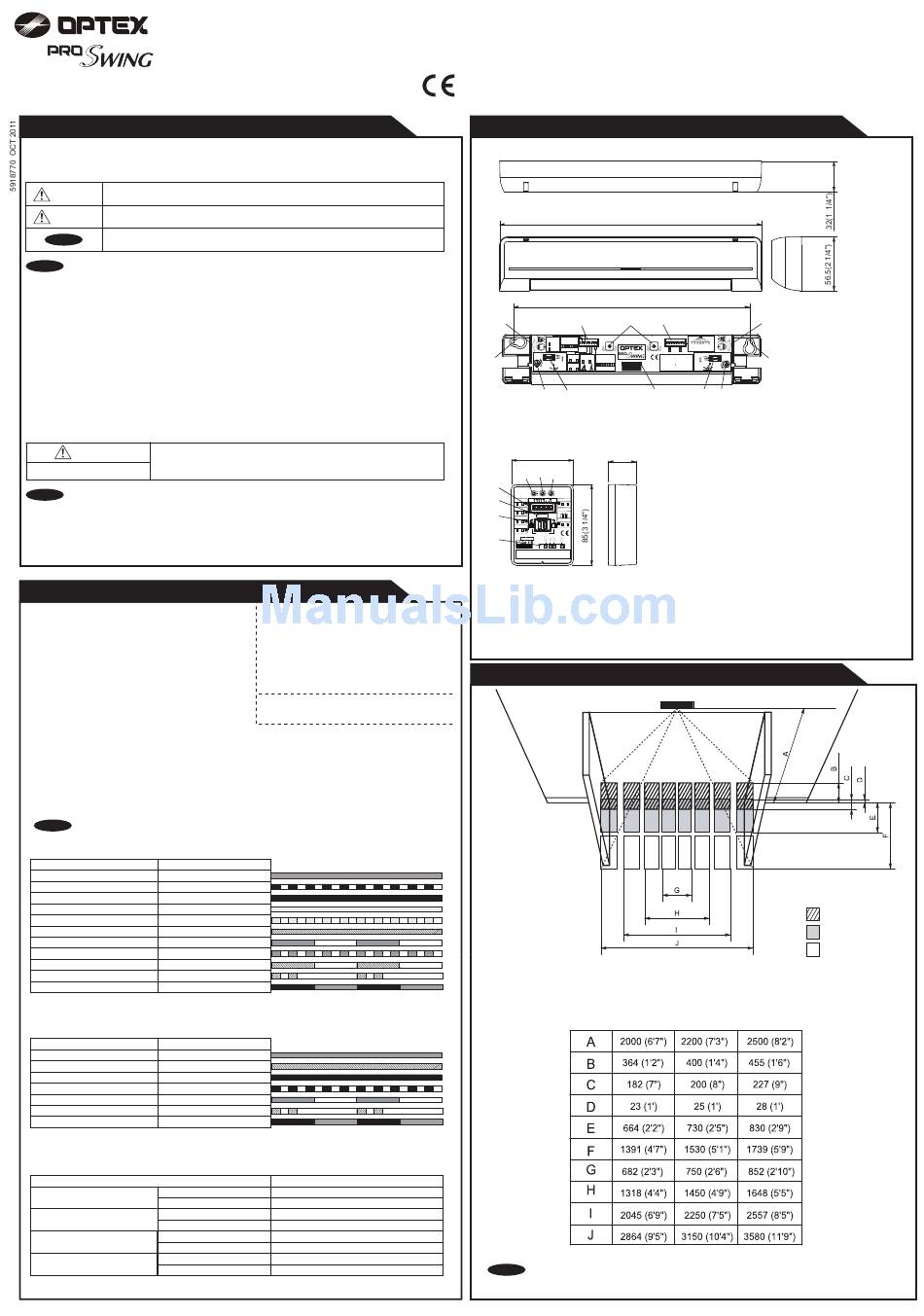

Optex Pro-Swing Premier Mk2 Specification Manual

PREMIER Mk2
MANUFACTURER'S STATEMENT
MANUFACTURER'S STATEMENT
Read this manual carefully before use to ensure proper operation of this product.
Failure to read this manual may cause improper operation and may result in serious injury or death of a
person. The meanings of the symbols are as follows. Please study the following first and then read the contents of
this manual.
Disregard of warning may cause improper operation causing death or serious injury of
WARNING
a person.
Disregard of caution may cause improper operation causing injury of a person or damage to
CAUTION
objects.
NOTE Special attention is required to the section of this symbol.
NOTE
1. Premier MK2 version Sensor Heads (OA-613) & Controller (OC-913C) are not compatible with
old Premier version Sensor Heads (OA-603) and controller (OC-903C).
Do not intermix Old & New versions.
2. This sensor is a non-contact switch intended header mount or wall mount for use
Do not use for any other application.
3. When setting the sensor's detection area, make sure that there is no traffic around the installation site.
4. Before turning the power ON, check the wiring to prevent damage or malfunction of equipment connected to
the sensor.
5. Only use the sensor as specified in the operation manual provided.
6. Be sure to install and adjust the sensor in accordance with the local laws and standards of the country in which
the sensor is installed.
7. Before leaving the installation site, make sure that the sensor is operating properly and instruct the building
owner/operator on proper operation of the door and the sensor.
8. The sensor settings can only be changed by an installer or service engineer. When changed, the
changed settings and the date shall be registered in the maintenance logbook accompanying the door.
WARNING
Do not wash, disassemble, rebuild or repair the sensor, otherwise
it may cause electric shock or breakdown of the equipment.
Danger of electric shock
NOTE The following conditions may not be suitable for sensor installation.
-Fog or exhaust emission around the door.
-Moving objects or objects that emit light near the detection area.
-Highly reflecting floor or highly reflecting objects around the door.
-Wet floor.
SPECIFICATION SPECIFICATIONS
Model (System name) : PREMIER Mk2
Power supply : 12 to 24 VAC ±10% (50 / 60 Hz)
12 to 30 VDC
Power consumption : < 2.2W (< 4VA at AC)
at 1 OA-613 & 1 OC-913C
Output * : CMOS. Relay Voltage / 5 VDC
Output hold time : 0.5 sec. fixed (Activate output)
0.5 sec. to 10sec.(Safety output)
Response time : < 0.3 sec.
Operating temperature : -20 to +55°C (-4 to 131°F)
without dew condensation
Operating humidity : < 80%
Accessories : 1 Spec manual
1 Installation manual
2 Mounting screws
1 Mounting templates for OA-613
1 Communication cable 1m (3'3")
1 Wiring cable 0.6m (2')
1 Velcro tape
2 Wiring shells
1 Connection Matrix
NOTE The specifications herein are subject to change without prior notice due to improvements.
Operation indicator : OA-613
Status
Solid Green
Stand-by
1st row area detection Blinking Red
2nd or 3rd row area detection Solid Red
Waiting for next learning Solid Yellow
During learning Blinking Yellow
Solid Orange
During opening or closing
Signal saturation Slow Green blinking
Sensor failure Fast Green blinking
Slow Orange blinking
Setting error
Twice Orange blinking
Communication error
Red & Green blinking
Mixed version error
Operation indicator : OC-913C
Status
Solid Green
Door fully closed
Solid Orange
Door closing
Door fully opened Solid Red
Door Opening Blinking Red
During Learning Slow Green blinking
Twice Orange blinking
Communication error
Red & Green blinking
Mixed version error
Interface LED : OC-913C
LED indication
Solid Green
Inhibit output
Solid Green
Safety output
Solid Orange
Activate output
Solid Orange
Activate input / Beam input
Specification manual
on automatic swing doors.
Model (Sensor head) : OA-613
Cover color : Black
Mounting height : 2.0 (6'7") to 2.5m (8'2")
Detection area : See DETECTION AREA
Detection method : Active infrared reflection **
Depth angle adjustment : 1st row area ±5°
2nd & 3rd row area ±5°
IP rate : IP44
Weight : 230g (8.1oz )
Model (Controller) : OC-913C
Weight : 65g (2.3oz )
: Three type of outputs (Activate , Inhibit , Safety)
*
: All rows have the presence detection.
**
Color
Color
Operation
When outputting
OFF When not outputting
When not outputting
OFF When outputting
When outputting
OFF When not outputting
When receiving input
OFF When not receiving input
OUTER DIMENSIONS AND PART NAMES
Sensor head: OA-613
275(10 13/16")
248(9 3/4")
(1) (3) (2)
1st row area 2nd
FREQUENCY PRESENCE
sensitivity area sensitivity
SWITCH TIMER(Sec.) potentiometer potentiometer
37 52 342
3 "UGVVKPI3 82
1 2 1 2 1 2 1 2
3 UGVVKPI4
Min Max Min
1st row area depth Adjustment
DEEP RAIN MODE AREA DEPTH
EXTEND
PQTOCN TCKP
(10) SHALLOW LOCKOUT TIMER(Sec.)
DEEP SHALLOW
4 4 OPERATION INDICATOR
6 6
+0 +1 +2 -1
SHALLOW
SNOW MODE
PQTOCN UPQY
DEEP SHALLOW OA-613
DEEP 7 8 7 8 7 8 7 8
PATTERN PATTERN 5 5 5733580
(5) (6)
Controller: OC-913C
[mm (inch)]
65(2 9/16")
29.3(1 1/8")
(1) (2) (3)
(4)
Knowing Act timer(0 to 24sec.)
Safety output Lockout timer
hold time (0 to 24sec.)
(0.5 to 10sec.)
(5) Min Max Min Max Min Max
Safety 1 2 3 4 5 6 7 8
Data Input
Relay Contact
1 5
N.O. N.C. OFF ON
Door
Future
Open Signal Development
(6) 6 7
2
Act Saf
Operation
Indicator
Auto Lock Out
Stand Alone
3
Auto Manual 8
Knowing Act OFF ON
4
OFF ON
Directional Plug
(7) Ocfg"kp"Lcrcp
NQV0zzzz{||||
OC-913C
: 12 to 24 VAC ±10%
Power supply
12 to 30 VDC
Power consumption : <2.2W(<4VA at AC)
at 1 OA-613 & 1 OC-913C
DETECTION AREA
Chart shows figures if all angles are set at 0degree.
NOTE
The actual detection area may become smaller depending on the ambient light, the color / material of
the object or the floor as well as the entry speed of the object.
(4) (1) 1 : Connector
2 : Sensitivity potentiometer
5tf row 3 : Mode setting switches
AREA WIDTH SWITCH
Each number of Area 4 : Area width setting switch
can be eliminated
by using each dip-SW.
Max Active Inactive
2nd 5tf row area depth Adjustment
5 : 1st row angle screw
OPERATION INDICATOR DEEP
(10)
Green : Stand-by DEEP
Red Blink : 1st Row Area Det.
SHALLOW 6 : 1st row area angle gauge
Red : 2nd 5tf Row Area Det.
DEEP SHALLOW
Yellow Blink : Learning PATTERN PATTERN
SHALLOW
7 : 2nd & 3rd area angle screw
8 : 2nd & 3rd area angle gauge
(9) (8) (7)
9 : Operation indicator
10 : Mounting holes
1 : Safety output hold timer
2 : Knowing Act timer
3 : Lockout timer
4 : Dipswitches
5 : Operation indicator
6 : Connector
7 : Interface LED
(Inhibit output, Safety output, Activate output,
Activate/Beam input)
: 1st row area
: 2nd row area
: 3rd row area
[mm (ft,inch)]
[mm (inch)]
