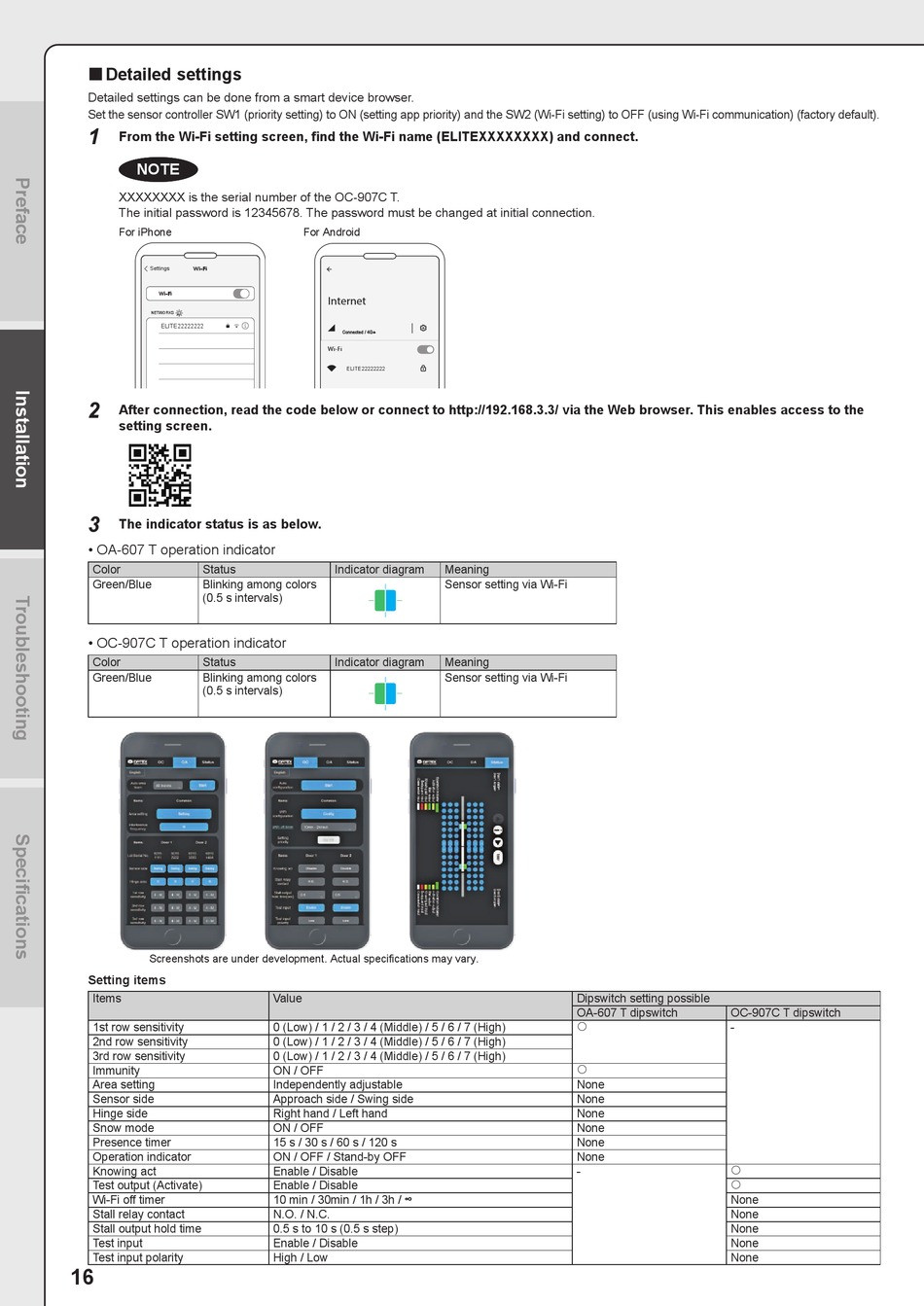

Optex ELITE PRO Instruction Manual page 16

„ Detailed settings
Detailed settings can be done from a smart device browser.
Set the sensor controller SW1 (priority setting) to ON (setting app priority) and the SW2 (Wi-Fi setting) to OFF (using Wi-Fi communication) (factory default).
1
From the Wi-Fi setting screen, find the Wi-Fi name (ELITEXXXXXXXX) and connect.
NOTE NOTE
XXXXXXXX is the serial number of the OC-907C T.
The initial password is 12345678. The password must be changed at initial connection.
For iPhone
Settings
Wi-Fi
Wi-Fi
NETWORKS
ELITE22222222
2
After connection, read the code below or connect to http://192.168.3.3/ via the Web browser. This enables access to the
setting screen.
3
The indicator status is as below.
• OA-607 T operation indicator
Color Status
Green/Blue Blinking among colors
(0.5 s intervals)
• OC-907C T operation indicator
Color Status
Green/Blue Blinking among colors
(0.5 s intervals)
Screenshots are under development. Actual specifications may vary.
Setting items
Items
1st row sensitivity
2nd row sensitivity
3rd row sensitivity
Immunity
Area setting
Sensor side
Hinge side
Snow mode
Presence timer
Operation indicator
Knowing act
Test output (Activate)
Wi-Fi off timer
Stall relay contact
Stall output hold time
Test input
Test input polarity
16
For Android
Internet
Connected / 4G+
Wi-Fi
ELITE22222222
Indicator diagram Meaning
Sensor setting via Wi-Fi
Indicator diagram Meaning
Sensor setting via Wi-Fi
Value
0 (Low) / 1 / 2 / 3 / 4 (Middle) / 5 / 6 / 7 (High)
0 (Low) / 1 / 2 / 3 / 4 (Middle) / 5 / 6 / 7 (High)
0 (Low) / 1 / 2 / 3 / 4 (Middle) / 5 / 6 / 7 (High)
ON / OFF
Independently adjustable
Approach side / Swing side
Right hand / Left hand
ON / OFF
15 s / 30 s / 60 s / 120 s
ON / OFF / Stand-by OFF
Enable / Disable
Enable / Disable
10 min / 30min / 1h / 3h / ∞
N.O. / N.C.
0.5 s to 10 s (0.5 s step)
Enable / Disable
High / Low
Dipswitch setting possible
OA-607 T dipswitch OC-907C T dipswitch
-


None
None
None
None
None
None
-


None
None
None
None
None
