Installation

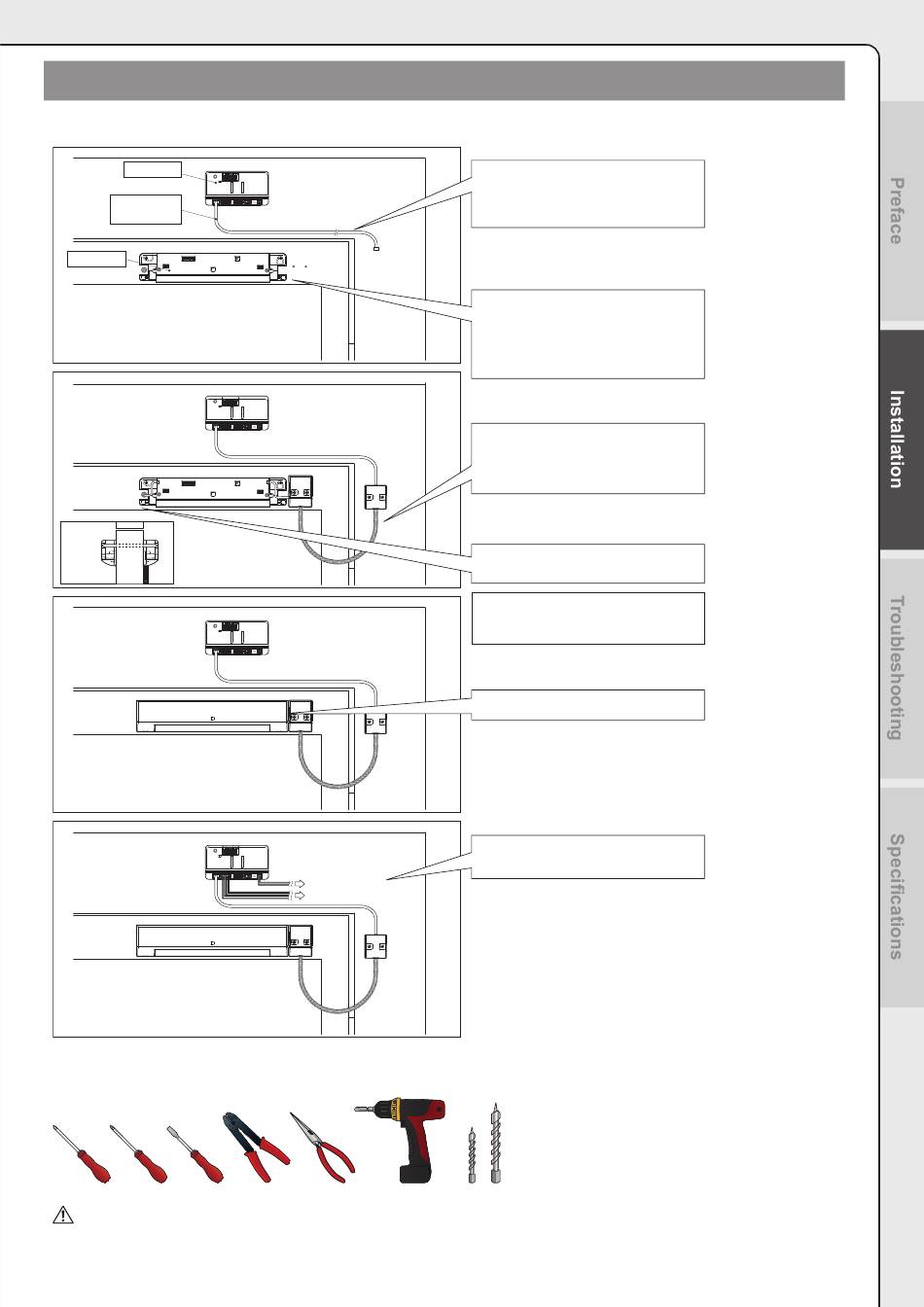

Install in the order of OC-907C T, OA-607 T, door loop.
Below is a configuration example with the ELITE PRO.
OC-907C T
Loop harness
2200 mm
OA-607 T
Side view
Prepare the tools required in advance.
Example:
(1)
(2)
(3)
WARNING
WARNING
Danger of electric shock
Before starting the procedure, make sure that the power is turned OFF.
When passing the cable through the hole, do not tear the shield otherwise it may cause electric shock or breakdown of the sensor.
To power
To the door controller
(4)
(5)
(6)
Step 1) Installing OC-907C T and
connecting the loop harness
▪ Connect the loop harness connector
to the OC-907C T.
Step 2) Installing OA-607 T
▪ Drill the following holes
OA-607 T mounting holes
Door loop cover mounting holes
Through hole
Step 3) Installing the door loop
▪ Drill the following holes
Jamb cover mounting hole
Wiring hole (concealed)
Step 4) Connecting the door front/back
OA-607 T
Step 5) Setting the OA-607 T threshold
area angle screw and swing area
angle screw
Step 6) Fitting the cover on OA-607 T
Step 7) OC-907C T and door controller I/O
wiring and OC-907C T power wiring
(7) (8)
(1) #1 Phillips head screwdriver
(2) #2 Phillips head screwdriver
(3) Flat head screwdriver
(4) Crimping tool
(5) Pliers
(6) Drill
(7) 1/8" drill bit
(8) 3/8" drill bit
5
