IMB540 User's manual
2.3.23

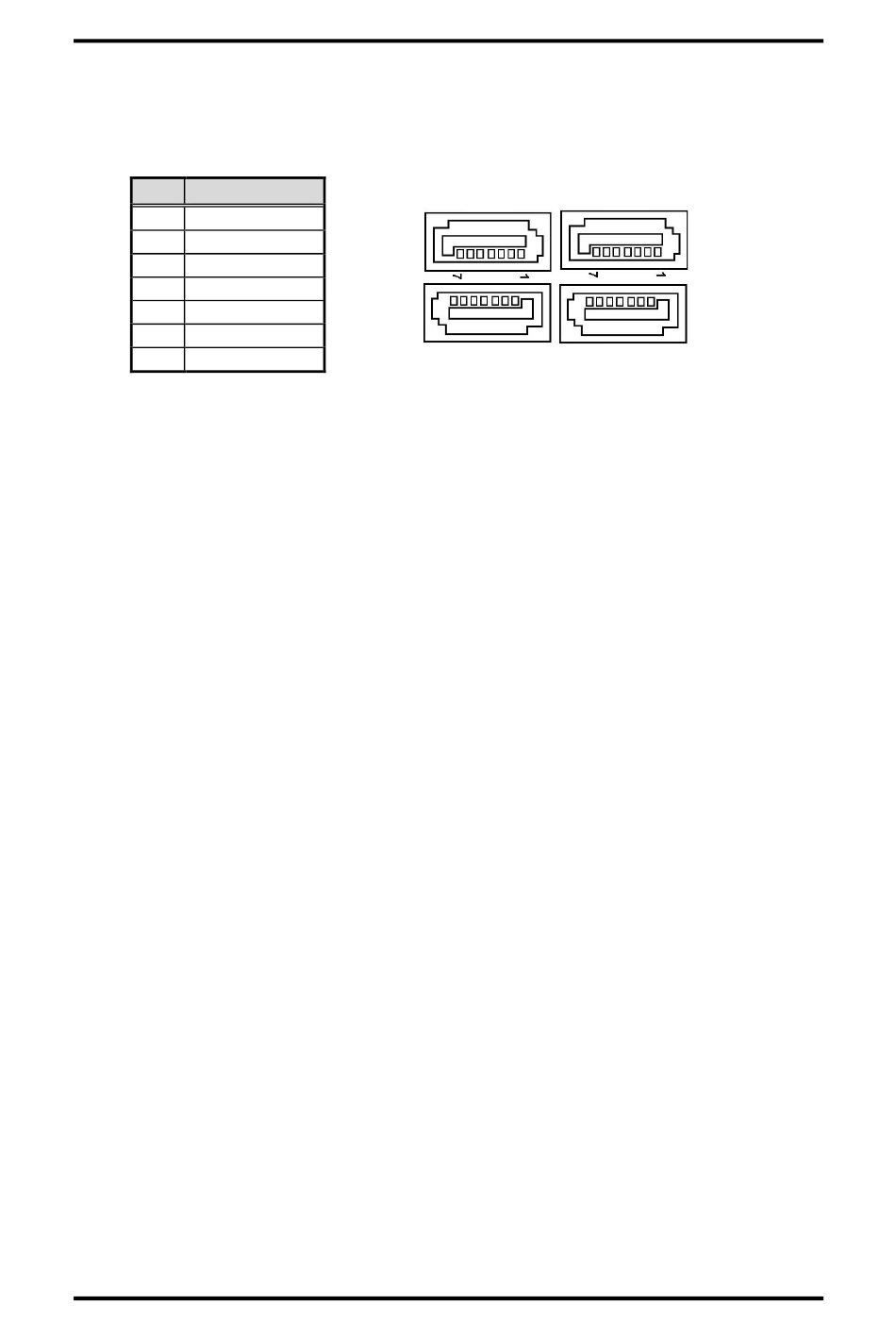

SATA 3.0 Connectors (SATA1 , SATA2)

These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
SATA 3.0 interface allowing up to 6.0Gb/s data transfer rate. It is a computer bus interface
for connecting to devices such as hard disk drive.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
20
2
1
3 4
Board and Pin Assignments
