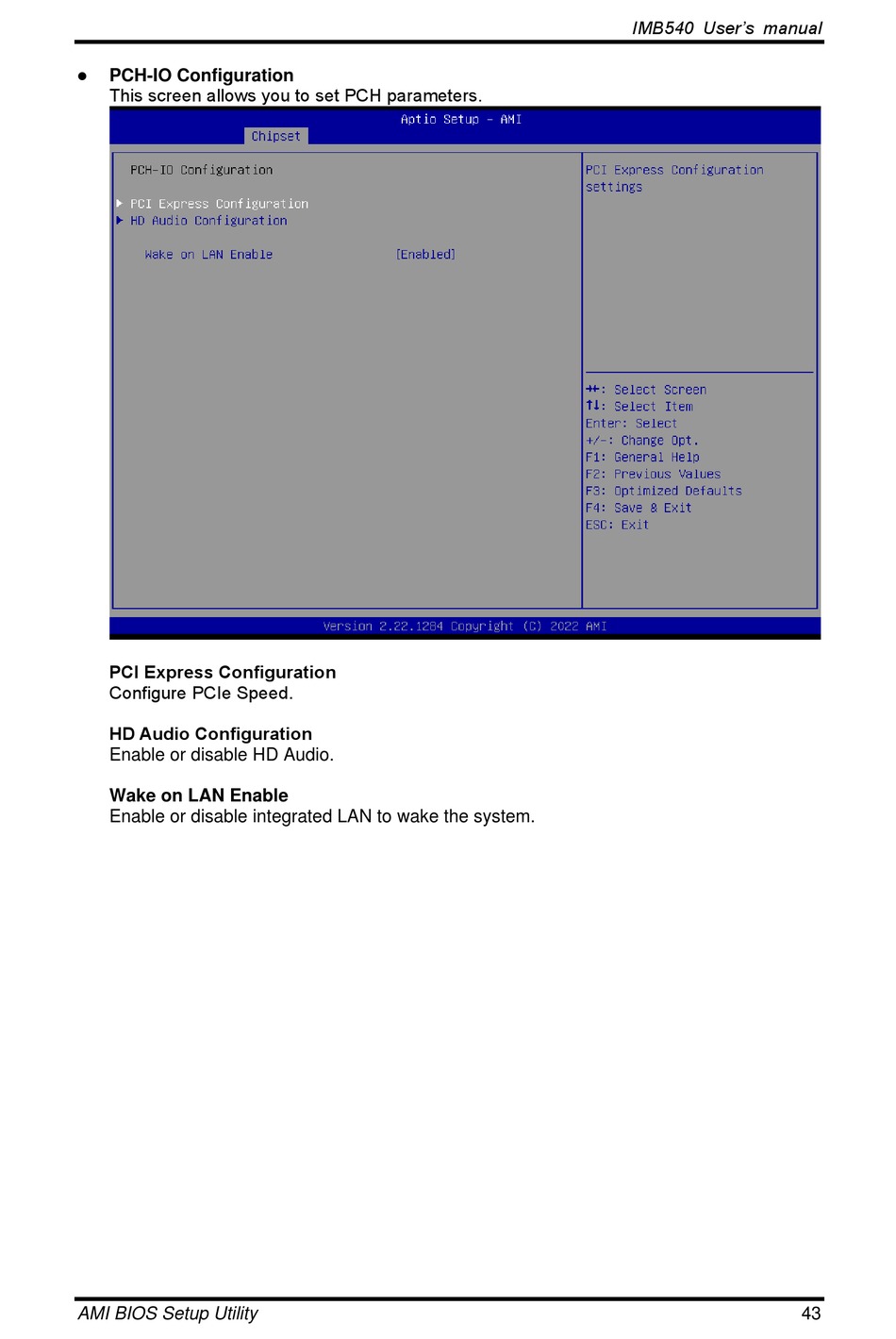

PCH-IO Configuration
This screen allows you to set PCH parameters.
PCI Express Configuration
Configure PCIe Speed.
HD Audio Configuration
Enable or disable HD Audio.
Wake on LAN Enable
Enable or disable integrated LAN to wake the system.
AMI BIOS Setup Utility
IMB540 User's manual
43
