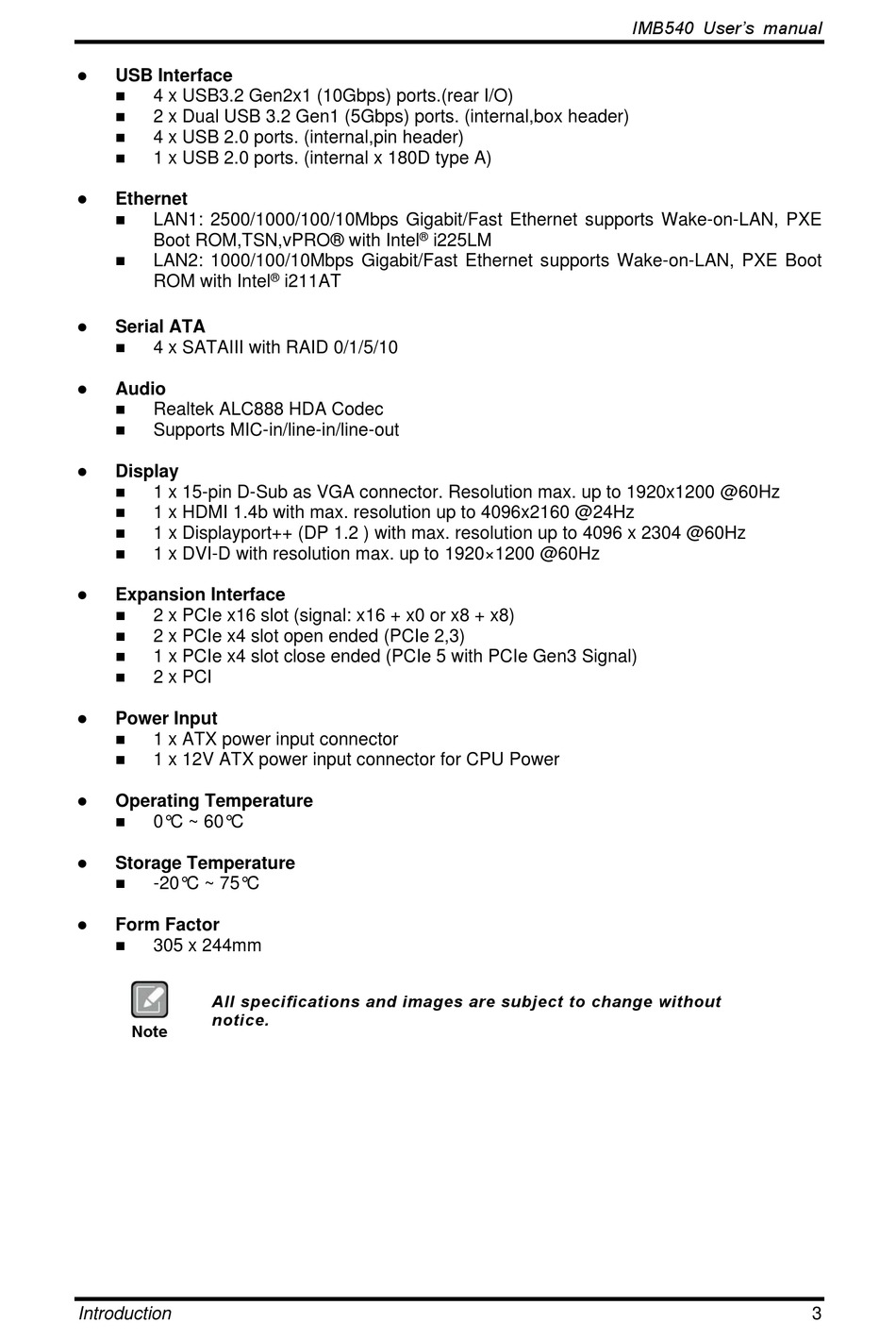

AXIOMTEK IMB540 User Manual page 9

⚫ USB Interface
◼ 4 x USB3.2 Gen2x1 (10Gbps) ports.(rear I/O)
◼ 2 x Dual USB 3.2 Gen1 (5Gbps) ports. (internal,box header)
◼ 4 x USB 2.0 ports. (internal,pin header)
◼
1 x USB 2.0 ports. (internal x 180D type A)
⚫ Ethernet
◼ LAN1: 2500/1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE
Boot ROM,TSN,vPRO® with Intel
◼ LAN2: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot
ROM with Intel
⚫ Serial ATA
◼
4 x SATAIII with RAID 0/1/5/10
⚫ Audio
◼ Realtek ALC888 HDA Codec
◼ Supports MIC-in/line-in/line-out
⚫ Display
◼ 1 x 15-pin D-Sub as VGA connector. Resolution max. up to 1920x1200 @60Hz
◼
1 x HDMI 1.4b with max. resolution up to 4096x2160 @24Hz
◼ 1 x Displayport++ (DP 1.2 ) with max. resolution up to 4096 x 2304 @60Hz
◼ 1 x DVI-D with resolution max. up to 1920×1200 @60Hz
⚫ Expansion Interface
◼ 2 x PCIe x16 slot (signal: x16 + x0 or x8 + x8)
◼
2 x PCIe x4 slot open ended (PCIe 2,3)
◼ 1 x PCIe x4 slot close ended (PCIe 5 with PCIe Gen3 Signal)
◼ 2 x PCI
⚫ Power Input
◼ 1 x ATX power input connector
◼
1 x 12V ATX power input connector for CPU Power
⚫ Operating Temperature
◼ 0°C ~ 60°C
⚫ Storage Temperature
◼
-20°C ~ 75°C
⚫ Form Factor
◼ 305 x 244mm
All specifications and images are subject to change without
notice.
Note
Introduction
®
i225LM
®
i211AT
IMB540 User's manual
3
