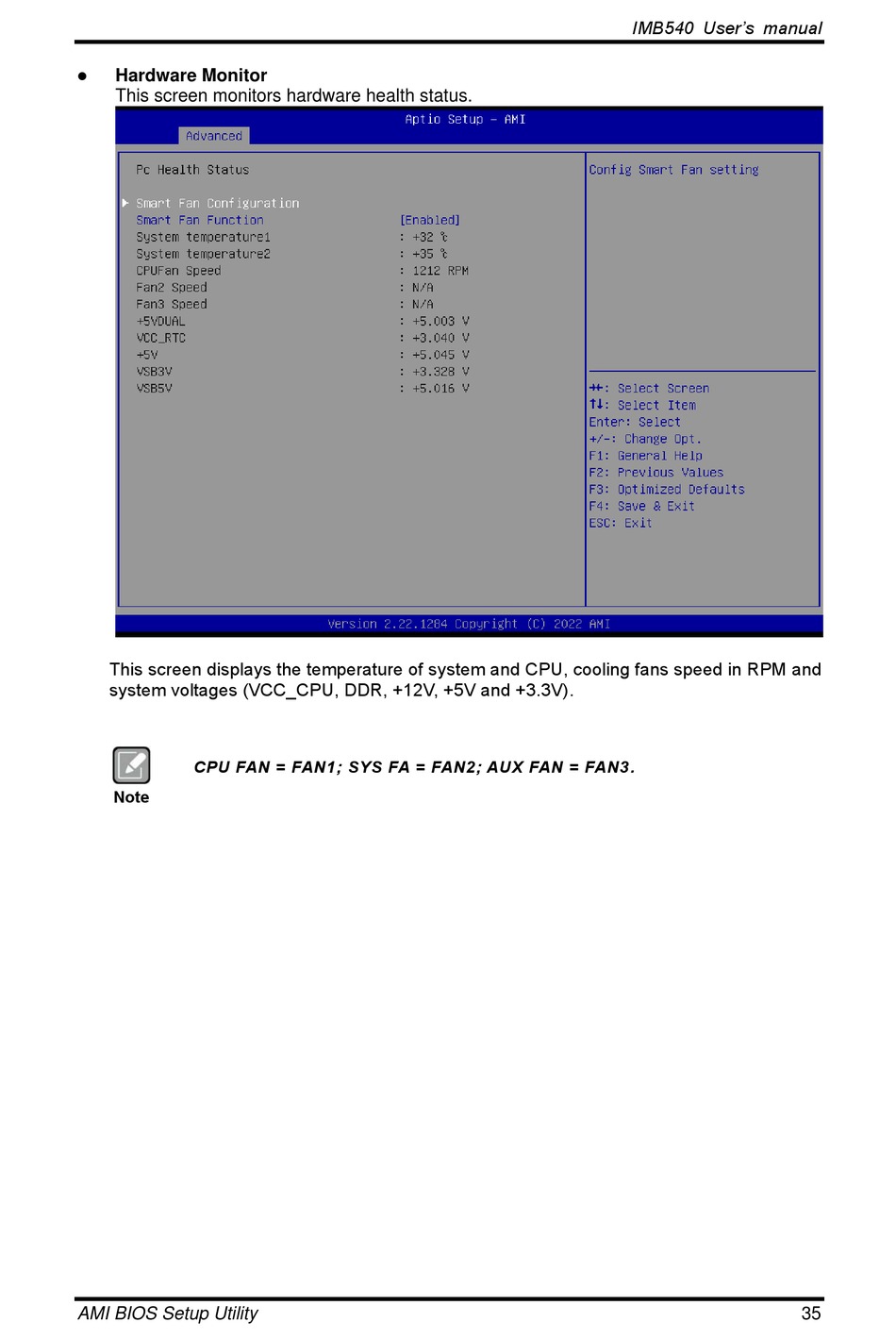

Hardware Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, cooling fans speed in RPM and
system voltages (VCC_CPU, DDR, +12V, +5V and +3.3V).
CPU FAN = FAN1; SYS FA = FAN2; AUX FAN = FAN3 .
Note
AMI BIOS Setup Utility
IMB540 User's manual
35
