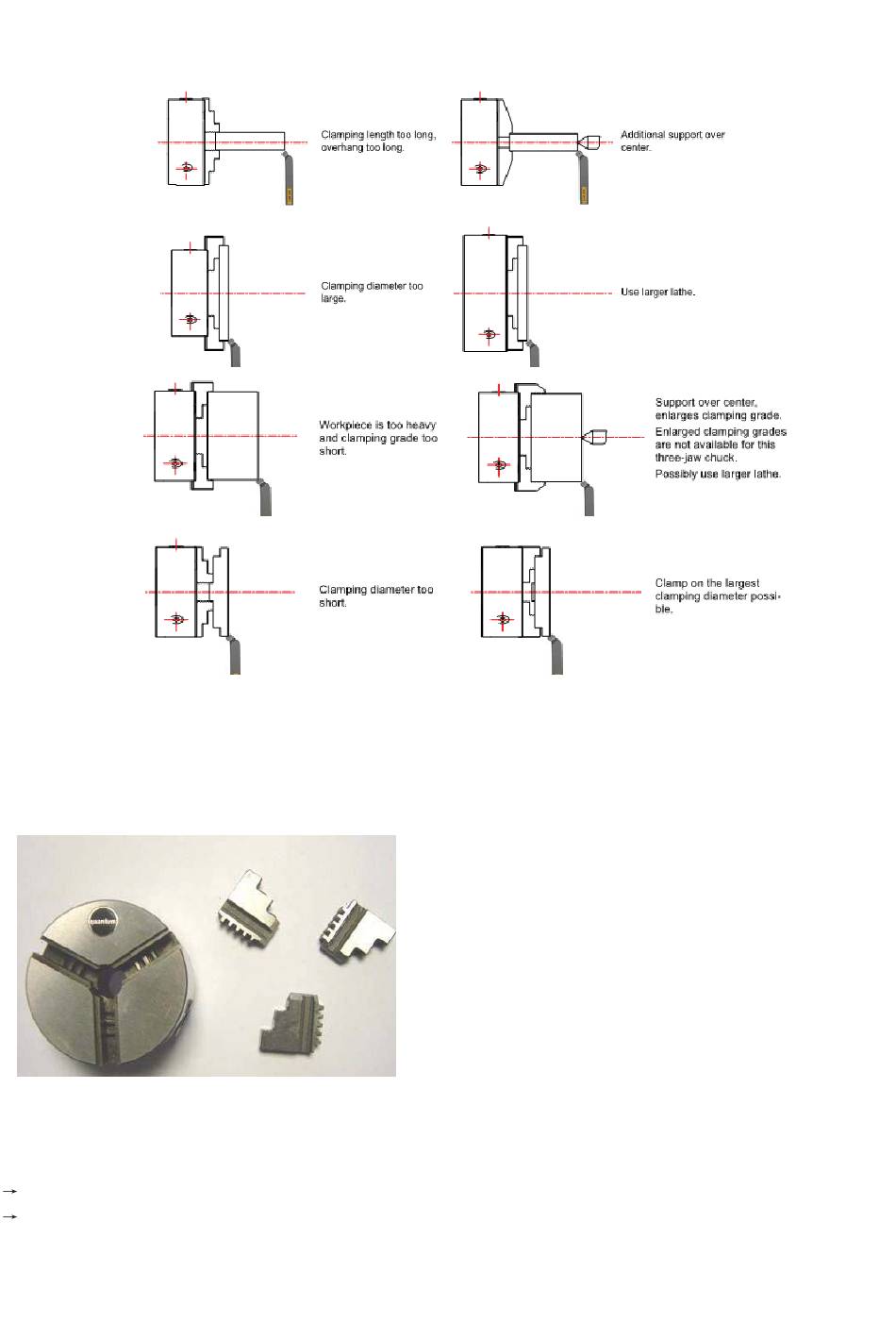

Do not clamp any workpieces that exceed the permitted chucking capacity of the lathe chuck. The clamping force
of the chuck is too low if its capacity is exceeded. Also, the jaws may come loose.
5.10.1 Replacing the clamping jaws on the lathe chuck
The clamping jaws and the three-jaw chuck are equipped with numbers. Insert the clamp- ing jaws at the correct
position and in the right order into the three- jaw chuck.
After the replacement, bring the jaws completely together in order to control if they are
inserted correctly.
5.11 General working notes
5.11.1 Fitting a follow rest
The lathe BD-11 is prepared for fit- ting a follow rest.
Remove the two protecting screws in the lathe saddle.
Attach the follow rest with the help of thread screws.
Incorrect
Correct
