4. Design and function
The machine is a universal lathe. It has been designed and manufactured for straight turning and facing round or
regularly formed three-, six- or twelve-square workpieces in metal, plastics or similar materials.
The hollow work spindle enables you to clamp longer workpieces with a diameter of up to 25 mm.
The speed is regulated by repositioning a V-belt on pulleys. With the equipment variant, it is possible to adjust the
speeds progressively within the corresponding speed ranges.

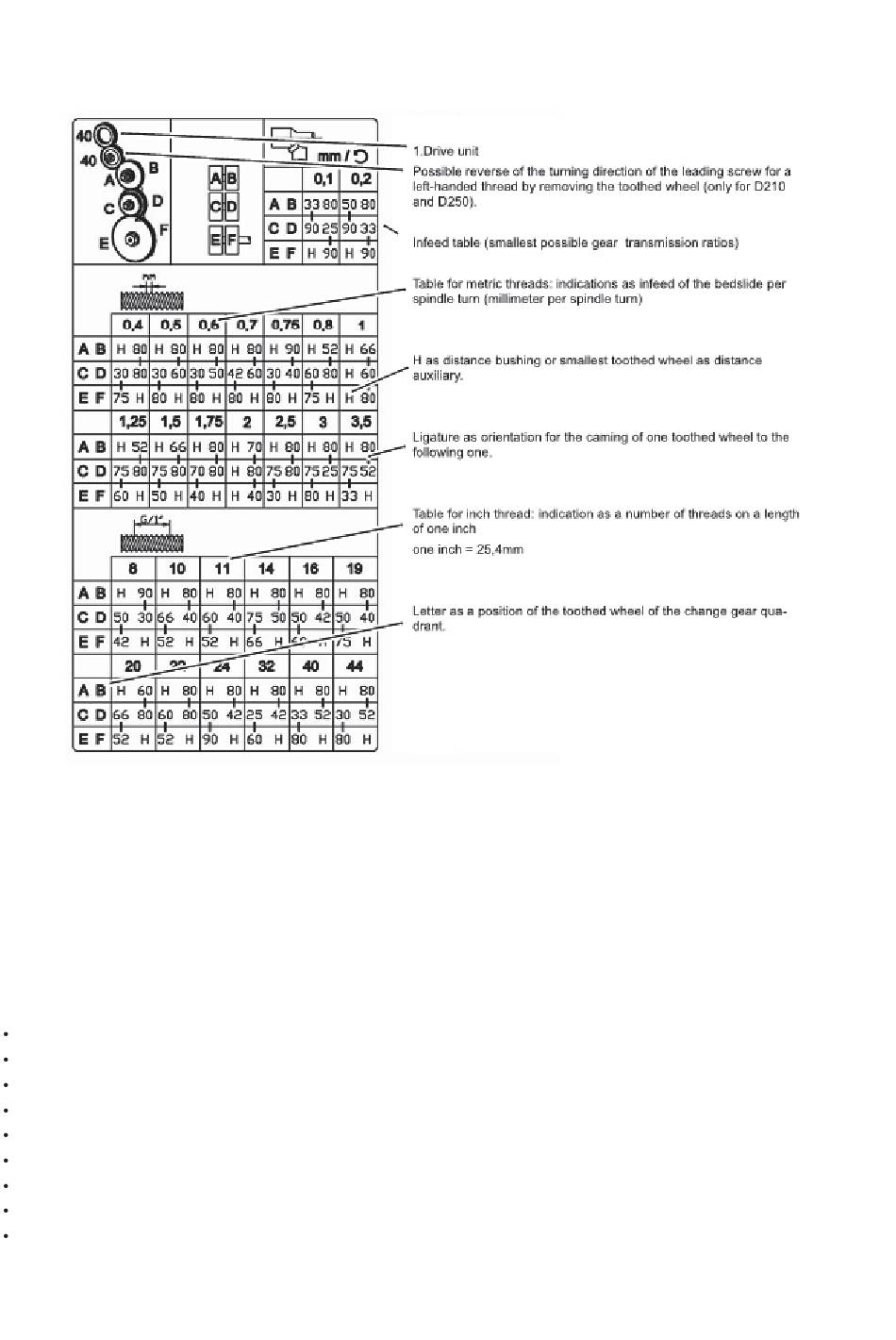

The existing leadscrew enables longitudinal feed and thread-cutting. It is also possible to use the machine for
drilling jobs with the help of an (optional) drill chuck clamped in the tailstock.
4.1 Construction features
Spindle-bearing arrangement with precision ball bearings
Powerful, maintenance-free motor
Hardened spindle nose
High concentricity precision of the work spindle < 0.009 mm
Oil-bathed rounded gearwheels on feed gear
Self-latching, lockable EMERGENCY STOP button with undervoltage circuit breaker
Left- and right-hand motor rotation controlled by a switch
Induction-hardened, precision-ground prismatic bed made of gray cast iron (HRC 42 - 52)
Cross and straight turning slide with dovetail slideway and adjusting gibs
