3–8–1 GAS SPRING REPLACEMENT (continued)
13. Remove the connectors of signal cable and power supply (used for monitor) cable from the mother board.
At the same time, the tiewrap that bundles them.
SIGNAL
CABLE
14. Unscrew two screws fixing stopper bracket located on the left side to rear, and remove the stopper bracket.
15. Unscrew two screws fixing ground wire from rear to neck support and remove the earth wire.
16. Cut the tiewrap fixing cable from monitor to main board.
17. Unscrew the screw fixing gas spring and remove the bolt.
RTfino/RT3200 Advantage–II/RT–x200 SERVICE MANUAL
POWER SUPPLY CABLE

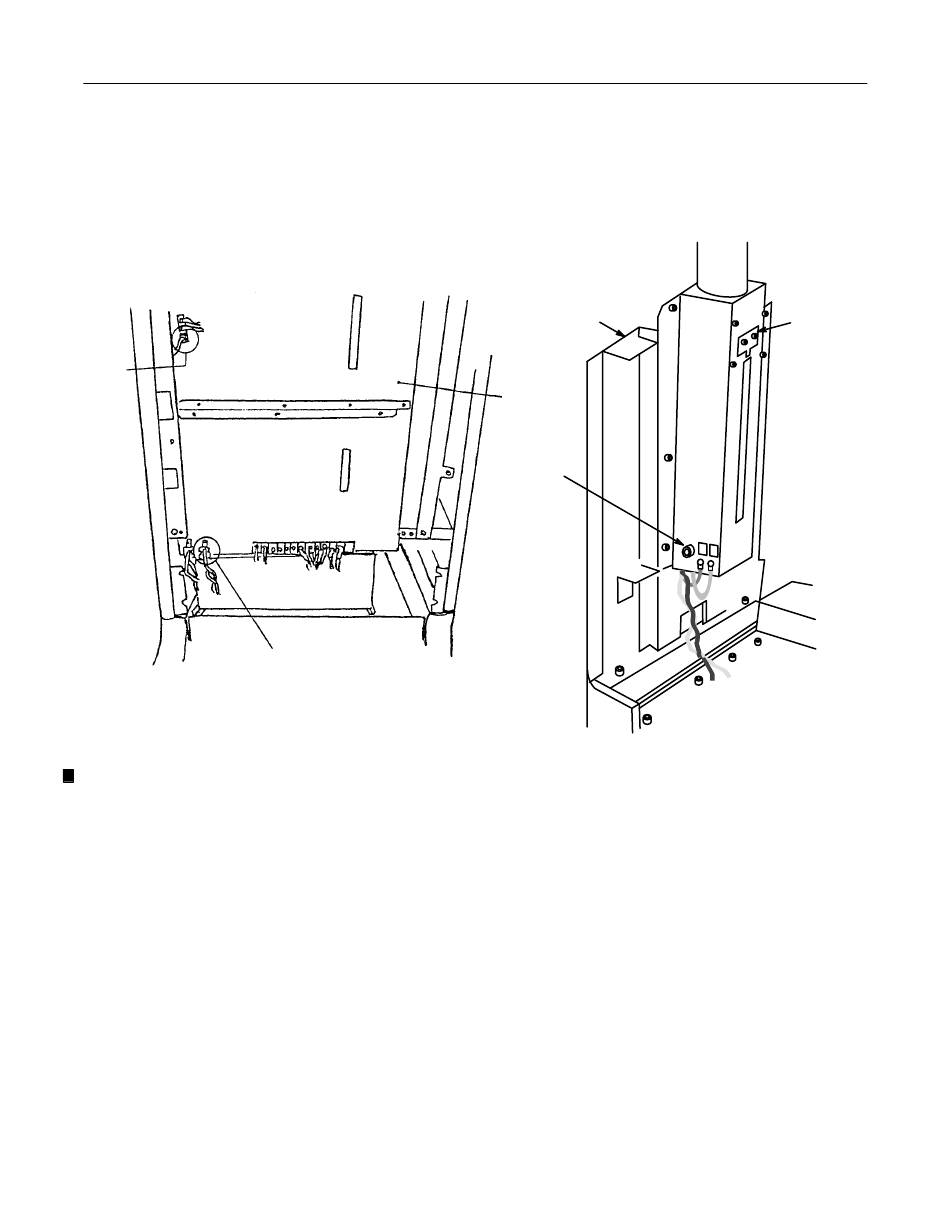

SYSTEM REAR VIEW (REAR PLATES REMOVED)

ILLUSTRATION 3–16
RIGHT SIDE
PANEL
MOTHER
BOARD
FIXING
BOLT
3–25
INSTALLATION AND REPLACEMENT
P9030GX
STOPPER
BRACKET
