Preparation
Before installing the lock on the door:
Make sure door has been prepped according to specifications in template
NOTE:
included with lock.
A. Remove the latch (Fig. A) and strike from the packaging.
Both latch face and strike have adhesive-backed covers to prevent marring and
should be removed upon installation.
NOTE: Latch ships with backset in 2-3/8" position (Fig. A).
Backset is the measurement from door edge to center of 2-1/8" diameter hole
(see template supplied with lock).
If required, pull to extend to 2-3/4" backset position.
NOTE: Different holes are used for (2) through bolt posts depending on backset (Fig. A).
NOTE: The latch can be installed in only one of two ways - with the bevel (slope) of the
latch facing out or facing in while standing outside of the door.
If the door opens in, the bevel will face the exterior (regular); if
the doors opens out, the bevel will face the interior (reverse).
IMPORTANT: Latch bevel must match door bevel
and plunger of deadlocking latch must stop on
strike when door is closed.

INSTALL LOCK

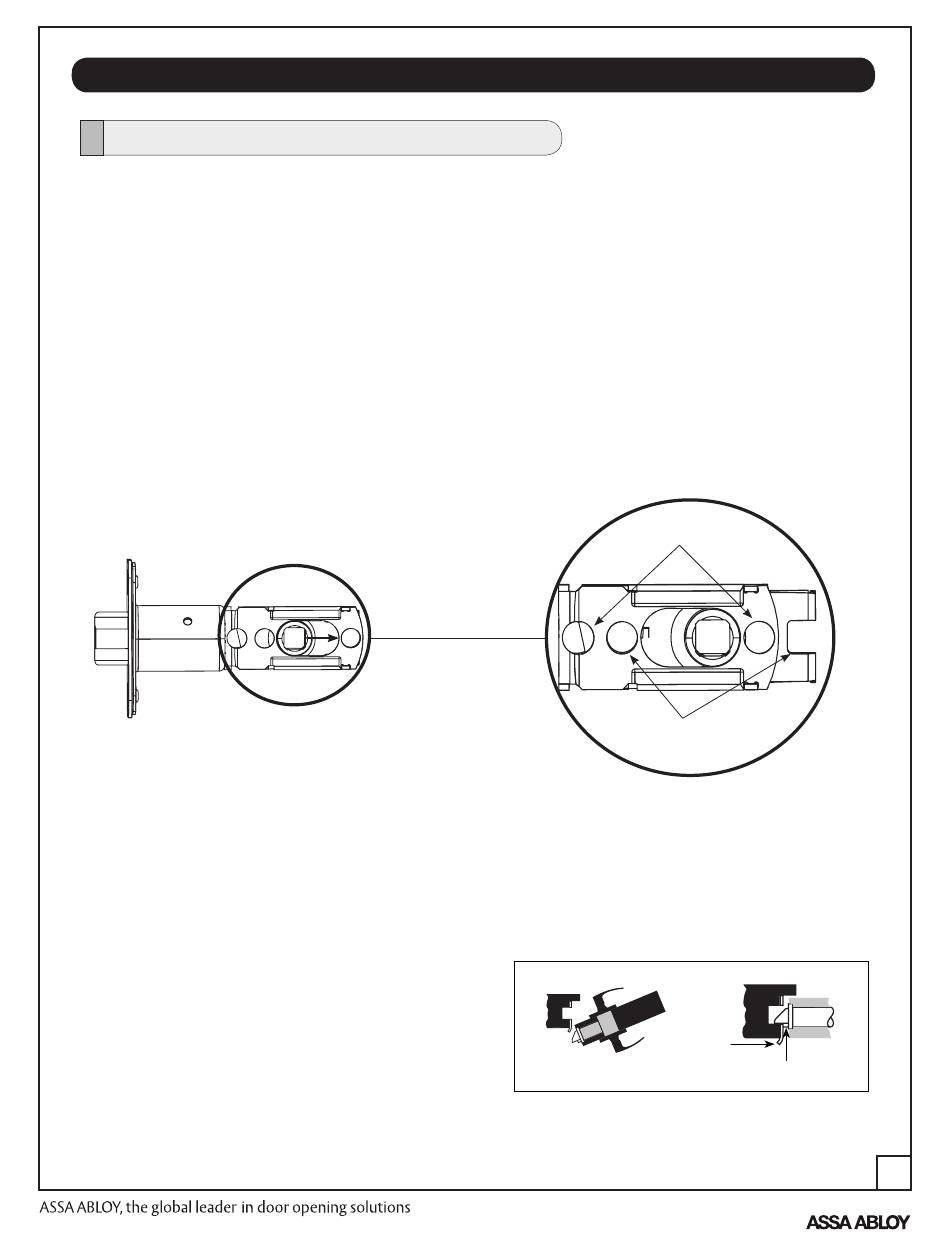

Figure A
2-3/8" through bolt posts
2-3/4" through bolt posts
Strike
Plunger
P/N LT-503200 Rev B
