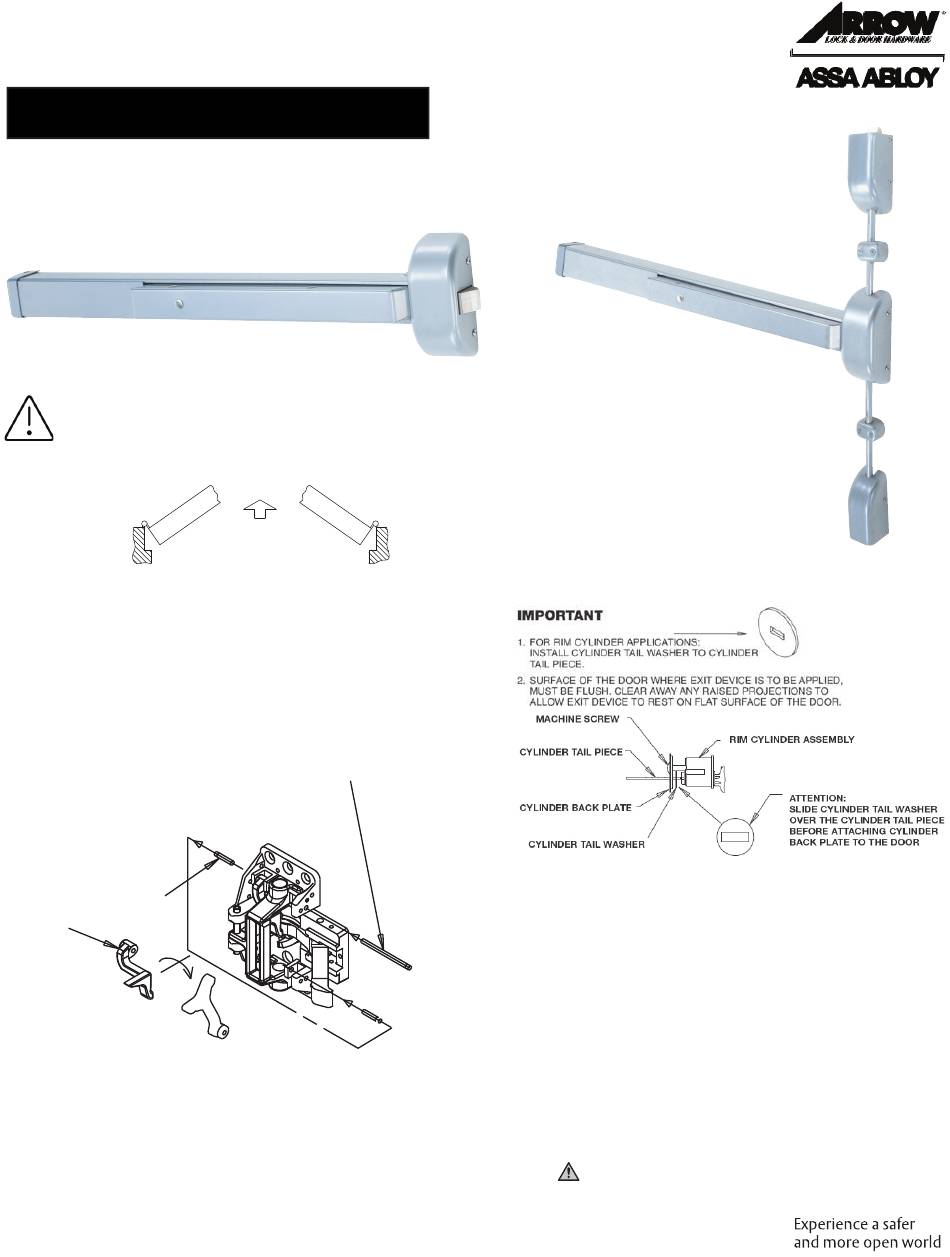

Installation Instructions
S1150 / S1250 Series
Vertical Rod Exit Device
S1250 Rim Exit Device
Before starting the door should be fi tted and hung.
Check box label for hand and size of exit device.
THIS EXIT DEVICE IS HANDED
RIGHT HAND
REVERSE BEVEL
All S1150 and S1250 series exit devices are handed and
reversible. It is normally assembled for a left hand
reverse bevel door at the factory.
To change hand of S1150 / S1250 Series Exit Device
Lift
lever
pin
Lift
lever
1. Use 2-1/4" pin (supplied in screw pack) to push out
lift lever pin.
2. Remove lift lever.
3. Invert and reassemble with lift lever pin as shown
above.
1-800-327-8539 • www.arrowlock.com
Copyright © 2023, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Patent pending and/or patent www.assaabloydss.com/patents.
OUT
LEFT HAND
REVERSE BEVEL
2-1/4" long pin
S1150 Small Vertical Rod
Available Stock Lengths
Length E: 32" Door. Can be cut to fi t 24" door.
Length F: 36" Door. Can be cut to fi t 33" door.
Length G: 48" Door. Can be cut to fi t 43" door.
Length J: 42" Door. Can be cut to fi t 37" door.
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information go
to www.P65warnings.ca.gov.
F11-203-0302 10/24
