Assa Abloy SARGENT 7000 Series Installation Instructions Manual

Installation Instructions
7000 & 12-7000 Series
Concealed Vertical Rod Latch Device
Note 1) Measure gap between top of door/ frame
and bottom of door and floor before
removing door from hinges
(Ref. Steps 6 & 7).
Note 2) For 100 Series Auxiliary Controls:
Prep door BEFORE installing latching device.
Install Aux Control AFTER installing latching
device.
For 106 or 113 Aux Controls:
Template: 4212 Installation instructions:
A5985

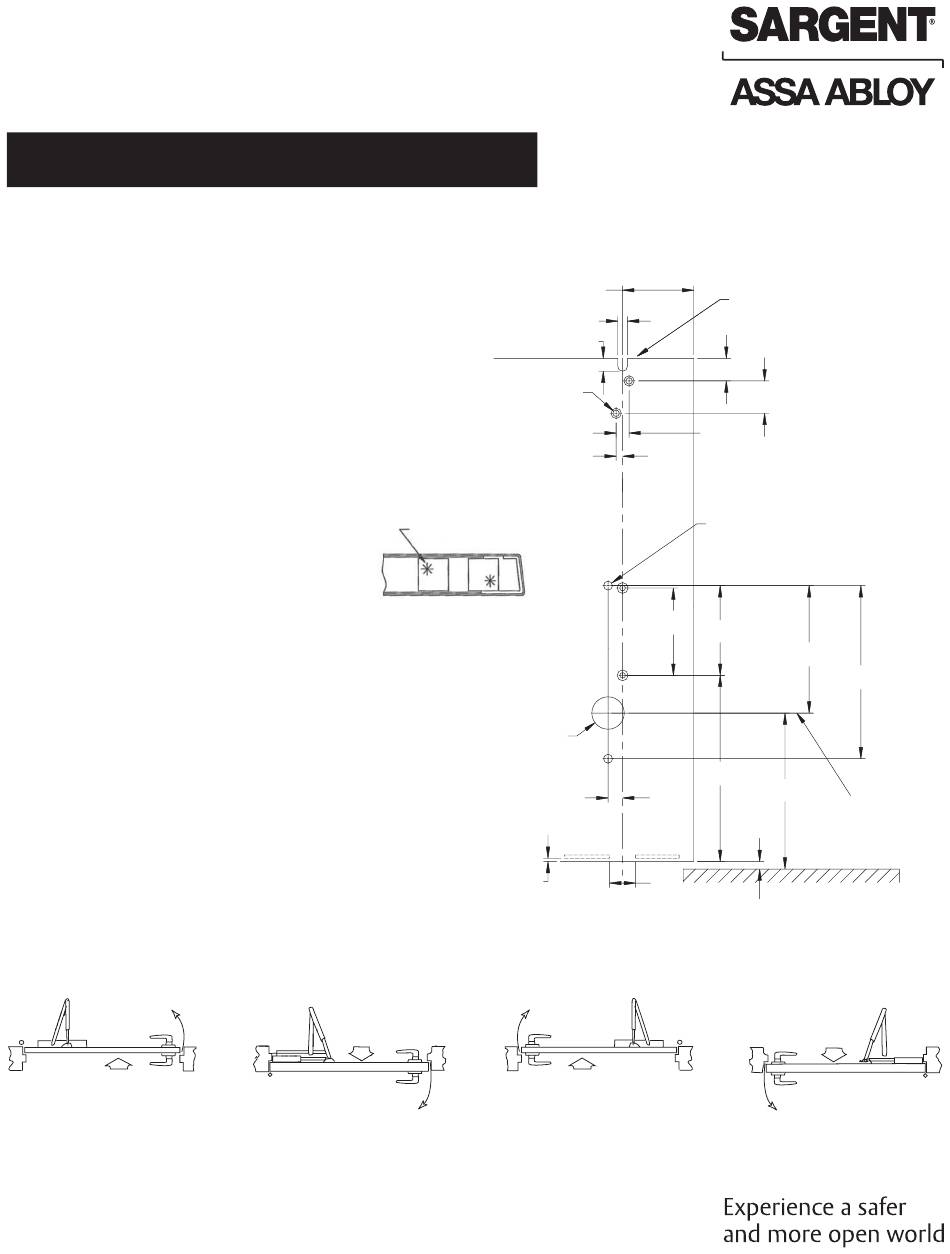

1. Drill and countersink door per
templates to right and below.
LH
Left Hand Door
1-800-727-5477 • www.sargentlock.com
Copyright © 2007, 2013, 2018, 2024, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the
express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
A7860 06/24 Rev 5
(2) #1/4"-20
Tapped holes
Bottom View of Door
Handing
LHRB
Left Hand Reverse Bevel
2-1/4" Standard
1-7/8" Minimum
3/8"
1/2"
Drill and C'Sink
for #10 (4 Places)
1-1/4"
dia
thru
hole
1/8"
RH
Right Hand Door
Top case prep is not affected by
handing of device
7/8"
1-1/4"
1/2"
1/4"
1-1/32" dia
thru hole,
2 places
3-3/8"
3-15/32"
4-59/64"
36-3/4"
35-7/8" Ref
5/8"
of "Mounting Height"
1"
5/8" Gap between door and floor
RHRB
Right Hand Reverse Bevel
6-11/16"
C L
