Included in the box. . .
Installation Instructions
Template
Latch
Strike

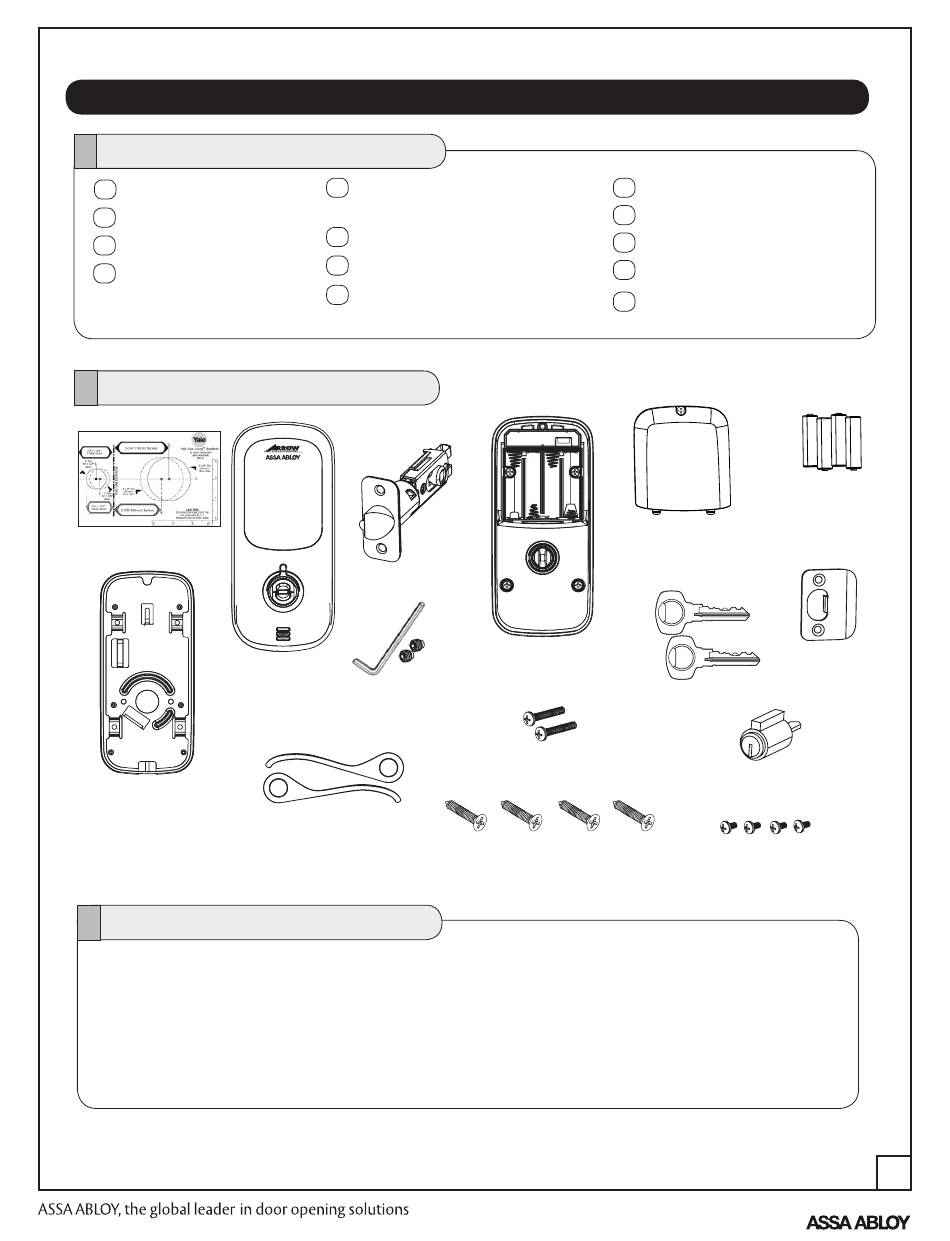

Parts Illustrations
Template
Interior Mounting
Plate with Gasket
(back of Interior Escutcheon)
Tools Needed
Door Prep
2-1/8" (54mm) hole saw
ƒ
ƒ 1" (26mm) boring bit
ƒ 7/64" (2.5mm) drill bit
Chisel & hammer
ƒ

INSTALLATION

COMPONENTS AND TOOLS

Interior Mounting Plate
(with gasket)
Interior Escutcheon
Exterior Escutcheon
(2) Screw Packs (see below)
Latch
Exterior
Escutcheon
Hex key
(2) Hex Set Screws
(Pack 1)
Exterior & Interior
Lever Handles
Keys
Interior
Escutcheon
(2) Interior Mounting Plate Screws
(Pack 1)
(2) Latch & (2) Strike Mounting
Screws (Pack 2)
Lock Installation
#2 Phillips screw driver
ƒ
ƒ Hex key
(3mm) - provided
Keys
Cylinder
Battery Cover
Hex key
4 AA Alkaline Batteries
4 AA Alkaline
Batteries
Battery Cover
Strike
Cylinder
(4) Interior Escutcheon
Mounting Screws (Pack
1)
P/N LT-503200 Rev B
