Arrow Revolution™ Touchscreen Lever
Installation and Programming Instructions
NOTE TO INSTALLER
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN DAMAGE TO THE PRODUCT
AND VOID THE FACTORY WARRANTY
For Technical Assistance contact Arrow Lock and Door Hardware at 1-800-221-6529
www.arrowlock.com
P/N LT-503200 Rev B
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Assa Abloy Arrow Revolution U4A-YRHCPZW0
Summary of Contents for Assa Abloy Arrow Revolution U4A-YRHCPZW0

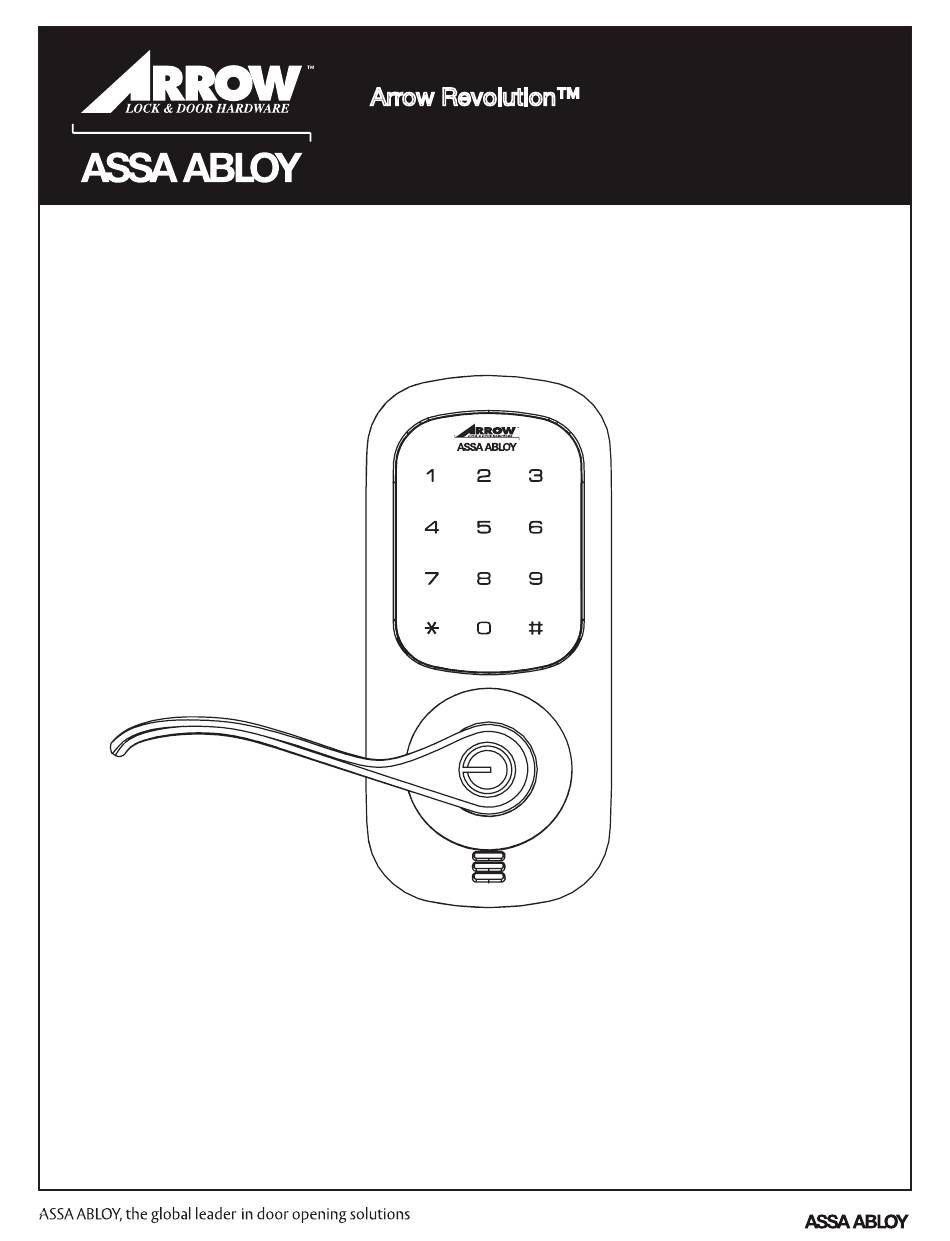

- Page 1 Arrow Revolution™ Touchscreen Lever Installation and Programming Instructions NOTE TO INSTALLER FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT AND VOID THE FACTORY WARRANTY For Technical Assistance contact Arrow Lock and Door Hardware at 1-800-221-6529 www.arrowlock.com P/N LT-503200 Rev B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warnings .........................2 Introduction ........................3 Installation Components and Tools .....................4 Install Lock ......................5-13 Programming Programming Features-Menus-Keys-Definitions ..........14-15 Operation ......................16-19 Miscellaneous Information Hardware Troubleshooting ..................20 Programming Troubleshooting ................21 Replace/Install Cylinder ..................22 Sample PIN Code Management Sheet ..............23 WARNINGS Warning: Changes or modifications to this device not expressly approved by Arrow Lock &... -
Page 3: Introduction
Industry Canada: Canadian ID: 6982A-YRHCPZW0 (Z-Wave); 6982A-YRHCPZB0 (Zigbee) This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Installation
INSTALLATION COMPONENTS AND TOOLS Included in the box. . . Interior Mounting Plate Keys Installation Instructions (with gasket) Cylinder Template Interior Escutcheon Battery Cover Latch Exterior Escutcheon Hex key Strike (2) Screw Packs (see below) 4 AA Alkaline Batteries Parts Illustrations 4 AA Alkaline Batteries Battery Cover... -
Page 5: Install Lock
INSTALL LOCK Preparation Before installing the lock on the door: Make sure door has been prepped according to specifications in template NOTE: included with lock. A. Remove the latch (Fig. A) and strike from the packaging. Both latch face and strike have adhesive-backed covers to prevent marring and should be removed upon installation. - Page 6 Install Latch 1. Install latch in door, securing with two (2) M4 x 25.4mm screws supplied (Fig. 1). (4) M4 x 25.4mm Flat Head Combination Screws 2. Install strike on the door frame, using two (2) M4 x 25.4mm Figure 1 screws supplied, making sure to allow for the latch to be centered in the strike.
- Page 7 3. From outside of door, position the exterior escutcheon by first routing the wire harness through 2-1/8" diameter hole and under the latch (Fig. 4 & 5), then inserting the through posts* and tailpiece/square drive tube into the latch (Fig. 5). Interior of Door Exterior of Door "Top"...
- Page 8 Install Exterior Escutcheon and Interior Mounting Plate 6. Holding the exterior escutcheon flush to the door, position the interior mounting plate by first routing the wire harness through the mounting plate's 1/2" rectangular hole below center hole (Fig. 9). Figure 9 Interior of Door 7.
- Page 9 Install Interior Escutcheon 9. Attach wire harness to the interior escutcheon printed circuit board (PCB) by lining up notches on top of connector to slots on PCB connector (Fig. 12 & 13). Press connector in firmly using thumbs until completely seated (properly seated position indicated by arrows on PCB as in Fig.
- Page 10 Determine Lever Handing Hinges on Right Hinges on Left Right handed Left handed lever position lever position Lever Lever Both exterior and interior lever handles should ƒ always point toward the door hinges. Determine Lever Position Before proceeding with the next step, ensure correct lever handing for proper installation. Correct "curved"...
- Page 11 Install the Exterior Lever 11. Remove clip from shank. A. Once correct handing is determined, remove the clip that has held the hub in its correct position by spreading clip ends to extract clip from shank as shown in Fig. 15. Do not rotate cam from its original position.
- Page 12 NOTE: Hex set screw should be inserted enough for lever handle to slide over shank, clearing set screw. C. Ensure that cylinder key remains in previously Hex Lever set vertical position (Fig. 19). Set Screw 14. Place exterior lever handle over shank until hole on handle aligns with set screw in shank.
- Page 13 Install the Interior Lever 18. Install hex set screw. NOTE: Thumbturn should still be in horizontal position. A. Place set screw in hole on side of shank toward latch (Fig. 22); turn set screw CW to allow for placement of lever handle over shank.
-
Page 14: Programming
PROGRAMMING Programming Features-Menus-Keys-Definitions ..........14-15 Operation ......................16-19 PROGRAMMING FEATURES - MENUS - KEYS - DEFINITIONS Exterior Interior " P " Key Phillips Head Screw Touchscreen (Return to Previous) Battery Cover Numbers Low Battery Alkaline Batteries Indicator 4 AA Type Lockout Mode Inside Indicator... - Page 15 Status Indicators Low Battery Warning Lockout Mode Return to previous step Definitions All Code Lockout Mode This feature is enabled by the Master PIN code. When enabled, it restricts all user PIN code access (except the Master PIN code). When the unit is in Lockout Mode, the red locked padlock (see above) will appear on the screen when attempting to enter a PIN code.
-
Page 16: Operation
OPERATION Lock Activation The touchscreen can be activated in several ways: Touch screen with Touch screen with fingers spread to back of hand or activate. fingers to activate. Register Master PIN Code Before Programming* 1. Touch the screen with the back of your hand or fingers to activate 2. - Page 17 To reset the lock to factory default, see the following: Reset Lock to Factory Default Reset Button The following procedure returns the lock to its factory defaults by deleting all user codes (including the Master PIN code*) and returning all programming features to their original factory default settings (see table below).
- Page 18 PIN code structure Maximum number of user PIN codes is 25. Set Up User PIN Codes User PIN Codes can only be programmed through the Master PIN Code*. 1. Touch the screen with the back of your hand or fingers to activate 2.
- Page 19 Feature Programming Through Menu Mode Using Master PIN code* 1. Touch the screen with the back of your hand or fingers to activate 2. Enter the 4-8 digit Master PIN code* followed by the key. Lock Response: “Menu mode, enter number, press the key to continue.”...
-
Page 20: Hardware Troubleshooting
MISCELLANEOUS Hardware Troubleshooting ..................20 Programming Troubleshooting ................21 Replace/Install Cylinder ..................22 Sample PIN Code Management Sheet ..............23 TROUBLESHOOTING Hardware Troubleshooting Cycle the lock in both the locked and the unlocked positions. If problems are found: Symptom Suggested Action Door is binding a. -
Page 21: Programming Troubleshooting
Programming Troubleshooting Symptom Suggested Action Lock does not respond – door is open and The touchscreen will become active when pressed with the back of hand or fingers in at least 3 areas accessible. simultaneously. Use a larger area of the hand or fingers and verify contact with at least 3 areas. If touchscreen numbers are visible, check to see if they respond when pressed. -
Page 22: Replace/Install Cylinder
Replace/Install Cylinder 1. Remove cylinder: A. Repeat previous steps for removing the exterior lever handle. B. Remove cylinder. 2. Install new cylinder: A. Insert cylinder in exterior lever. B. Insert key in cylinder; rotate the key 90° clockwise. C. Push handle in allowing holes for set screw to align. D. -
Page 23: Sample Pin Code Management Sheet
PIN CODE MANAGEMENT SAMPLE SHEET PIN Code Management (- Up to 25 Users) Location: Door Number: User User Name User # PIN Code User Type User Name User # PIN Code Master User 13 User 01 User 14 User 02 User 15 User 03 User 16... - Page 24 These materials are protected under U.S. copyright laws. All contents current at time of publication. Arrow Lock and Door Hardware, an ASSA ABLOY Group company, reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials.
