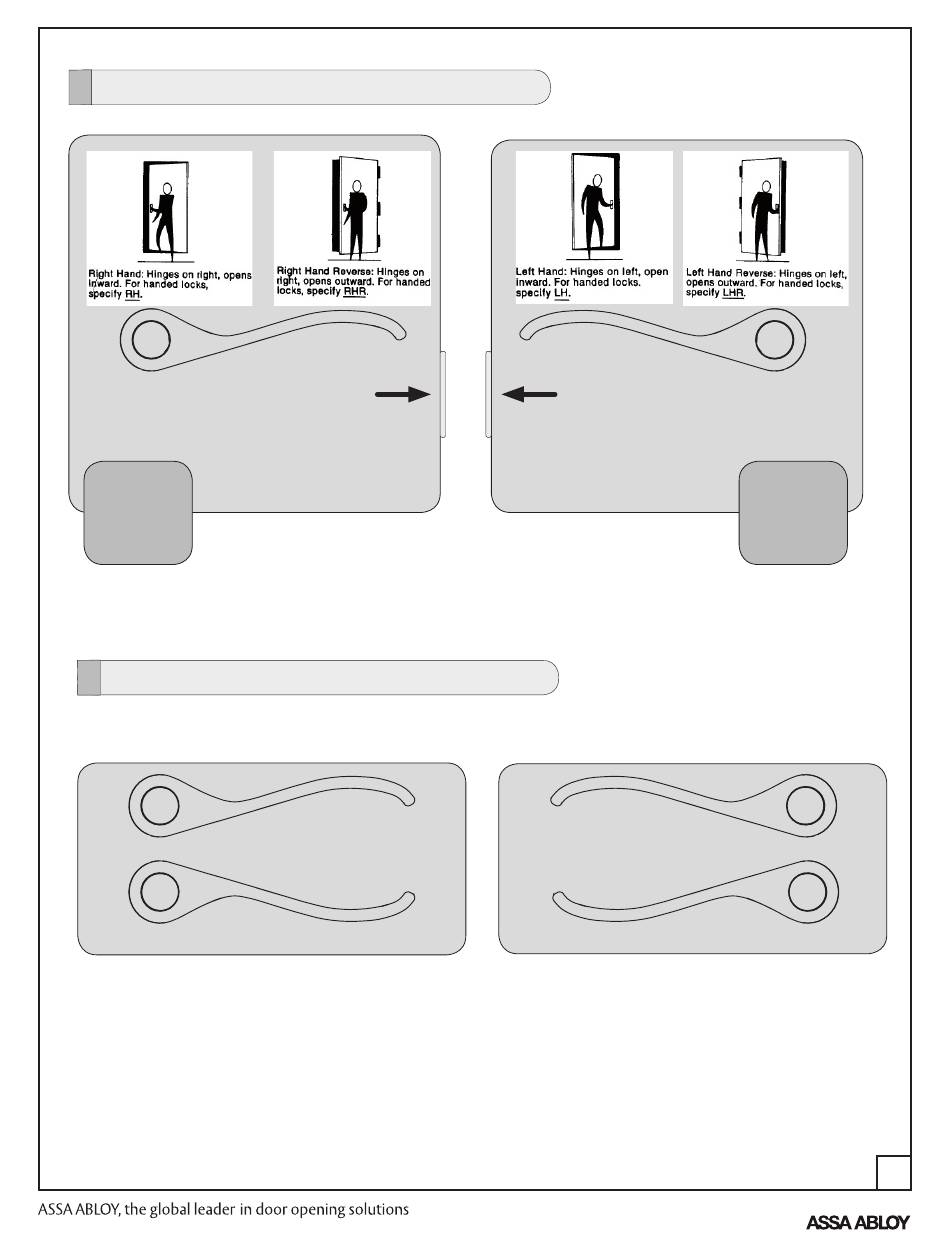

Determine Lever Handing
Hinges on Right
Right handed
lever position
RH
RHR
Lever
ƒ
Determine Lever Position
Before proceeding with the next step, ensure correct lever handing for proper installation.
Correct "curved" position
Incorrect
Important Note: Follow the detailed instructions for cylinder installation starting with step 13 on page
11 of the installation and programming manual. Next, perform the operation tests defined in step 20
on page 13 of the installation and programming manual.
Failure to install and test the cylinder for proper function may result in improper lock operation.
Both exterior and interior lever handles should
always point toward the door hinges.
Hinges on Left
Left handed
lever position
Correct "curved" position
Incorrect
LH
LHR
Lever
10
P/N LT-503200 Rev B
