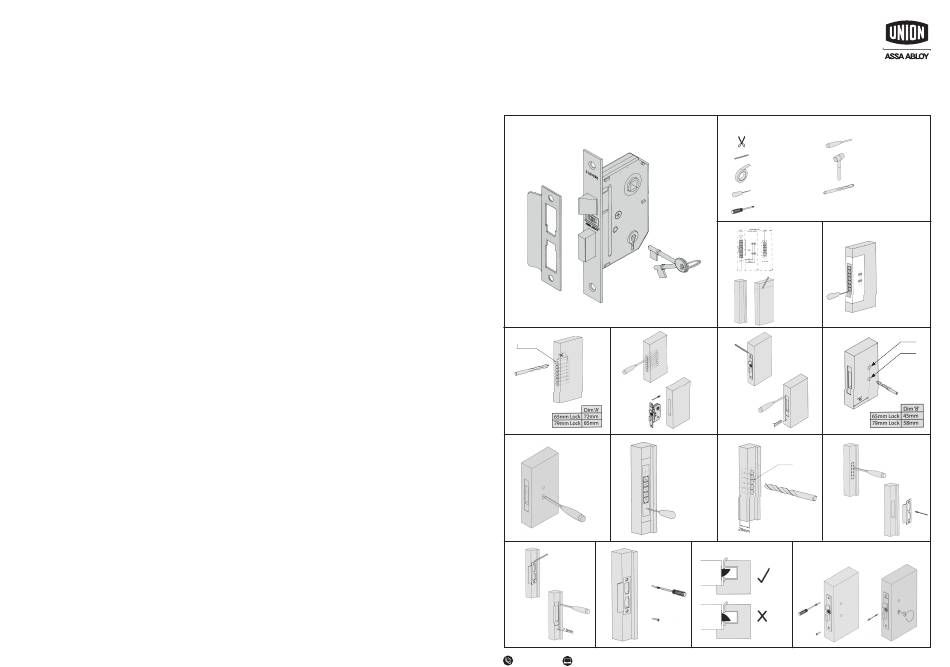

Assa Abloy UNION Essentials J-ES-SL Installation Instructions And Template

Essentials 3 lever sashlock (J-ES-SL)
installation instructions and template
General view of main parts
Sashlock
Key(s)
Strike plate
3
4a
Ø16mm
Chisel out remaining
timber between drill
holes.
4b
7 8
Chisel out remaining
timber between holes,
Secure strike plate
and remove any
sawdust. template to frame with
tape.Using a bradawl
mark all centres (+).
Then remove template.
11a 12
Strike plate to be flush
Fix into position
11b
0845 223 2124
uniononline.co.uk
Issue 2 (October 22)
Tools required
Scissors 16mm chisel
Pencil
Mallet
Masking tape
Ø10 and Ø16mm drill
Bradawl
Cross head screwdriver
1a 2
Cut out lock
templates
1b
Mark centreline of
door and frame.
At required height
mark a horizontal
line on door and
frame.
5a 6
Mark and chisel
2mm for faceplate
so it is flush.
5b
9 10a
Chisel out remaining
timber and remove
any sawdust.
Ø16mm
10b
13 14
Reverse latch if necessary before install Use remaining fixings
to install the lock into
the door.
Using the centreline
guide and height
guide, tape templates
to door.
Mark the centres of all
holes with a bradawl
then remove template.
Ø16mm
Ø10mm
