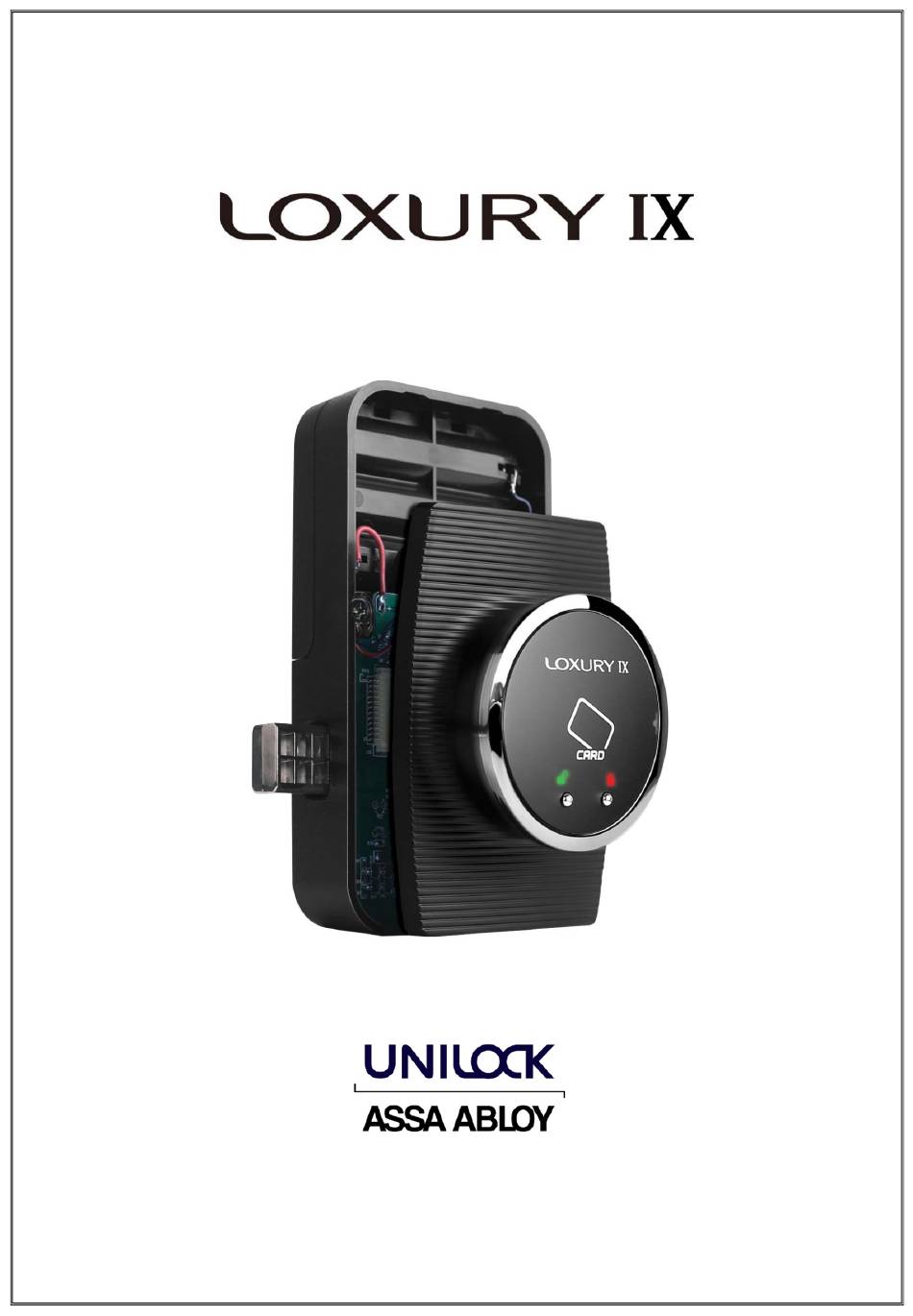

- Page 1 Model No. LL94AR- 7 2016. 02...
- Page 2 1 . Spe cific Fe a t u r e s 3 levels key (RFID tag) management system Support Mifare Classic, DESFire EV1, Ultralight Comfortable grip feeling with round handle front Intuitive hidden LED Icons Shared use mode or assigned use mode Burglar alarming when opening by force (O Warning alarms for low battery or abnormal status External 9V battery connector for low battery...
- Page 3 5 . Su ppor t e d k e y le ve ls RF key levels Max no. of RF key Owner Key Master Key User Key Cleaner Key 6 . Ch a n ge M ode Opt ion s Need to use “Lock Manager”...
- Page 4 8 . Re gist e r in g a n d Usin g RFI D k e ys LL94AR using IRDA sensor for waking up the lock from power saving mode (sleep mode). Direct sunlight or strong three wave light bulb may interfere the IRDA sensing function.
- Page 5 9 . I n st a lla t ion D r a w in gs ( For Righ t H in ge / Cove r e d D oor )
- Page 6 ( For Le ft H in ge / Em be dde d D oor )
- Page 7 1 0 . Ou t of Ba t t e r y There will be battery warning alarms, 5 beeps, if the battery is almost runs out. Standard 9 V external battery can be used to operate the lock. (No polarity on the external 9V battery contactors) ...
- Page 8 1 2 . Em e r ge n cy Ope n in g LL94AR can be unlocked without damage if the lock does not work at all. Try to open with 9V external battery before doing this emergency opening process.
- Page 9 3. Press down inside open pin with “─” driver. 4. Insert the emergency opening pin into the emergency opening hole.
- Page 10 5. Press the emergency opening pin to the right end and open the door. The lock does not work at all after this emergency opening. Return the lock to the authorized dealer for rework. [END]...
- Page 12 Power : 4.5V DC (AA 1.5 x 3) Mfr. : ASSA ABLOY KOREA Co., Ltd Unilock This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This devie may not cause harmful interference, and...
