Assa Abloy Arrow Revolution U4A-YRHCPZW0 Installation And Programming Instructions page 18

PIN code structure
Maximum number of user PIN codes is 25.
Set Up User PIN Codes
User PIN Codes can only be programmed through the Master PIN Code*.
1. Touch the screen with the back of your hand or fingers to activate
2. Enter the 4-8 digit Master PIN code followed by the
Lock Response: "Menu mode, enter number, press the
3. Enter followed by the
4. Enter followed by the
5. Enter the User Number to be registered (1-25) followed by the
6. Enter a 4-8 digit PIN code for the User number followed by the
The screen will visually confirm the PIN code just entered.
7. To continue adding users press the
8. Press the key to complete the process and conclude the programming session.
Note: When registering User codes, the code must be entered within 5 seconds or time
expires. Lock Response: "Time expired", no codes are registered and the process must
be re-started.
*Master PIN code must be registered before User PIN codes can be added.

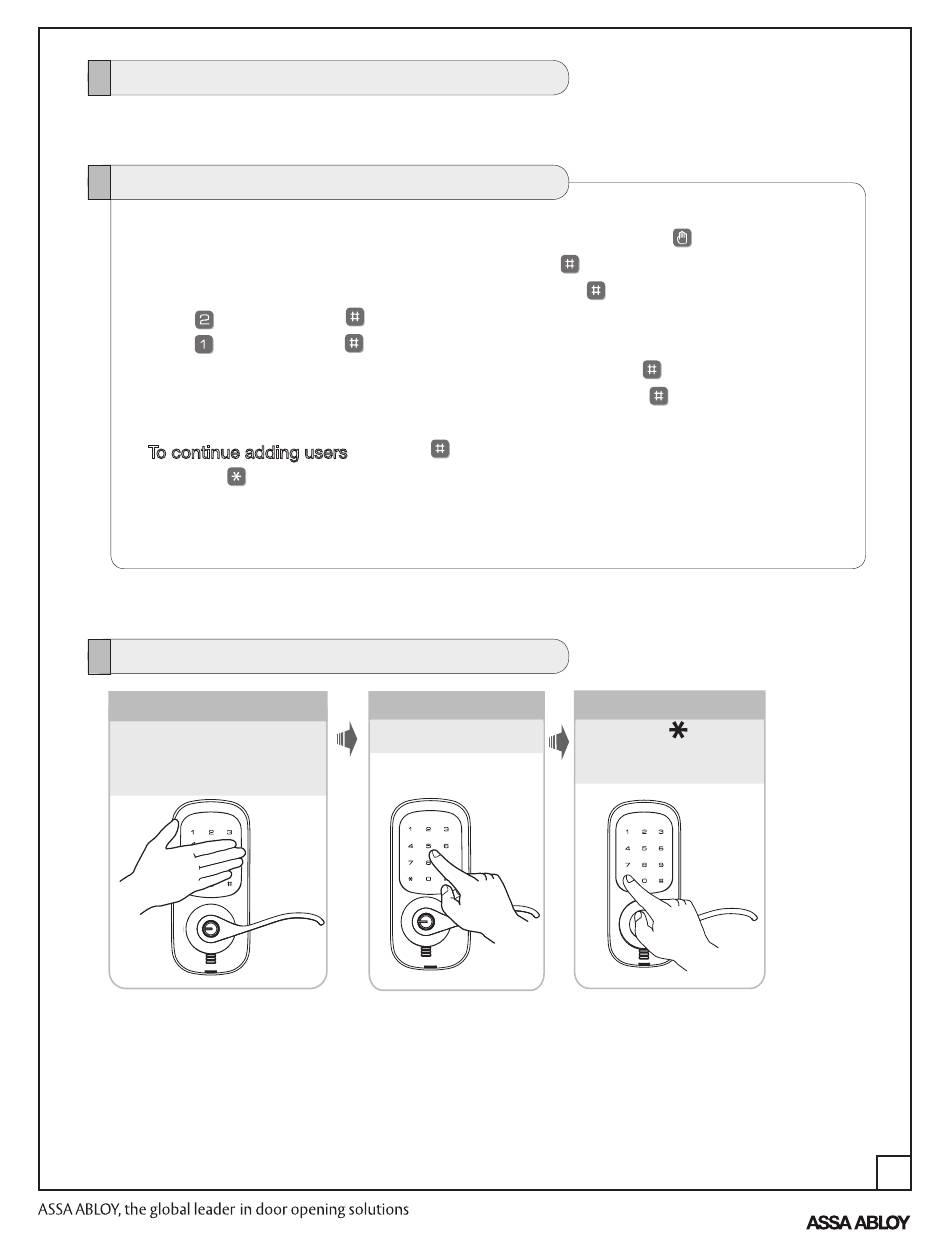

Open Door with User PIN Code
1
Touch lock with
back of hand or
fingers to activate.
key.
key.
key.
2
Enter PIN code.
.
key.
key to continue."
key.
key.
3
Press the key
to confirm the
selection.
18
P/N LT-503200 Rev B
