Assa Abloy Yale YDD724A - Assa Abloy Yale YDD724A Manual

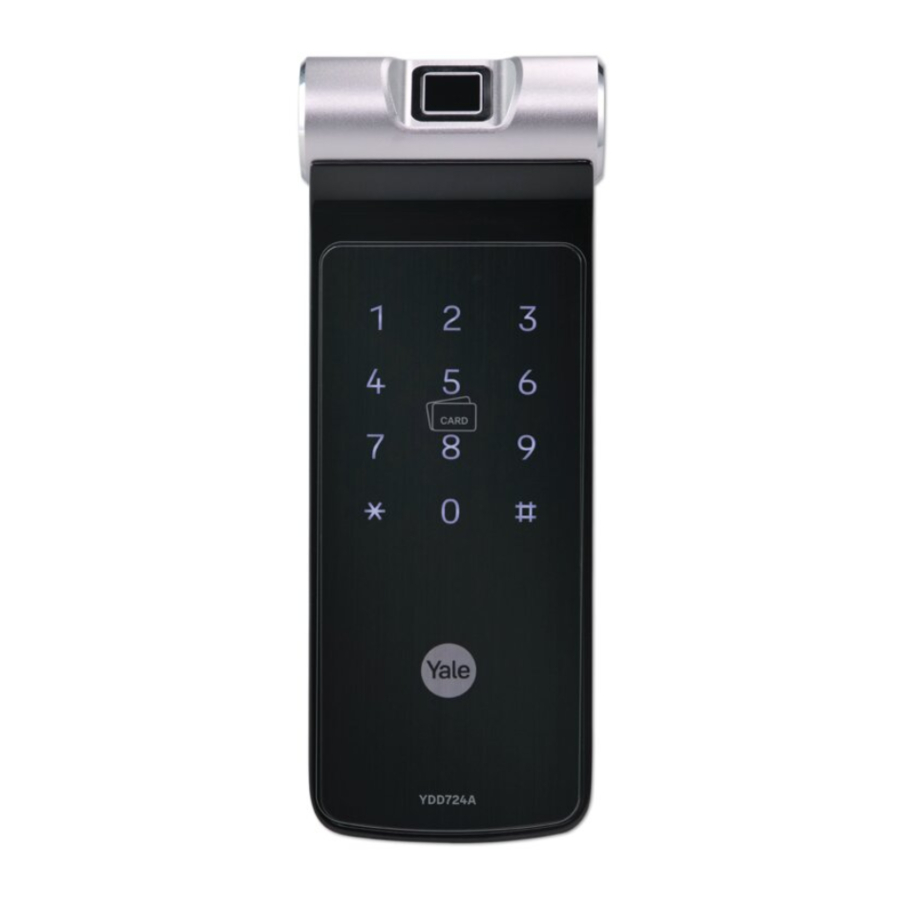

Front Body, installation on the outside of the door

	Fingerprint Sensor
	Keypad(10-key)
	RFID Key Tag reader
	Dead Bolt Jam Lamp
	Low Battery Indicator
	Emergency Power Supply Terminal (Mechanical Key)
	Emergency Power Supply Terminal (9V Emergency alkaline battery)

Basic Contents

• User Manual
• Installation Guide
• Screws
• RFID Key Tags X 4

Optional Accessories

• Remote Controller
• Remote Control Module
• Bluetooth Module

Specifications

※ Battery life may vary depending on temperature, moisture levels, frequency of use and the quality of battery used.

※ Please make sure that all parts are included when purchasing the product.

※ Optional products may not be available depending on your country or local dealer.

Main Body, installation on the inside of the door

	Registration button
	Module Accessory Slot (Optional)
	1.5V AA Alkaline Batteries (4PCS)
	Thumb turn knob
	Battery Cover
	Open / Close button

Setting Menu

Master Mode: Only a designated person who knows 'Master PIN Code' has authority to set features.

Normal Mode: If no user is assigned with master code without a designated person, anyone who knows 'User PIN Code' has authority to set features.

Visitor Code: Users with Visitor Code can only open the door with no access to change settings.

Onetime Code: The onetime code is used only once for unlocking the door lock and automatically deleted after usage.

User Slot Number: It should be 2 digits(like '01', '02'...'99', '00') and available in advanced mode.

Touch the Keypad of the Front Body with your palm to begin
	Press button on the Keypad
	Press button on the Keypad
	Press (Registration) button in every steps to start or complete the session
	Enter User Fingerprint (Up to 100 Users)
	Enter User RFID Key Tag (Up to 100 Users)
	Enter User Code (4 ~ 10 digits)
	Enter Master Code (4 ~ 10 digits)
	Enter Visitor Code (Only 4 digits)
	Enter Onetime Code (Only 4 digits)
	User Slot Number should be 2 digits (like '01'... '99' and '00': Location of 100th user slot must be assigned "00" instead of "100". )
	Rotation area to add more features

Product Features

One Touch Fingerprint Access
Secure one Touch Live fingerprint detection for personalized access. Unique Sensor not only provides high security but faster unlocking experience as well.

Yale Access App
Yale Access gives you the peace of mind of knowing who and what you love is safe - no matter where you are- just at the touch of your smartphone.

Smart Touchpad – Auto Lock
The door Locks when you touch the palm on the keypad.

3 minute Lock Out Feature
After five (5) unsuccessful attempts of an invalid code or fingerprint, RFID Key Tag lock out mode is activated for 3 minutes.

Smart Etiquette
When entering a pin code on the keypad, the user can open the door lock in silent mode.

Fake PIN Code
Security enhancement to enter any number before or after entering a password to prevent the PIN code from being exposed.

Internal Forced Lock
It is a security-enhancing function that 'disables' authentication methods such as passwords and fingerprints from outside when setting up functions indoors.

External Forced Lock
It is a security-enhancing function that an alarm goes off if someone opens door from inside when setting up functions outside.

Voice Guidance
It guides you through the operation status on how to enable various features & settings- mode for easier and more convenient use.

Other features and Benefits

• Remote Controller (Optional): This option may not be available depending on your country or local dealer.
• Network Module/Controller (Optional): It allows door lock to connect with Home network controller.
• Intrusion/Broken Alarm.
• Low Battery Alarm and Emergency Power Supply.

Normal Mode (Default Mode)

Normal mode is for convenient mode for anyone with user code to change various settings.

User Code

Only 1 User

Remote Controller

Set with registration button located on the top of remote controller. You can press it using a pin like the one shown in the image.

Please note following when pairing lock with Yale Access App.

• Depending on product type or FW version, app registration and door lock connection in normal mode may not be possible, so if registration is not possible, change from normal mode to master mode and try again.
  [App Registration in Master Mode: Master Pin Code-> R (Registration Button)-> 7 -> #]
• Because Yale Access Bluetooth App is only available in master mode, user code automatically changes to master code when registering APP in normal mode.
• Please be informed that all registered credentials will be deleted when changing mode or registering and deleting app.

Unlocking Door with Fingerprint

1. Touch the panel of finger print area sensor using registered fingerprint for 1 seconds.
2. Fingerprint scan completed
   Contact registered RFID Key Tag

Unlocking Door with Code

1. Palm touch
2. Enter the Code
3. Palm touch
   OR
   Enter the button

Unlocking Door with Smart Etiquette

Palm touch for 3sec.
Enter the User PIN Code then touch the keypad with your palm
OR
Scan Fingerprint
OR
Touch RFID Key Tag

Open/Close the door from inside

Open/Close button

Press Open/Close button.

Thumb turn knob

To open the lock, turn manual thumb turn knob from 'Close' direction to 'Open' direction.

Locking the door

Close Door from Outside

Auto Lock status:
The built-in Auto Lock sensor automatically locks a door within 5 seconds after the door was closed.

Manual Lock status:
Touch the keypad in the front body gently with your palm to lock a door.

Close Door from Inside

Auto Lock status:
The built-in Auto Lock sensor automatically locks a door within 5 seconds after the door was closed.

Manual Lock status:
Turn manual thumb turn knob to close the lock, Into 'Close' marked direction.

※ Even after a door was locked by the Auto Lock function, please check again if the door was completely closed and locked.

External Forced Lock

Enable External Forced Lock: Fingerprint

Scan with registered fingerprint and hold the fingerprint area until you hear 3 beep sounds.

Enable External Forced Lock: User Code

Palm touch
Enter the User PIN Code
Enter the button for 5 Sec.

Enable External Forced Lock: RFID Key Tag

Contact RFID key tag on [RFID key tag reader] for 5 sec. until you hear 3 beeps.

Disable External Forced Lock

When the door is unlocked from outside based upon proper authentication, the External forced lock will be released.

Internal Forced Lock

Setting

Press Open/Close button for 3 seconds until you hear "pik" beep.

Release

Method 1:
Press Open/Close button for 3 seconds until you hear "pik" beep.

Method 2:
Turn manual thumb turn knob.

※ If you try to open a door with the manual thumb turn knob from inside when the Outside Forced Lock is set, the alarm goes off.

※ If the Inside Forced Lock is set, any attempt to open a door from outside whether it's be a Fingerprint or code won't work.

Alarm

Intrusion Alarm: The alarm goes off when someone forces the door open.
For example, In case of an intrusion by opening a gap in the door while the door is locked.

Broken Alarm(Breakage Alarm): The alarm goes off when the front part is completely separated from the main set. For example, forced removal of external product (front body).

Turn off Alarm

• Enter the registered User Code.
• Scan the registered fingerprint.
• Press and hold the O/C Button for 5seconds.
• Touch the registered RFID Key Tag.

3 Minute Lock Out

All access mode from the external side are disabled for 3 minutes to deter unauthorized access.

Disable 3-minute Lock Out

• Press the Open/Close button.
• Open the door with mechanical key.
• Press button.

Unlocking Door with Fake Code

There is no limitation for digits of Fake Pin Code.

Palm touch
Enter the user code and fake code
OR
Enter the Fake Code and User code
Palm touch

Power supply

It may sustain 1 year if used 10 times a day. (Users are advised to use authentic Alkaline batteries.)

* Kindly dispose used batteries.

You must replace all 4 batteries in the following cases:

• The Low Battery LED on keypad flickers red.
• When low battery notification message is played.

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE NATIONAL CODE OR RECYCLING PROGRAM.

Emergency power supply for discharged batteries

Contact 9V battery
Palm touch
Enter the User Code and Palm touch
OR
Contact RFID Key Tag
OR
Scan fingerprint

※ In case of discharged batteries, please use 9V battery to supply power

Code Chart

Duplicate if necessary

Master Mode

Master mode is a mode in which only the administrator can set the door lock and provide access to other users. 100 users passwords, 100 users RFID key tags, 100 users fingerprint and individual registration and deletion of one-time passwords enable efficient management of visitors.

Switch to master mode (from normal mode)

※ User Slot Number should be 2 digits.
like '01'... '99' and '00': Location of 100th user slot must be assigned "00" instead of "100".

※ Voice guidance: Voice guidance features assist in easy navigation through various features.

※ All registered passwords and other credentials will be deleted when mode is changed.

※ Please install (register) the network module when you want to use a remote control or home network.

Important notes

Do not install the digital door lock in an outdoor environment.

Do not attempt to disassemble the digital door lock by yourself.

Do not spray water directly or wipe with chemicals such as benzene, gasoline or alcohol.

Do not use force with a tool onto the product.

When using, remember that someone else can see the password.

Make sure the door is closed properly when going out.

Safety and Warning

• Do not install the digital door lock in an outdoor environment.
• Do not attempt to disassemble the digital door lock by your self. By doing so, you may get an electronic shock and damage the product.
• Do not use force with a tool onto the product.
• Make sure to lock the door tight when you go out.
• Do not use water and any type of solvent to clean the product such as gasoline or benzene as they can cause damage to electronic circuit, deterioration and or paint peel-off.
• It is recommended to change User Code on a regular basis.
• In manual lock mode, make sure to double check whether the door is securely locked.
• When External Forced lock is set and unlock the door, the alarm will be activated.
• Do not use rechargeable batteries. Only alkaline batteries are recommended.
• Make sure to follow the above instructions to avoid any injuries.
• It cannot be guaranteed in a special conditions & environment such as water condensation, seaside.
• Warranty will not cover - exposure to dampness, excessive heat, excessive humidity and other extreme environmental conditions, corrosion, damage beyond repair, rusting, unauthorised modifications, unauthorised repairs, neglect, accident, alteration, acts of God, spillage of liquid or food particles.
