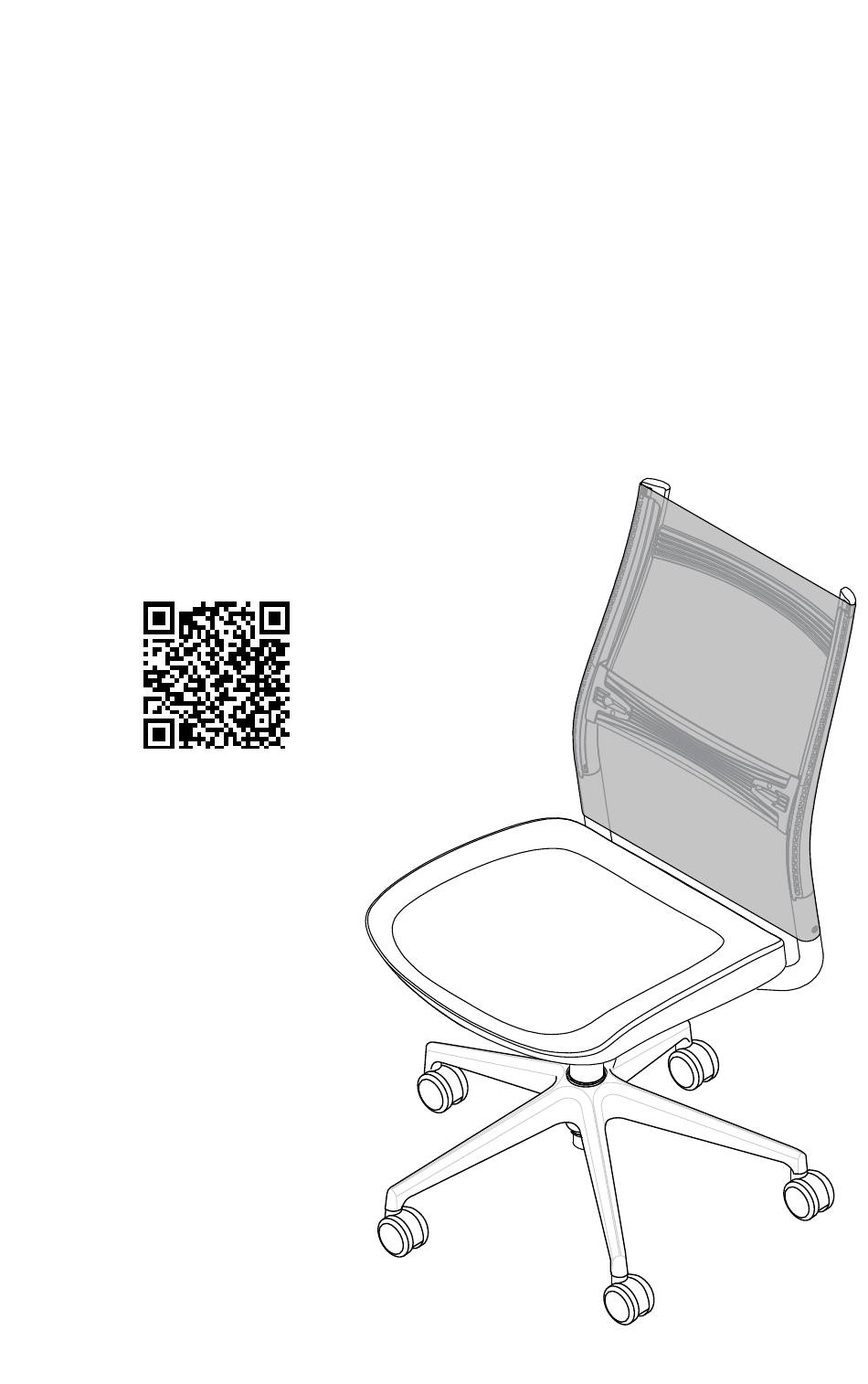

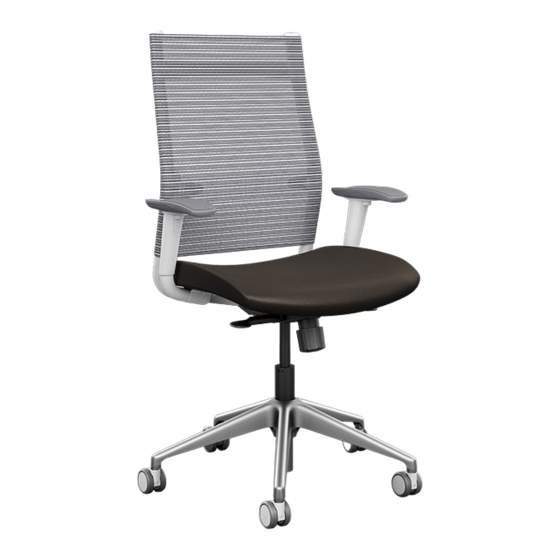

Wit – Home Edition
ASSEMBLY INSTRUCTIONS
Win with Wit.
Discover a blueprint for coziness and our
in-style solution for working at home. Wit
®
helps you zoom through meetings all day
long with a look and feel that won Gold for
Design Excellence at the ADEX Awards—
one of the largest and most prestigious
awards programs for product design.
INSTALLATION VIDEO
C6577 Rev A
|
www.sitonit.net
|
1
Advertisement
Related Manuals for SitOnit Seating Wit - Home Edition
Summary of Contents for SitOnit Seating Wit - Home Edition
- Page 1 Wit – Home Edition ASSEMBLY INSTRUCTIONS Win with Wit. Discover a blueprint for coziness and our in-style solution for working at home. Wit ® helps you zoom through meetings all day long with a look and feel that won Gold for Design Excellence at the ADEX Awards—...
- Page 2 Wit – Home Edition ASSEMBLY INSTRUCTIONS To report any issues with this product, contact our customer experience team at: (866) 764-4111 or shopcx@sitonit.net. CAUTION Please read all assembly instructions before installing. Failure to follow instructions could result in product failure or potential injury. C6577 Rev A www.sitonit.net...
- Page 3 Wit – Home Edition ASSEMBLY INSTRUCTIONS Recommended Tools • ¼" Hex L-Key ¼" Hex L-Key Red Tape Hardware kit is attached to the corrugated carton insert under the red tape. C6577 Rev A www.sitonit.net...
- Page 4 Wit – Home Edition ASSEMBLY INSTRUCTIONS Parts: Chair • Back Assembly (1) • Base Assembly (1) • Seat Assembly (1) • Cylinder (1) Seat Assembly Cylinder Back Assembly Base Assembly Parts: Mechanism (will come attached to seat) Swivel-Tilt Mechanism Standard Synchro Mechanism With Seat-Depth Adjustment •...
- Page 5 Wit – Home Edition ASSEMBLY INSTRUCTIONS Step 1: Align the back assembly with the hole pattern on the seat. For swivel-tilt mechanism. Hole Pattern Back Assembly Seat assembly should be placed on a firm flat surface for assembly. You can use the box the chair shipped in or a table for this step C6577 Rev A www.sitonit.net...
- Page 6 Wit – Home Edition ASSEMBLY INSTRUCTIONS Step 2: Secure the back assembly to the seat assembly. For swivel-tilt mechanism. Screws must be tightened to a minimum torque of 150 in-lbs. ⁄ " × 1" Screw ⁄ " Washer 1:1 HARDWARE TOOLS ¼"...
- Page 7 Wit – Home Edition ASSEMBLY INSTRUCTIONS Step 1: Slide the yoke into the mechanism's bracket and align the hole patterns. For standard synchro mechanism with seat-depth adujstment Bracket Yoke Seat assembly should be placed on a firm flat surface for assembly. You can use the box the chair shipped in or a table for this step C6577 Rev A...
- Page 8 Wit – Home Edition ASSEMBLY INSTRUCTIONS Step 2: Secure the back assembly to the seat assembly. For standard synchro mechanism with seat-depth adujstment Screws must be tightened to a minimum torque of 150 in-lbs. ⁄ " × 1" Screw ⁄ "...
- Page 9 Wit – Home Edition ASSEMBLY INSTRUCTIONS Step 3: Push the cylinder into the center of the base. Cylinder Base C6577 Rev A www.sitonit.net...
- Page 10 Wit – Home Edition ASSEMBLY INSTRUCTIONS Step 4: Align the mechanism with the cylinder and push until seated. The cylinder is seated correctly when you can lift the chair and the cylinder stays attached to the mechanism. Mechanism Cylinder C6577 Rev A www.sitonit.net...
