Summary of Contents for SitOnit Seating Prise Benching

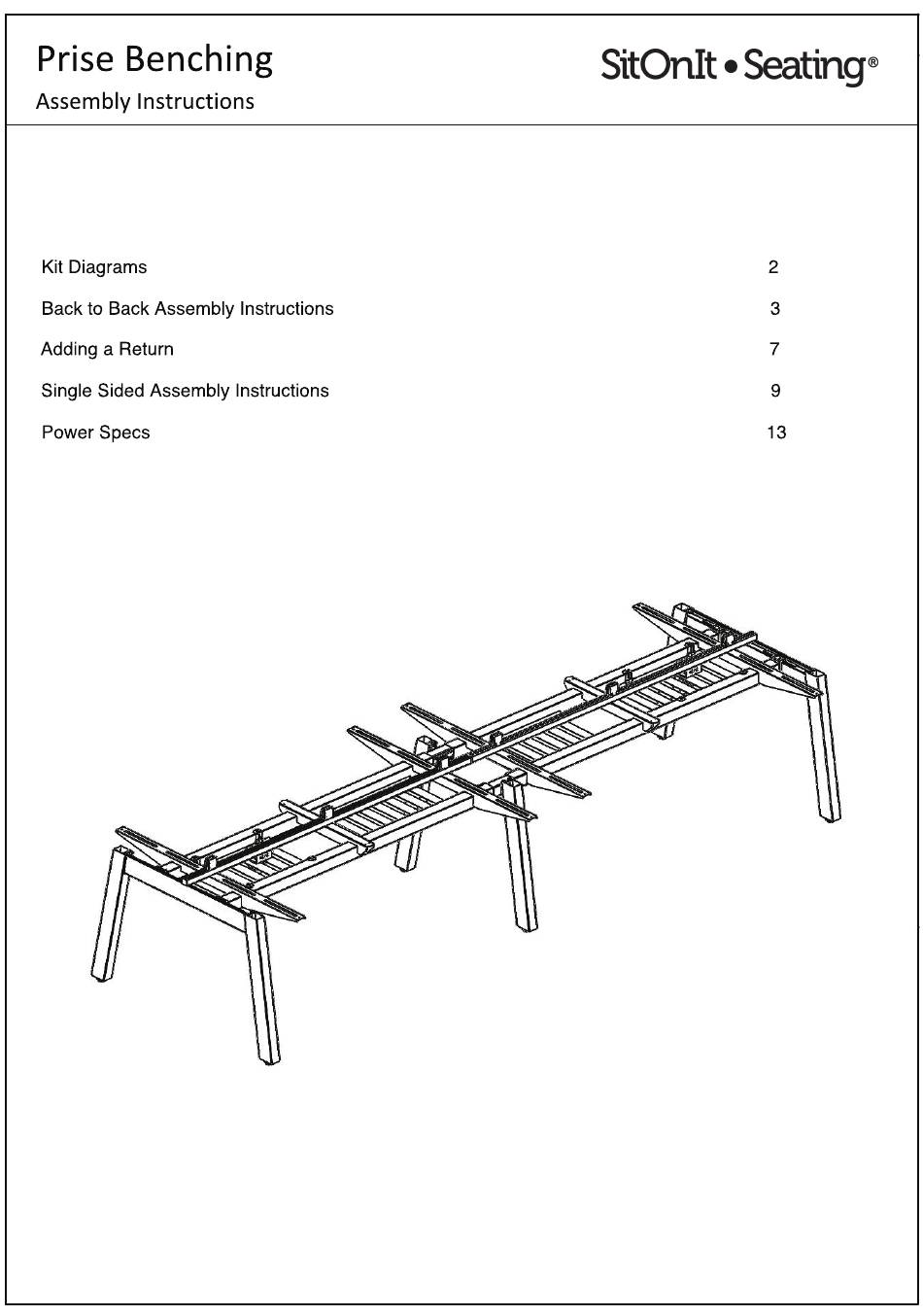

- Page 1 Table of contents...
- Page 2 Prise Benching Assembly Instructions Back to back kits PRI-BBEL Peninsula kit Single sided kits PRI-SSMt PRJ.SSTS WIRE BASKETS OPTIONAL...
- Page 3 Prise Benching Assembly Instructions (back to back) MID-BRACKET STRETCHER BRACKET CROSS TUBE CABLE TRAY CLIP EXTRUSION END CAP DIVIDER CLAMP CABLE TRAY LEG RAIL LEG RAIL COVER TOP SUPPORT-LARGE MIDDLE SUPPORT TOP GLIDE SPACER DIVIDER EXTRUSION ALLEN KEY 5/16-18 UNC SCREW...
- Page 4 Connect cross tubes (4) to mid brackets (2) Attach stretcher brackets (3) & end legs. to leg rails (9) **DONT PUT SCREWS HERE UNTIL TOP SUPPORTS ARE PLACED** Snap end covers (10) over leg rails **IMPORTANT TO USE ALL BOLTS PROVIDED**...
- Page 5 Fig. B Install large top supports (11) to cross tubes (4) as shown in Fig. A Place middle support (12) for tops 60" & greater (no hardware, simply place on cross tube) *tops less than 60" wide, do not use part #12 Drop in cable trays (8) as shown in Fig.
- Page 6 Install extrusion (14) by attaching divider mounts to top Fig. C supports as shown in Fig. C using long bolts. *center mount is not used on tops less than 60" wide IMPORTANT TO USE LONGER BOLTS HERE Install end caps on both ends of extrusions (Fig. D) Fig.
- Page 7 Prise - Sliding top installation If using sliding top function, please follow these steps. **please note that bases with returns & single sided setups will not allow sliding top function. 1. Each top needs 4 top glides. Insert glide through top support using the pre-drill pattern provided in the tops.
- Page 8 Prise Benching w/ returns If adding returns, you need the following kits: - PRI-SSEL - PRI-PK *Note that sliding top function will not work with returns...
- Page 9 Back to back typical power layout...
- Page 10 Prise Benching Assembly Instructions (single sided) STRETCHER BRACKET CROSS TUBE MID TOP SUPPORT WIRE BASKET MID LEG CONNECTOR LEG RAIL LEG RAIL COVER END TOP SUPPORT ALLEN KEY 5/16-18 UNC SCREW...
- Page 12 Install wire baskets (5) for wire management (1 or 2 per top)
- Page 13 Single sided typical power layout...
