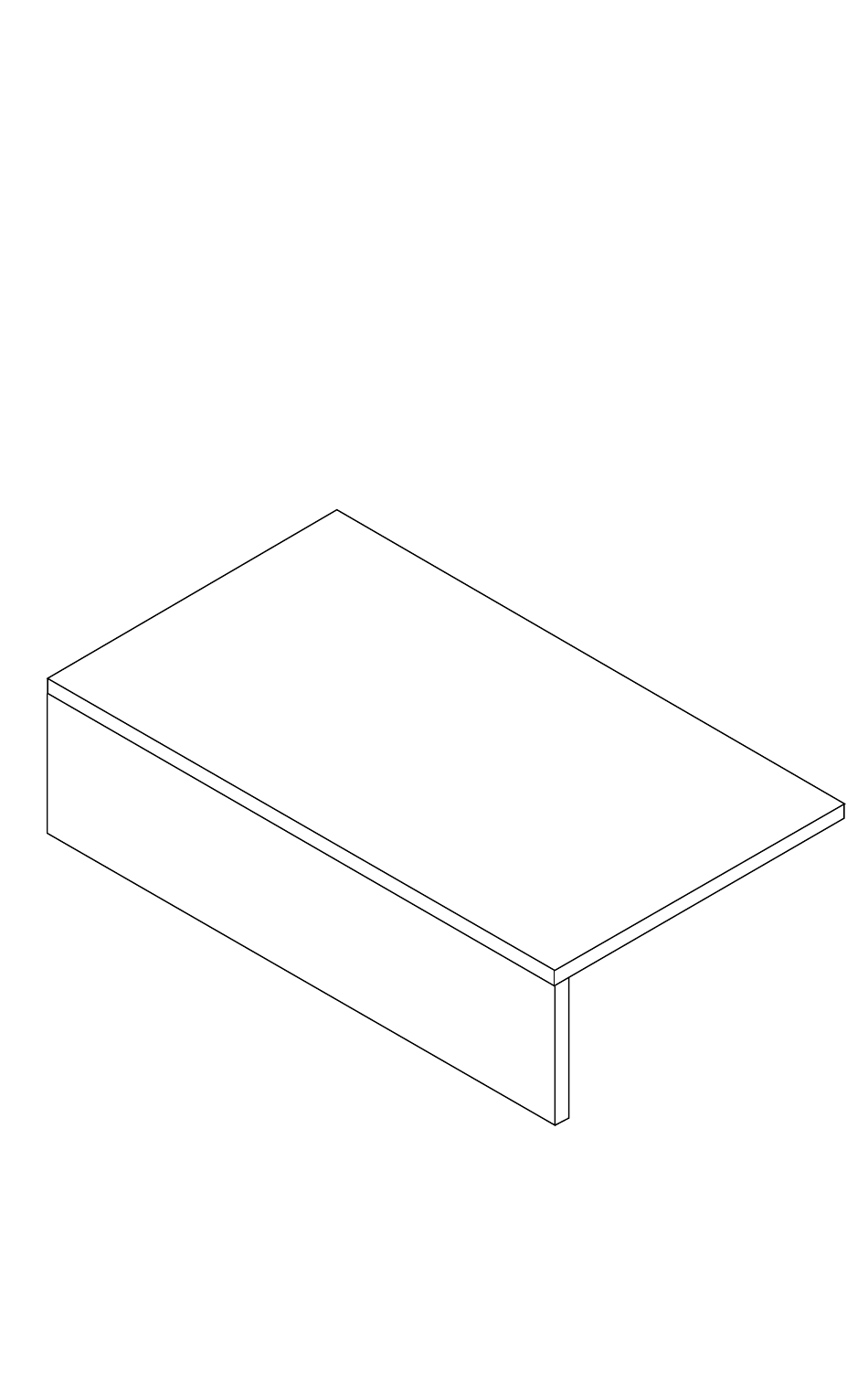

Modesty Screen
FIXED ASSEMBLY INSTRUCTIONS
We all need our own space. Increase office and employee privacy with our
selection of modesty screens that attach right onto our desks and benches.
In addition, shield cords, wires and more from sight for a clean and organized
workspace.
|
|
1
C6455 Rev C
www.sitonit.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Modesty Screen and is the answer not in the manual?

Questions and answers

Related Manuals for SitOnit Seating Modesty Screen

Summary of Contents for SitOnit Seating Modesty Screen

  • Page 1 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS We all need our own space. Increase office and employee privacy with our selection of modesty screens that attach right onto our desks and benches. In addition, shield cords, wires and more from sight for a clean and organized workspace.

  • Page 2: Recommended Tools

    Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.
  • Page 3 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Parts Laminate Screens Acrylic Screens • • Top Bracket (2) Top Bracket (2) • • #10 x ⁄ " Screw (8) #10 x ⁄ " Screw (4) • #6 Flat Washers (4) • #6 Hex Nuts (4) •...
  • Page 4 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Step 1: Position the brackets with the tabbed sides flush to the back the screen. Tabbed Side On laminate screens the top brackets should be 12" from each end of the screen. Acrylic screens require no measuring;...
  • Page 5 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Step 2 (Laminate Only): Mark the position of the top brackets and drill ½" deep pilot holes. TOOLS Pencil ⁄ " Drill Bit C6455 Rev C www.sitonit.net...
  • Page 6 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Step 3 (Laminate): Attach the top brackets to the modesty screen. 1:1 HARDWARE TOOLS #10 × ⁄ " Screw #2 Phillips Bit www.sitonit.net C6455 Rev C...
  • Page 7 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Step 3 (Acrylic): Attach the top brackets to the modesty screen. 1:1 HARDWARE #6 Flat Washer #6–32 × ¾" Screw #6 Hex Nut C6455 Rev C www.sitonit.net...
  • Page 8 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Step 4: Position the screen over the underside of the tabletop. Mark the position of the top brackets and drill ½" deep pilot holes. TOOLS Pencil ⁄ " Drill Bit www.sitonit.net C6455 Rev C...
  • Page 9 Modesty Screen FIXED ASSEMBLY INSTRUCTIONS Step 5: Attach the top brackets to the underside of the tabletop. 1:1 HARDWARE TOOLS #10 x ⁄ " Screw #2 Phillips Bit C6455 Rev C www.sitonit.net...
  • Page 10 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS We all need our own space. Increase office and employee privacy with our selection of modesty screens that attach right onto our desks and benches. In addition, shield cords, wires and more from sight for a clean and organized workspace.
  • Page 11 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Parts Laminate Screens Acrylic Screens • • Top Bracket (2) #6 Flat Washers (4) • • #10 x ⁄ " Screw (8) #6 Hex Nuts (4) • #6–32 × ¾" Screws (4) • #6 Split Lock Washers (Discard)
  • Page 12 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 1: Position the bottom brackets so that they're flush with the back of the screen. On laminate screens the top brackets should be 12" from each end of the screen. Acrylic screens require no measuring;...
  • Page 13 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 2 (Laminate Only): Mark the position of the top brackets and drill ½" deep pilot holes. TOOLS Pencil ⁄ " Drill Bit C6455 Rev C www.sitonit.net...
  • Page 14 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 3 (Laminate): Attach the bottom brackets to the modesty screen. 1:1 HARDWARE TOOLS #10 × ⁄ " Screw #2 Phillips Bit www.sitonit.net C6455 Rev C...
  • Page 15 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 3 (Acrylic): Attach the bottom brackets to the modesty screen. 1:1 HARDWARE #6 Flat Washer #6–32 × ¾" Screw #6 Hex Nut C6455 Rev C www.sitonit.net...
  • Page 16 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 4: Attach the bottom brackets through the tabbed side of the top brackets. Position the bracket assembly on the underside of the table surface. Mark where the top brackets will attach. Detach the bottom brackets from the top brackets before step 5.
  • Page 17 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 5: Mark the location of the top bracket's holes and drill ½" deep pilot holes into the underside of the tabletop. TOOLS Pencil ⁄ " Drill Bit C6455 Rev C www.sitonit.net...
  • Page 18 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 6: Attach the top brackets to the underside of the tabletop. 1:1 HARDWARE TOOLS #10 × ⁄ " Screw #2 Phillips Bit www.sitonit.net C6455 Rev C...
  • Page 19 Modesty Screen HINGED ASSEMBLY INSTRUCTIONS Step 7: With the tabletop right-side up, hang the screen, inserting the bottom brackets into the top brackets. C6455 Rev C www.sitonit.net...
