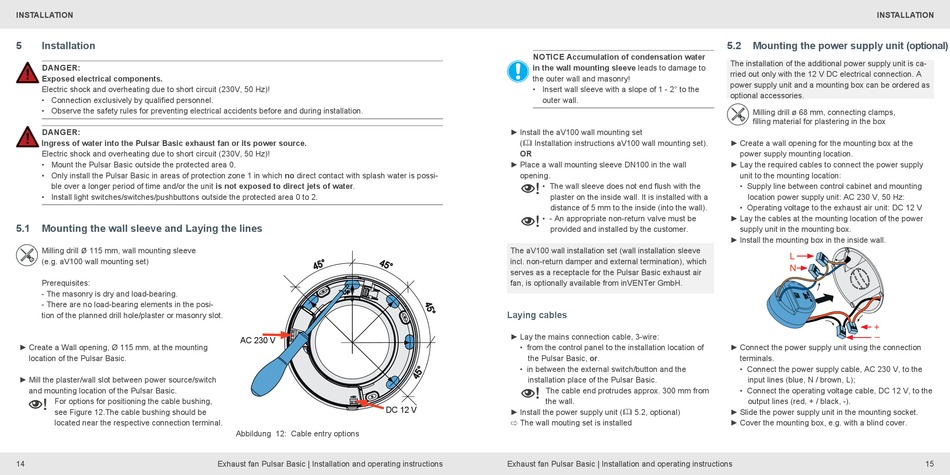

INSTALLATION

5 Installation
DANGER:
Exposed electrical components.
Electric shock and overheating due to short circuit (230V, 50 Hz)!
• Connection exclusively by qualified personnel.
• Observe the safety rules for preventing electrical accidents before and during installation.
DANGER:
Ingress of water into the Pulsar Basic exhaust fan or its power source.
Electric shock and overheating due to short circuit (230V, 50 Hz)!
• Mount the Pulsar Basic outside the protected area 0.
• Only install the Pulsar Basic in areas of protection zone 1 in which no direct contact with splash water is possi-
ble over a longer period of time and/or the unit is not exposed to direct jets of water.
• Install light switches/switches/pushbuttons outside the protected area 0 to 2.
5.1

Mounting the wall sleeve and Laying the lines

ø
Milling drill 115 mm, wall mounting sleeve
(e.g. aV100 wall mounting set)
Prerequisites:
- The masonry is dry and load-bearing.
- There are no load-bearing elements in the posi-
tion of the planned drill hole/plaster or masonry slot.
► Create a Wall opening, Ø 115 mm, at the mounting
location of the Pulsar Basic.
► Mill the plaster/wall slot between power source/switch
and mounting location of the Pulsar Basic.
!
For options for positioning the cable bushing,
see Figure 12.The cable bushing should be
located near the respective connection terminal.
14
AC 230 V
DC 12 V
Abbildung 12: Cable entry options
Exhaust fan Pulsar Basic | Installation and operating instructions
NOTICE Accumulation of condensation water
in the wall mounting sleeve leads to damage to
the outer wall and masonry!
• Insert wall sleeve with a slope of 1 - 2° to the
outer wall.
► Install the aV100 wall mounting set
( Installation instructions aV100 wall mounting set).
OR
► Place a wall mounting sleeve DN100 in the wall
opening.
!
• The wall sleeve does not end flush with the
plaster on the inside wall. It is installed with a
distance of 5 mm to the inside (into the wall).
!
• - An appropriate non-return valve must be
provided and installed by the customer.
The aV100 wall installation set (wall installation sleeve
incl. non-return damper and external termination), which
serves as a receptacle for the Pulsar Basic exhaust air
fan, is optionally available from inVENTer GmbH.
Laying cables
► Lay the mains connection cable, 3-wire:
• from the control panel to the installation location of
the Pulsar Basic, or.
• in between the external switch/button and the
installation place of the Pulsar Basic.
!
The cable end protrudes approx. 300 mm from
the wall.
► Install the power supply unit ( 5.2, optional)
The wall mouting set is installed

Exhaust fan Pulsar Basic | Installation and operating instructions
INSTALLATION
5.2

Mounting the power supply unit (optional)

The installation of the additional power supply unit is ca-
rried out only with the 12 V DC electrical connection. A
power supply unit and a mounting box can be ordered as
optional accessories.
Milling drill ø 68 mm, connecting clamps,
filling material for plastering in the box
► Create a wall opening for the mounting box at the
power supply mounting location.
► Lay the required cables to connect the power supply
unit to the mounting location:
• Supply line between control cabinet and mounting
location power supply unit: AC 230 V, 50 Hz:
• Operating voltage to the exhaust air unit: DC 12 V
► Lay the cables at the mounting location of the power
supply unit in the mounting box.
► Install the mounting box in the inside wall.
► Connect the power supply unit using the connection
terminals.
• Connect the power supply cable, AC 230 V, to the
input lines (blue, N / brown, L);
• Connect the operating voltage cable, DC 12 V, to the
output lines (red, + / black, -).
► Slide the power supply unit in the mounting socket.
► Cover the mounting box, e.g. with a blind cover.
