PREPARING FOR INSTALLATION

3 Preparing for installation
3.1 Installation conditions
Electrical protection areas according to VDE 0100
DANGER:
Ingress of water into the Pulsar Basic exhaust
fan or its power source.
Electric shock and overheating due to short circuit
(230V, 50 Hz)!

• Mount the Pulsar Basic outside the protected
area 0.
• Only install the Pulsar Basic in areas of pro-
tection zone 1 in which no direct contact with
splash water is possible over a longer period of
time and/or the unit is not exposed to direct
jets of water.
• Install light switches/switches/pushbuttons
outside the protected area 0 to 2.
600
Bereich 1
Bereich 2

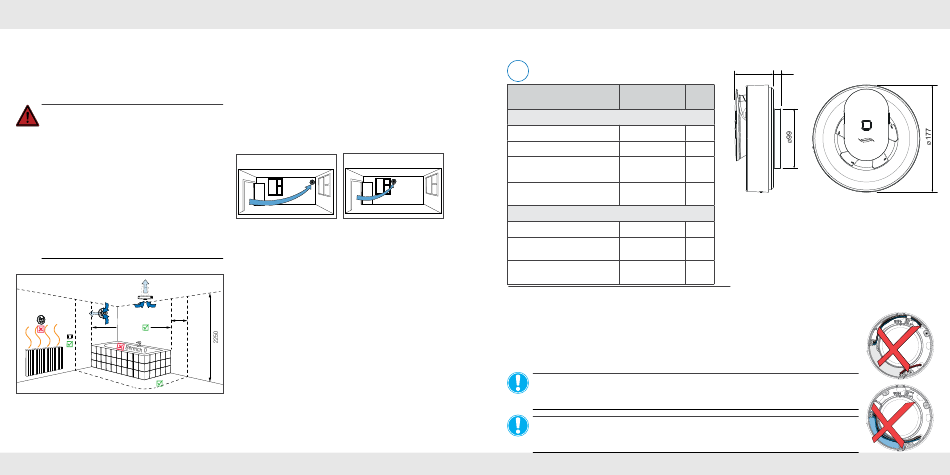

Abbildung 2: Overview electrical protection areas in the
bathroom
8
Positioning of the Pulsar Basic
• Install the Pulsar Basic exhaust fan in the air volume
flow of the room to ensure optimum humidity discharge
and reliable readings from the humidity sensor.


Abbildung 3: Correct/Incorrect positioning
• Do not place the ventilation unit above radiators, room
thermostats and/or sensitive furniture.
• Ensure that there is sufficient air supply in the room.
Cable cross sections
• Supply line, AC 230 V, 50 Hz:
Cable cross-section 1.5 mm²
• Operating voltage to exhaust air unit, DC 12 V,
Cable cross-section max. 1.5 mm²
• Capacity of connection terminals on exhaust air unit:
max. 1.5 mm²
Exhaust fan Pulsar Basic | Installation and operating instructions
3.2 4.1

Dimensions

i
Keep a minimum distance of 250 mm from
components at the front and all around.
Depth/ Lenght
Designation
[mm]
Wall openings (drill holes):
Masonry (wall sleeve ) Wall thickness
1
Intermediate ceiling Wall thickness

Flush-mounting box
66
power supply unit
1)
Cavity wall box power
61
supply unit
1)
Mounting elements:
Exhaust fan Pulsar Basic 81
Wall mounting sleeve
Wall thickness
DN 100
1)
Power supply unit
1)
32
(12V DC)
aV100 wall mounting set (wall sleeve incl. weather protection hood), power
1)
supply unit and mounting boxes are available from inVENTer GmbH.
4

Electrical connection

The Pulsar Basic exhaust fan can be connected directly to the AC 230 V mains or operated with
protective extra-low voltage 12 V DC (SELV). A power supply unit is optionally available.
NOTICE With simultaneous connection of 230 V AC and 12 V DC,
Damage to the Pulsar Basic exhaust fan!
• Never connect the Pulsar Basic exhaust fan to 230 V AC and 12 V DC at the same time.
NOTICE Laying the power supply cable over the cover of the circuit board
will damage the circuit board and impair the function of the Pulsar Basic!
• Do not lay the AC 230 V mains connection cable over the circuit board.
Exhaust fan Pulsar Basic | Installation and operating instructions
ELECTRICAL CONNECTION
4.2 3.3

Dimensional drawings

60 21
Ø
[mm]
115
105
68
68
Abbildung 4: Positioning of the Pulsar Basic
177
100
54
